5G-DPOP: eBPF-Based UPF Data Plane Observability Platform

Note

Author: Yu-Chen Chan
Date: 2026/02/11

1. Introduction

In the 5G Core Network architecture, the User Plane Function (UPF) handles user data-plane packet forwarding. However, the UPF's packet-processing logic runs in Linux kernel space through the gtp5g kernel module, making its internal behavior difficult to observe with traditional user-space monitoring tools.

When network issues occur, engineers often face the following challenges:

  • Packet loss is hard to trace: It is often unclear where a packet was dropped and why.
  • Traffic statistics lack context: Interface-level counters cannot identify individual UE or GTP tunnel traffic.
  • Session correlation is difficult: Traffic is hard to associate with a specific PDU session or UE.

5G-DPOP (Data Plane Observability Platform) brings that hidden processing path into view by attaching eBPF programs to key functions in the gtp5g kernel module:

  • Real-time traffic monitoring: Show how much UE traffic passes through the user plane in each direction.
  • Packet-drop visibility: Turn gtp5g drop signals into structured events with a reason and available packet context.
  • PFCP session correlation: Connect observed traffic to the PDU session and forwarding rules that explain it.
  • Network topology visualization: Present both direct UE → gNB → UPF → DN paths and multi-UPF N9 paths.

2. System Architecture

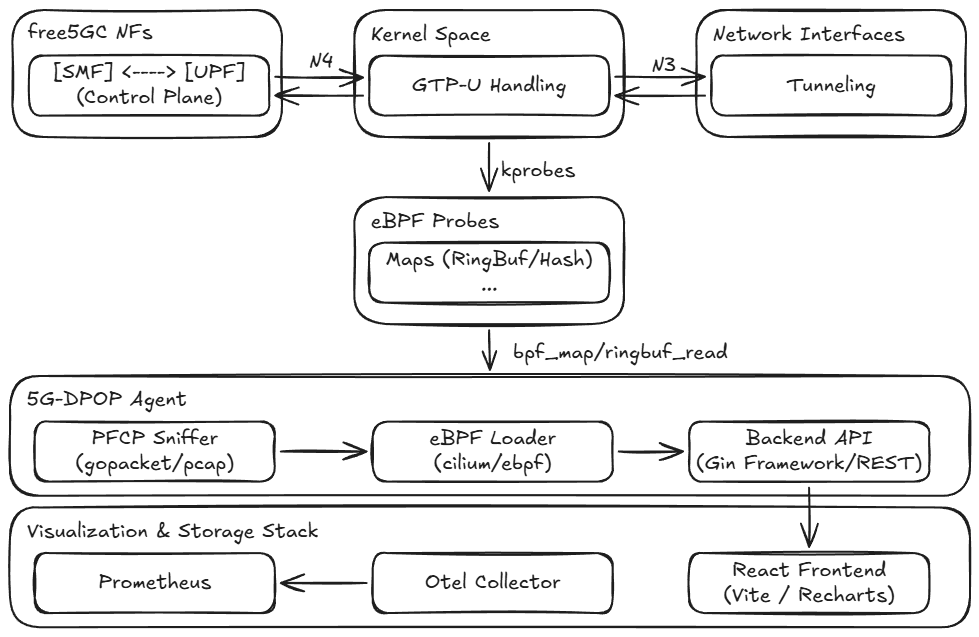

System Architecture

Figure 1. 5G-DPOP system architecture

Each component answers a different operational question: what happened in the kernel, which session it belongs to, how the data should be delivered, and how an operator can explore it.

Component Tech Stack Description Port
eBPF Agent Go + cilium/ebpf Load eBPF programs, read kernel maps, and export metrics 9100
PFCP Sniffer Go + gopacket Capture PFCP messages and build session and forwarding-rule correlations UDP 8805 (observed)
API Server Go + Gin Provide REST APIs and WebSocket updates 8080
Web Frontend React + TypeScript + Vite Provide the visualization dashboard 3000
Prometheus Docker Optional time-series metrics storage 9090
Otel Collector Docker Optional OpenTelemetry collector 4317

2.1 eBPF Agent

The eBPF Agent observes the points where gtp5g receives, forwards, or rejects traffic. This gives the rest of the platform direct evidence from the UPF data path instead of treating the kernel module as a black box.

Hook Mechanism

The following hooks provide complementary views of forwarding and failure:

Hook Point Function Name Purpose
Uplink Entry gtp5g_encap_recv Measure GTP-U traffic arriving from a gNB or an upstream UPF
Downlink Exit gtp5g_dev_xmit Measure traffic entering gtp5g for tunnel transmission
Primary Drop Hook gtp5g_trace_drop Preserve the explicit reason reported by gtp5g
Uplink PDR Lookup pdr_find_by_gtp1u Show whether an uplink TEID resolves to a PDR
Downlink PDR Lookup pdr_find_by_ipv4 Show whether a downlink UE address resolves to a PDR

The compatible gtp5g-DPOP module adds gtp5g_trace_drop so that an internal forwarding decision can become an observable event. Its reason code and available packet context are delivered through a ring buffer, giving the dashboard enough evidence to explain the failure without presenting unrelated kernel activity as a UPF drop.

BPF Maps

BPF maps bridge the kernel and user-space parts of the platform. Counters remain efficient on the packet path, while event maps carry the context needed for session and topology correlation.

Map Type Name Purpose
PERCPU_ARRAY traffic_stats Store uplink/downlink counters without adding a shared lock to the packet path
RINGBUF drop_events Deliver structured drop events to user space
RINGBUF packet_events Send packet metadata used for traffic and path correlation
HASH teid_session_map Connect a TEID to the session context learned from PFCP
HASH teid_stats Per-TEID traffic statistics
HASH ue_ip_stats Per-UE IP traffic statistics

Packet Drop Reason Codes

The drop reason code turns a generic packet-loss symptom into an actionable category. The following examples cover routing, rule lookup, policy, and transmission failures:

Code Name Description
3 NO_ROUTE No route to destination
6 NO_PDR No matching PDR rule found
8 UL_GATE_CLOSED Uplink QoS Gate closed
9 DL_GATE_CLOSED Downlink QoS Gate closed
14 IP_XMIT_FAIL IP layer transmission failed

2.2 PFCP Sniffer

eBPF shows what happened to a packet; PFCP explains which session and forwarding policy the packet belongs to. By observing N4 messages between the SMF and UPF, the PFCP Sniffer adds UE, tunnel, PDR, FAR, and path context to the raw data-plane events.

Monitored PFCP Message Types

Message Type Purpose
Session Establishment Request/Response Create the observed session and extract F-SEID, F-TEID, and UE IP evidence
Session Modification Request/Response Update forwarding rules, tunnel identifiers, and session state
Session Deletion Request/Response Remove the session and its related correlations

Session Data Structure

A session must keep protocol identifiers, topology evidence, counters, and state separate so that one value is never presented as another. The following excerpt shows how those views are brought together:

type Session struct {
    SEID          uint64   // Internal observation key; not a PFCP SEID
    CPSEID        uint64   // Control-plane F-SEID
    UPSEID        uint64   // User-plane F-SEID
    UEIP          net.IP
    UPFIP         net.IP
    UPFN3IP       net.IP
    GNBIP         net.IP
    N9PeerIP      net.IP
    TEIDs         []uint32
    DNN           string
    QFI           uint8
    FlowRules     []FlowRule

    BytesUL, BytesDL     uint64
    PacketsUL, PacketsDL uint64

    EstablishmentStatus string
    DataPlaneStatus     string
}

This separation ensures that the dashboard presents each protocol identifier only when it was observed, while the internal SEID key simply keeps related records organized.

Session State Tracking

The session state distinguishes an incomplete signalling procedure from a working tunnel or an idle data plane:

  • Pending: A Session Establishment Request was observed and is waiting for confirmation.
  • Established: A successful Session Establishment Response or a later Session Modification was observed.
  • Failed: The pending session timed out without successful confirmation.

2.3 API Server

The API Server turns low-level observations into a stable contract for the dashboard. REST endpoints expose detailed records, while WebSocket updates keep the overview responsive during live traffic.

REST API Endpoints

Endpoint Description
GET /api/v1/health Health check
GET /api/v1/sessions Get all PDU Sessions
GET /api/v1/topology Get network topology
GET /api/v1/metrics/traffic Get traffic statistics

WebSocket Streaming

The API Server refreshes traffic, drop, and session summaries from the Agent and broadcasts an updated view every second. This allows an operator to watch new traffic or a drop appear without manually refreshing the page.

2.4 Data Flow

Reading the architecture from kernel to browser shows how a forwarding event becomes information an operator can act on:

Kernel Space:

  1. The gtp5g module processes GTP-U packets.
  2. eBPF hooks capture traffic, lookup, and drop evidence at the relevant processing points.
  3. BPF maps and ring buffers carry counters and events to user space.

User Space:

  1. The PFCP Sniffer adds session and forwarding-rule context.
  2. The eBPF Agent correlates that context with kernel observations and exports live data.
  3. The API Server builds session, traffic, drop, and topology responses.
  4. The Web Frontend turns those responses into an interactive operational view.

3. Feature Demonstration

3.1 Real-time Traffic Monitoring

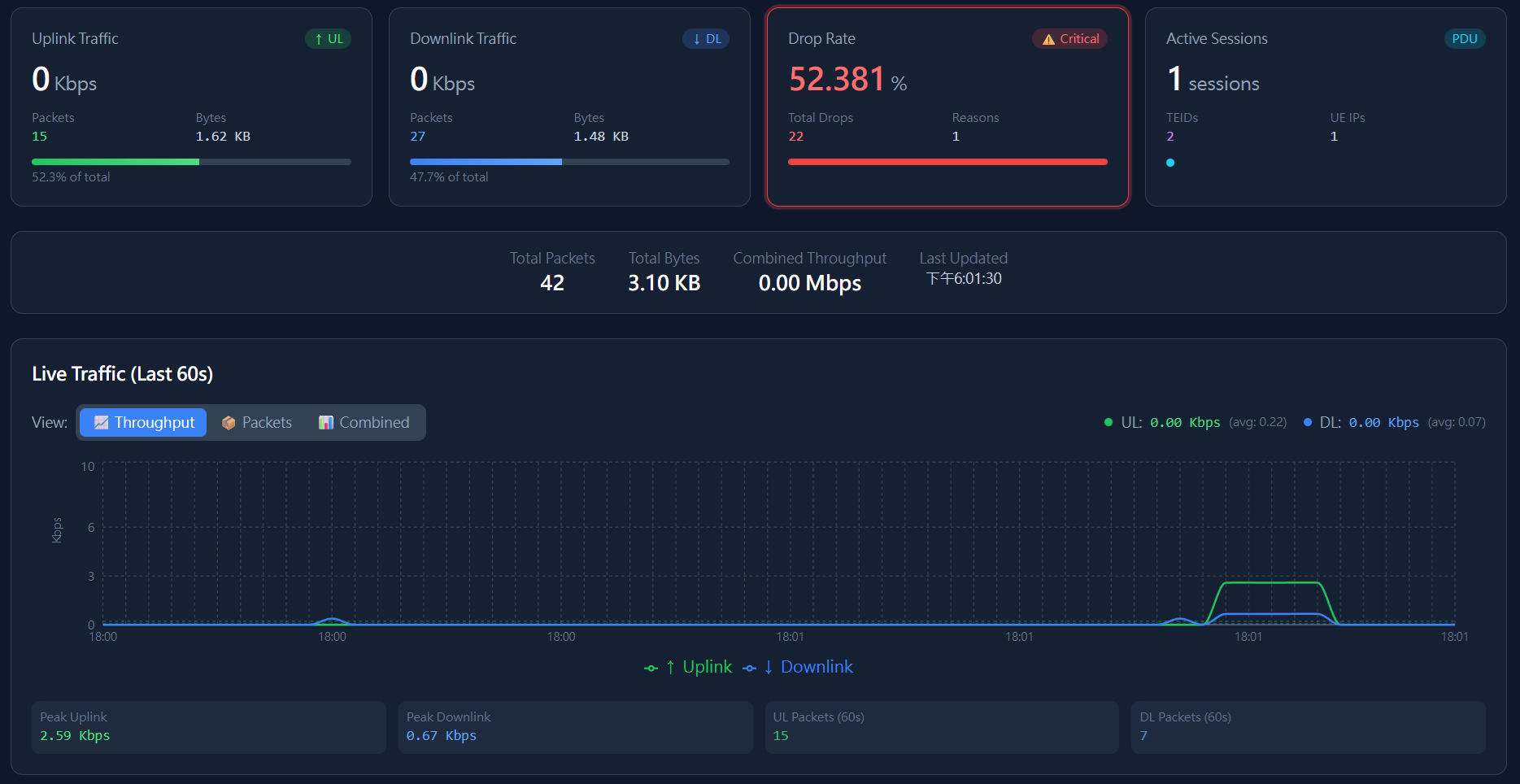

The dashboard makes uplink and downlink behavior visible while a ping, download, or application flow is running. Packet and byte trends help an operator see whether traffic reaches the UPF and whether both directions are active.

Traffic Monitoring

Figure 2. Real-time traffic monitoring charts

3.2 PDU Session Information

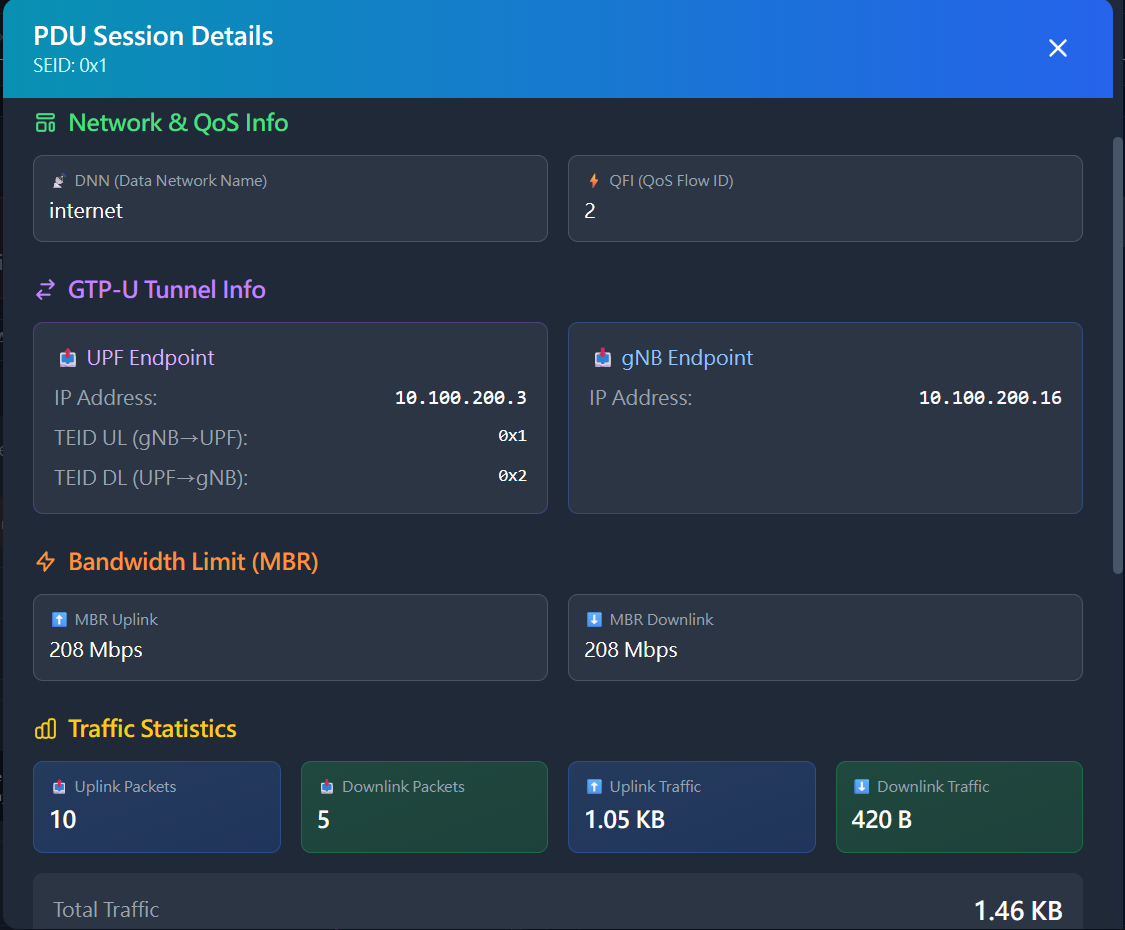

The session view answers a practical question: which tunnel and forwarding rules belong to this UE traffic? It keeps the observation ID, CP F-SEID, UP F-SEID, local F-TEID, and outer-header TEID distinct, and displays each protocol identifier only when the corresponding PFCP evidence was captured.

Session Details

Figure 3. PDU session details

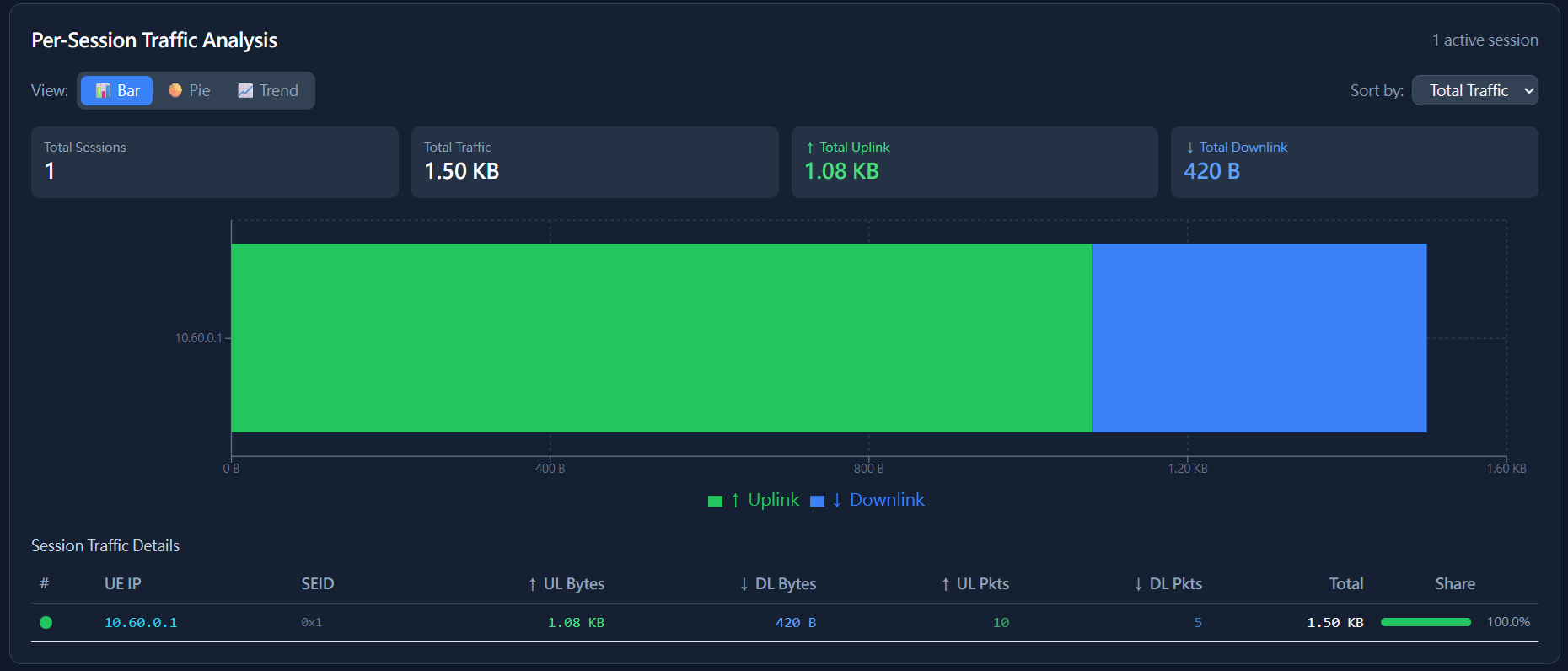

Per-session traffic statistics provide a focused view of the traffic attributed to each observed session:

Per-Session Traffic

Figure 4. Per-session traffic statistics

3.3 Network Topology Visualization

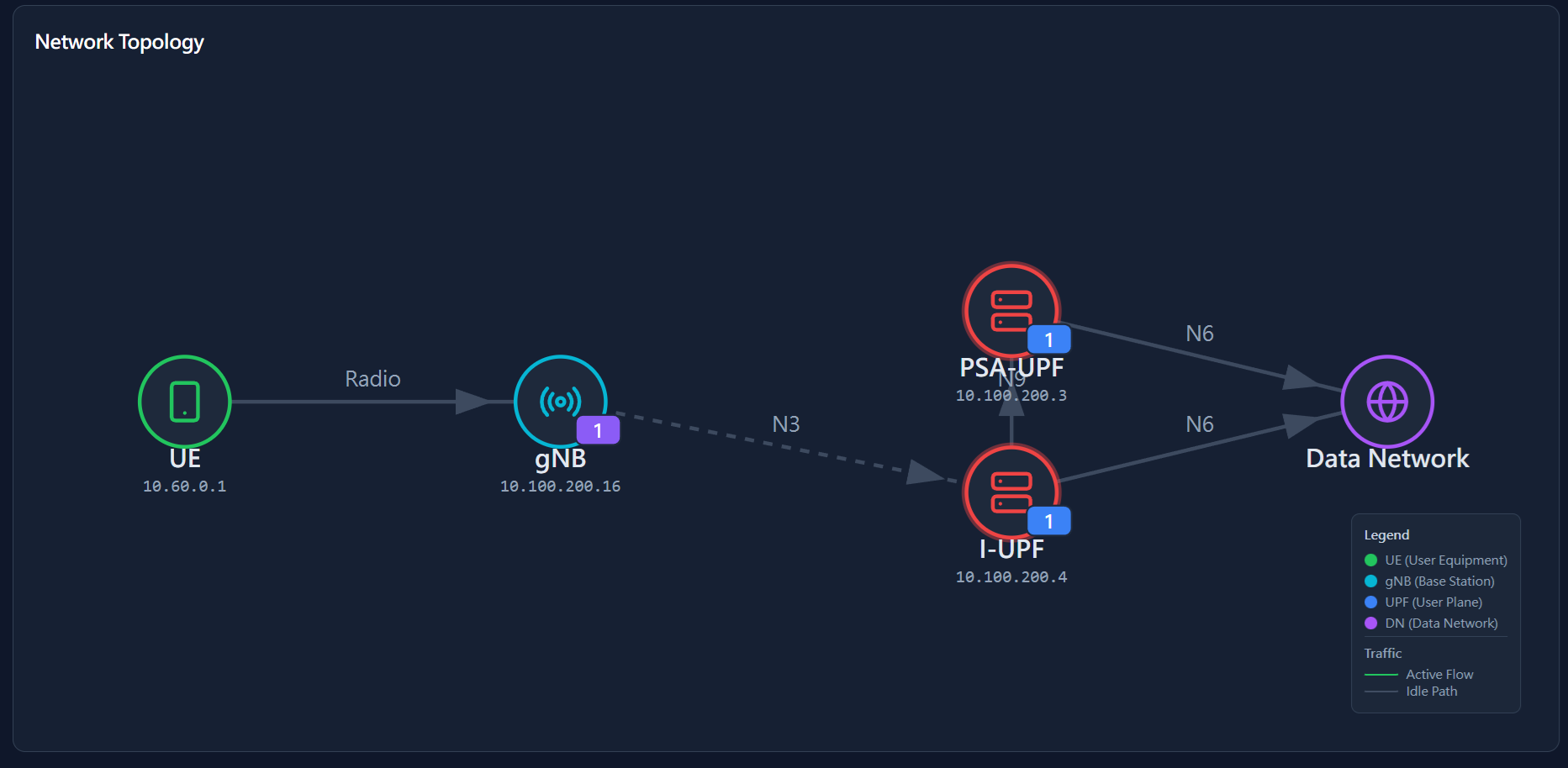

The topology view turns the same evidence into an end-to-end route through UE, gNB, UPF, N3, N9, N6, and DN nodes. Because UPF roles and DN selectors come from observed forwarding behavior, the visualization can adapt to single-UPF and ULCL deployments without changing the frontend for each topology.

Network Topology

Figure 5. Evidence-derived network topology

3.4 Packet Drop Detection

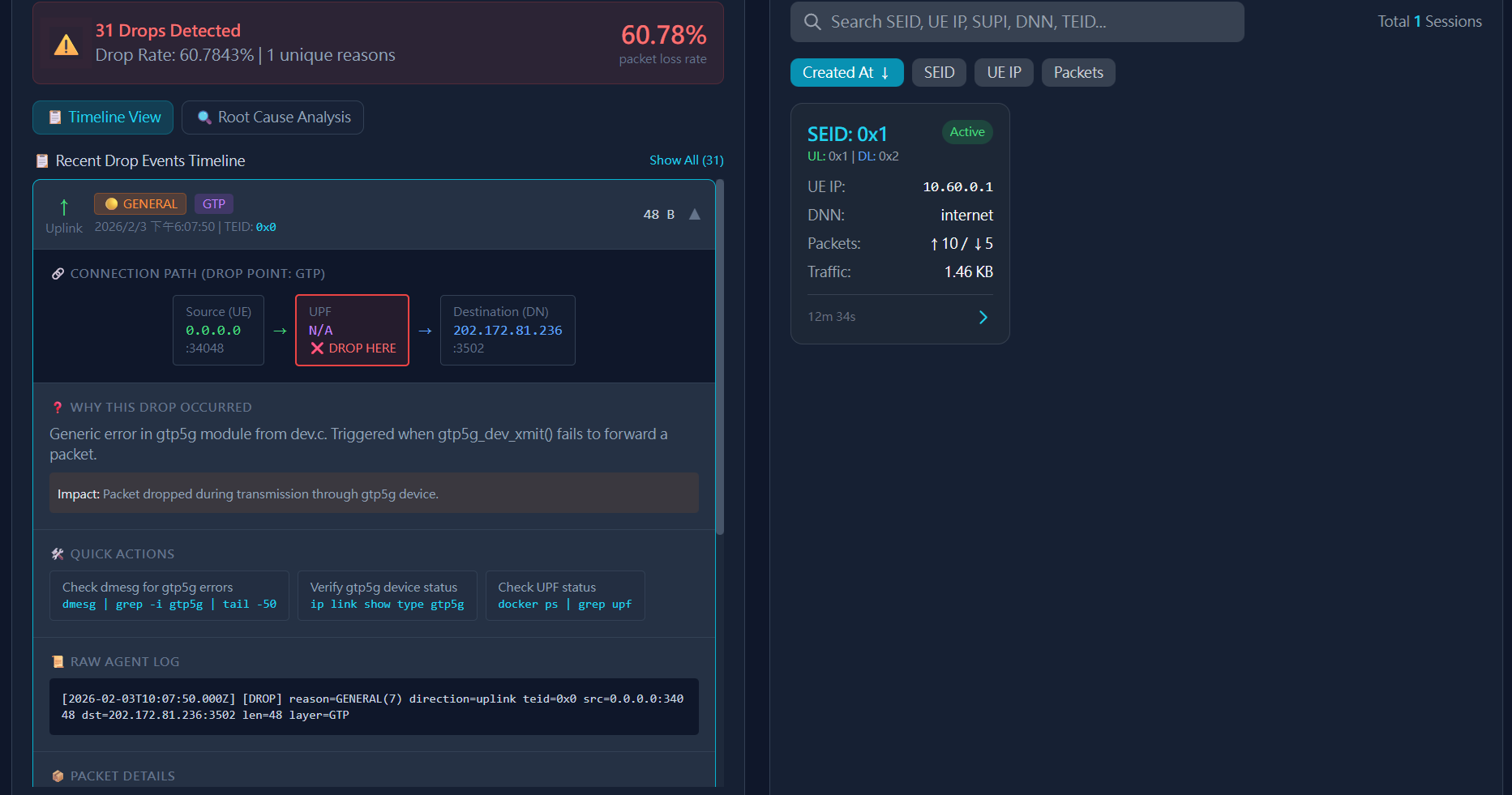

The drop view turns a low-level gtp5g signal into a troubleshooting starting point. It presents the reported reason together with the originating hook and available packet or session context, so an operator can decide whether to investigate routing, PFCP rules, QoS policy, or transmission.

Drop Detection

Figure 6. Real-time packet-drop detection

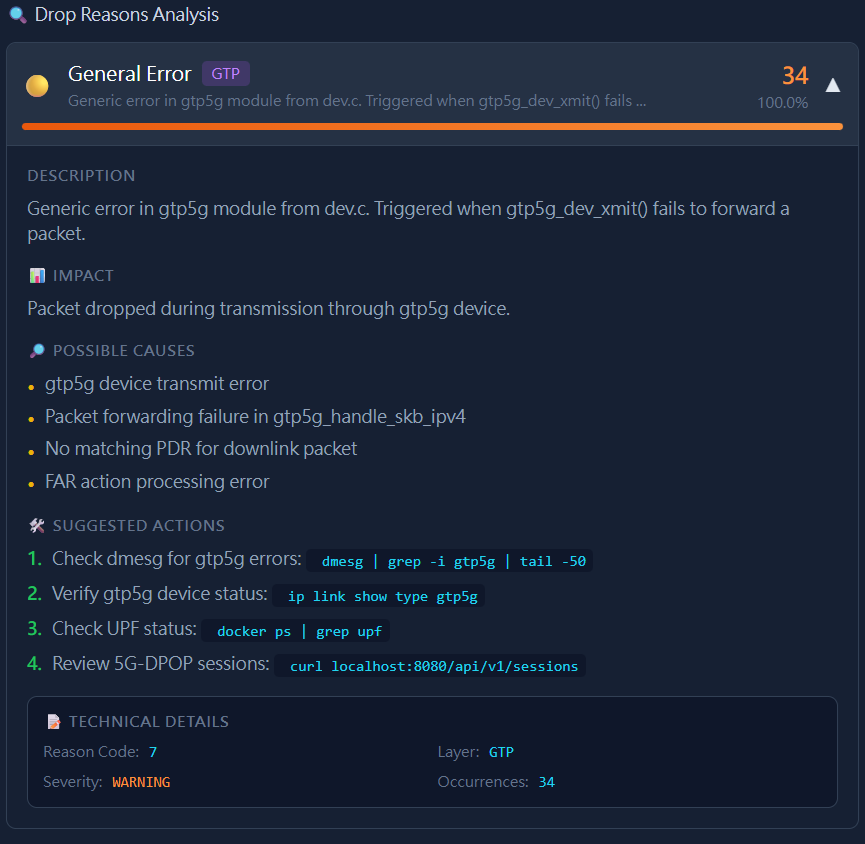

The system also provides drop reason statistics to help locate the root cause:

Drop Reasons Analysis

Figure 7. Packet-drop reason analysis

Common drop reasons include:

  • NO_PDR: No matching PDR rule was found.
  • UL_GATE_CLOSED / DL_GATE_CLOSED: A QoS gate is closed.
  • NO_ROUTE: No route to the destination is available.

4. Demo Videos

Basic Operation Demo

The first video shows how live traffic and session tracking appear during normal operation.

Packet Drop Test

The second video demonstrates how a reported drop becomes a reason-oriented troubleshooting view.

5. Quick Start

To reproduce the demonstrations in this article, follow the maintained 5G-DPOP Quick Start. It guides you from environment preparation to UE traffic generation and the first verified dashboard result, with diagnostics collected after the main workflow.

6. Summary

5G-DPOP combines kernel evidence with PFCP context so that traffic, sessions, topology, and drops can be understood as parts of the same user-plane story:

  • Kernel-level visibility shows where gtp5g receives, forwards, and rejects traffic.
  • Session-aware correlation connects counters and events to the relevant UE, tunnel, and forwarding rules.
  • Adaptive topology presents direct and multi-UPF paths from observed behavior.
  • Focused troubleshooting turns a packet-loss symptom into a smaller set of routing, policy, or session checks.

For 5G Core Network developers and operators, this approach shortens the path from “traffic is not working” to evidence that explains where to investigate next.
