Exploring the N2 SCTP Middleware: A Zero Trust Hop for 5G Control Plane

Note

Author: Kuan Lin Chen, Chieh Cheng Kuo
Date: 2026/04/16

Introduction

In modern 5G core networks, reliable signaling between components is absolutely critical. One of the key interfaces enabling this communication is the N2 interface, which connects the Radio Access Network (gNB) to the core network’s Access and Mobility Management Function (AMF).

The N2-SCTP-middleware project introduces a practical way to enhance this interface with Zero Trust principles, without modifying existing 5G components.

Background: N2 Interface and SCTP in 5G

What is the N2 Interface?

The N2 interface is part of the 5G control plane and is responsible for signaling between the gNB and AMF. It uses the NGAP (Next Generation Application Protocol) over SCTP as its transport layer.

Key responsibilities of N2 include:

Establishing and managing UE (User Equipment) context
Supporting mobility procedures (handover, registration)
Carrying NAS (Non-Access Stratum) signaling
Managing session-related signaling

Why SCTP?

SCTP (Stream Control Transmission Protocol) is used instead of TCP or UDP because it offers:

Multi-streaming (avoids head-of-line blocking)
Multi-homing (fault tolerance)
Reliable and ordered delivery
Better support for signaling workloads

These properties make SCTP ideal for 5G control plane communication—but not necessarily sufficient for modern security requirements.

A Zero-Trust “Hop” for N2

NGAP on N2 is typically transported over SCTP. While SCTP provides reliability and multi-streaming, it does not offer a simple, widely adopted mechanism for mutual authentication and encryption comparable to TLS (Transport Layer Security).

Although SCTP can be secured using mechanisms like IPsec, such approaches are often complex to deploy and operate.

This project instead adopts a more application-layer-friendly approach:

QUIC for transport (UDP-friendly, modern)
TLS 1.3 with mTLS for authentication and encryption
A lightweight certificate enrollment service

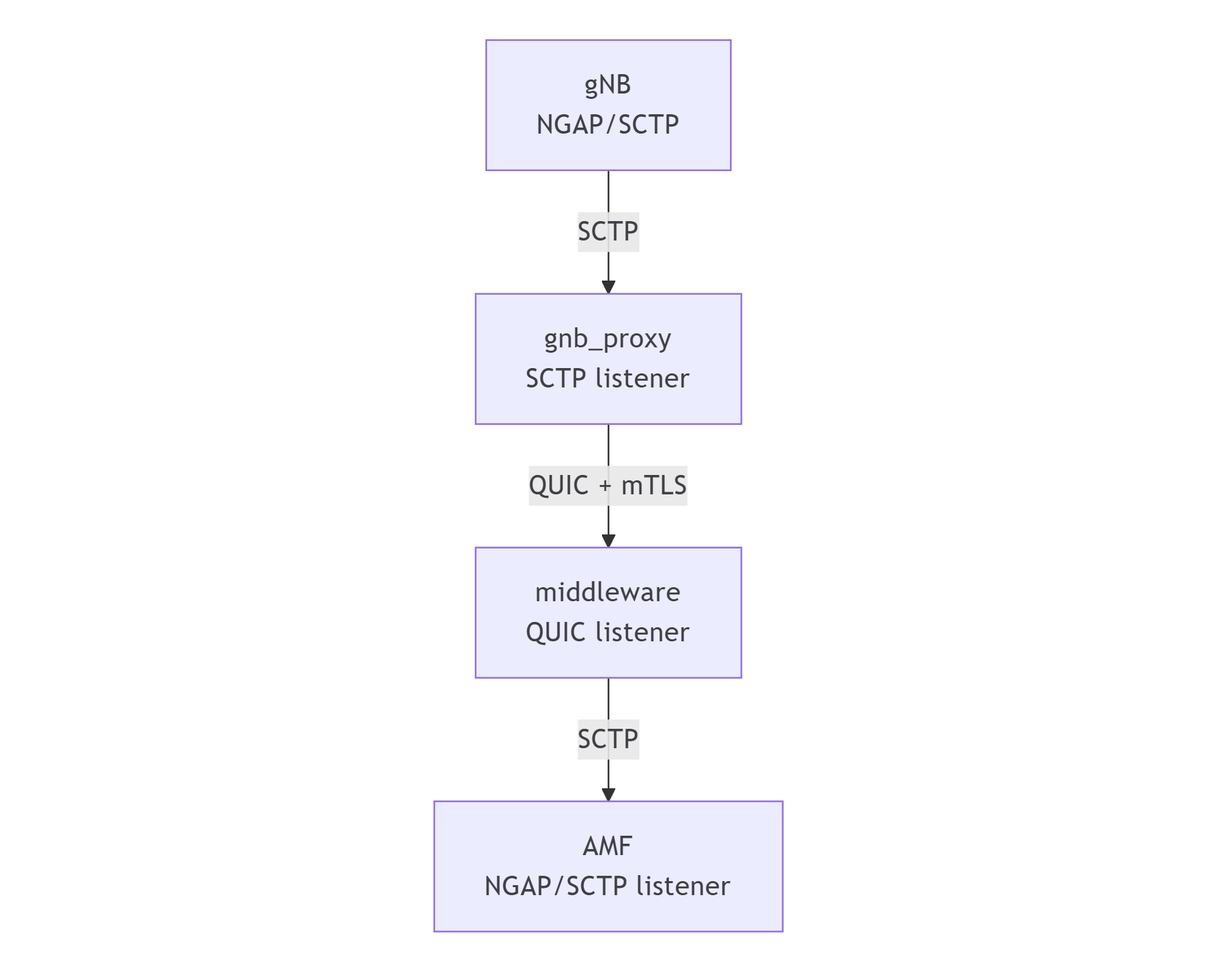

Rather than redesigning the entire N2 interface, this project implements a secure hop in the middle of the path:

UERANSIM gNB speaks NGAP over SCTP (unchanged)
A local gnb_proxy accepts that SCTP association
gnb_proxy tunnels NGAP over QUIC (UDP) with mTLS
middleware receives the tunnel and forwards traffic to the AMF (SCTP)

This design treats the segment between gnb_proxy and middleware as untrusted, and secures it explicitly.

Core Design and Architecture

a. Components

`gnb_proxy` (edge / gNB side)

The gnb_proxy sits close to the gNB and acts as an adapter between SCTP and the secure tunnel.

Responsibilities:

Listens for SCTP from UERANSIM gNB
Ensures it has a valid client certificate (enrolling if needed)
Establishes a QUIC mTLS session to middleware

Conceptually, it provides:

Local compatibility
Accepts standard NGAP-over-SCTP without requiring any gNB changes
Secure hop
Converts SCTP signaling into an encrypted, authenticated tunnel
Client identity
Uses a client certificate to prove “who it is” to the middleware

`middleware` (core / AMF side)

The middleware sits close to the AMF and terminates the secure tunnel.
- Boots or loads a local Root CA
- Boots or regenerates its server certificate
- Runs two services:
- Enrollment HTTPS: issues a client certificate to gnb_proxy (after JWT auth)
- QUIC mTLS tunnel: accepts mutually-authenticated tunnel connections
- Bridges traffic to the AMF’s NGAP SCTP listener

Conceptually, it provides:

Trust anchor
Acts as (or hosts) the Certificate Authority (CA)
Server identity
Proves its identity to gnb_proxy via a server certificate
Client admission control
Only allows connections from clients with valid, enrolled certificates
Protocol bridging
Converts secure tunnel traffic back into SCTP for the AMF

b. Security Model

The goal is simple:

Protect NGAP signaling across an untrusted segment and ensure both sides are authenticated.

Certificate Authority (CA)

A CA (Certificate Authority) is the root of trust.

Holds a private key used to sign certificates
Distributes a public certificate used to verify them

In this project:

The middleware acts as the CA
It signs both:
- Server certificate (for itself)
- Client certificates (for proxies)

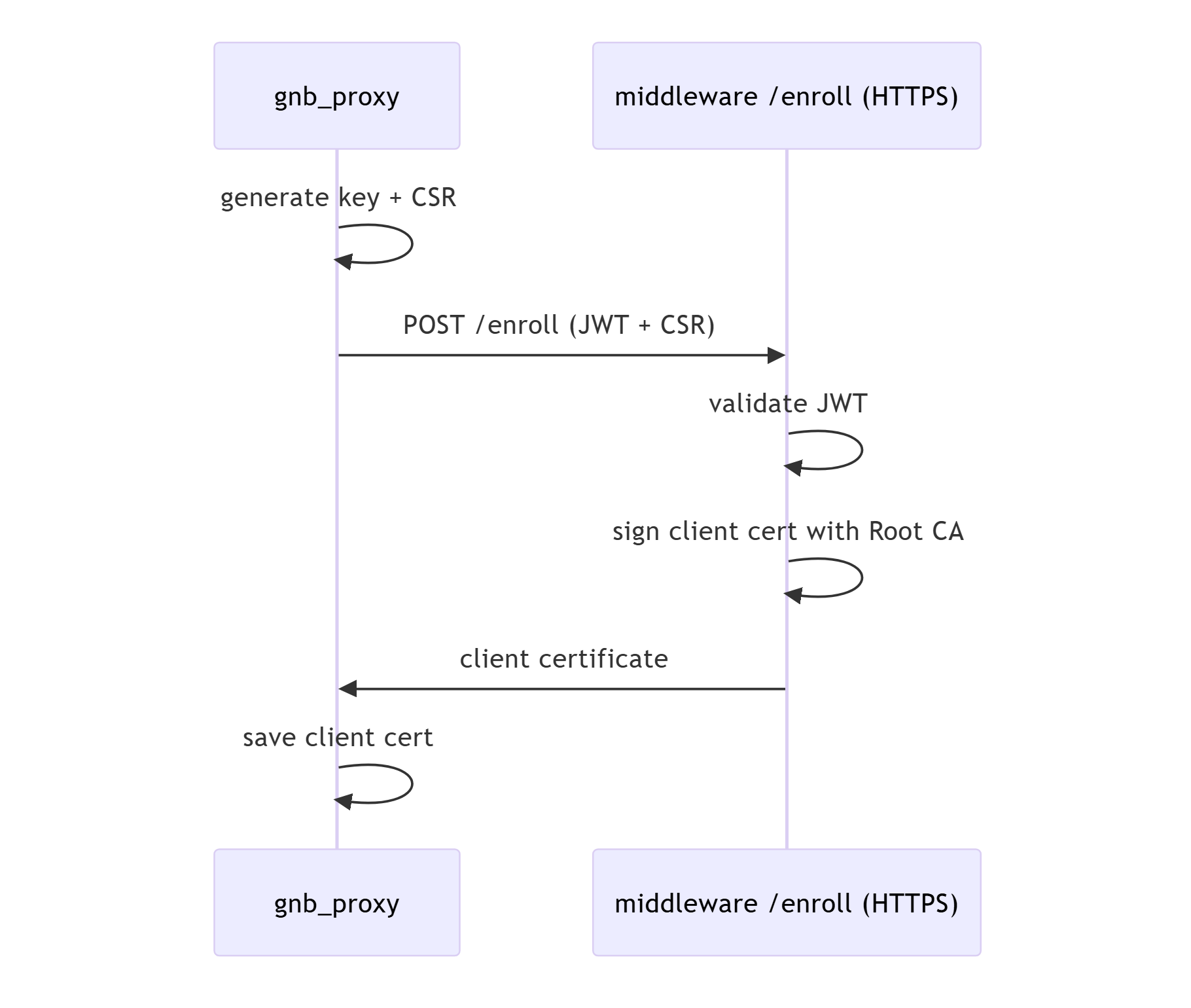

Client Certificates (Why `gnb_proxy` needs one)

Client certificates enable mutual authentication.

With them:

middleware can require every client to present a certificate
It verifies the certificate is signed by the trusted CA
Only authorized proxies can establish tunnels

Without this, any host could attempt to connect to the tunnel endpoint.

QUIC + mTLS Tunnel

The tunnel between gnb_proxy and middleware uses:

QUIC (over UDP) for transport
TLS 1.3 with mutual authentication (mTLS) for security

This provides:

Confidentiality — NGAP signaling is encrypted
Server authentication — proxy verifies middleware
Client authentication — middleware verifies proxy

In short, it behaves like:

“TLS-secured tunnel, but running over QUIC/UDP”

Demo

Demo video

Final Thoughts

This design highlights a practical approach to introducing zero-trust principles into existing 5G systems: instead of redesigning protocols or modifying endpoints, it wraps an insecure segment with a secure transport layer. By combining SCTP compatibility with QUIC and mTLS, the project cleanly separates concerns—leaving NGAP untouched while strengthening the weakest part of the path.

More importantly, it demonstrates a general pattern that extends beyond 5G: when legacy protocols lack built-in security, you can often bridge them through a modern, authenticated tunnel. This makes the system not only easier to secure, but also easier to reason about—trust is explicit, scoped, and enforceable at a well-defined boundary.
