Implementing GTP-driven Automatic Scheduling Optimization with eBPF-based Scheduler

Note

Author: Meng-Han, Hsieh
Date: 2025/11/26

Abstract

This article demonstrates how to use eBPF (Extended Berkeley Packet Filter) to trace GTP packet processing in the kernel (via gtp5g-tracer), and combine it with Gthulhu — a Linux eBPF-based Scheduler (sched_ext) — to automatically adjust scheduling strategies for end-to-end UE (User Equipment) latency optimization.

Key achievements delivered in this work:

  • Automatically identify gNodeB, UE related process ID
  • Dynamically adjust related process priority and CPU time slices
  • Reduce UE ping latency

Background

Performance Challenges in 5G UPF

In 5G networks, the UPF handles all user plane traffic, including tasks like GTP encapsulation/decapsulation and routing. UPF usually faces several performance challenges:

  1. Multi-process CPU Competition:

    • gNodeB processes (e.g. nr-gnb)
    • UE simulators (e.g. nr-ue) generate test traffic
    • GTP5G kernel module processes packets
    • Other system services compete for CPU resources

  2. Limitations of Linux CFS Scheduler:

    • CFS (Completely Fair Scheduler) pursues fairness
    • Lacks application-level awareness — can't automatically prioritize critical 5GC processes based on traffic

  3. Manual Optimization Difficulties:

    • PIDs change dynamically (container/process restarts)
    • Requires continuous monitoring and adjustment

Solution

Combining eBPF observability + eBPF-based scheduler (sched_ext) programmability to build an automated process scheduling optimization system. Instead of modifying network traffic directly, I trace the gtp5g module to identify nr-ue and nr-gnb related processes and provide them higher CPU priority during high system load:

%%{init: { 'themeVariables': { 'fontSize': '24px', 'fontFamily': 'Inter, Arial, sans-serif' } } }%%
flowchart LR
  subgraph Host[5G Core Host]
    direction LR
    UE["UE"] --> gNodeB["gNodeB"] --> UPF["UPF (GTP5G)"] --> Internet["Internet"]
  end

  subgraph Tracing["Kernel eBPF Tracing"]
    direction TB
    gtp5g_tracer["gtp5g-tracer"]
    trace_pipe["trace_pipe"]
    gtp5g_tracer --> trace_pipe
  end

  subgraph Operator["User-space Operator"]
    direction TB
    operator["gtp5g_operator\n(Go service)\nParse & Detect"]
    operator --> gthulhu_api["Gthulhu API"]
    gthulhu_api_note["K8s service - Strategy Management"]
    gthulhu_api -.-> gthulhu_api_note
  end

  gtp5g_tracer -->|events| operator
  gthulhu_api -->|Update Strategies| gthulhu_sched["Gthulhu Scheduler\n(sched_ext, eBPF-based)"]
  gthulhu_sched -->|Apply| UPF

  classDef component fill:#f8f9fa,stroke:#333,stroke-width:1px
  class gtp5g_tracer,trace_pipe,operator,gthulhu_api,gthulhu_sched component

  %% end mermaid

Architecture

System Components

1. gtp5g-tracer (eBPF Tracer)

Function: Trace critical functions in GTP5G kernel module

Implementation:

// gtp5g_tracer_kern.c
SEC("fentry/gtp5g_encap_recv")
int BPF_PROG(gtp5g_encap_recv_entry, struct sk_buff *skb,
             struct net_device *dev) {
    u32 pid = bpf_get_current_pid_tgid() >> 32;
    u32 tgid = bpf_get_current_pid_tgid();

    bpf_printk("fentry/gtp5g_encap_recv: PID=%d, TGID=%d", pid, tgid);
    return 0;
}

SEC("fexit/gtp5g_encap_recv")
int BPF_PROG(gtp5g_encap_recv_exit, struct sk_buff *skb,
             struct net_device *dev, int ret) {
    bpf_printk("fexit/gtp5g_encap_recv: ret=%d", ret);
    return 0;
}

Traced Functions:

  • gtp5g_encap_recv(): GTP encapsulation receive
  • gtp5g_handle_skb_ipv4(): IPv4 packet handling
  • gtp5g_xmit_skb_ipv4(): IPv4 packet transmission

Output (/sys/kernel/debug/tracing/trace_pipe):

nr-gnb-365189 [003] d..31 21039.948599: bpf_trace_printk: fentry/gtp5g_encap_recv: PID=365189, TGID=365162
nr-ue-365012  [004] d..31 22353.878390: bpf_trace_printk: stop: pid=365012 (nr-ue) cpu=4

2. gtp5g_operator (Go Service)

Function: Parse trace_pipe, identify critical process IDs, and send scheduling strategies

Core Modules:

2.1 Trace Parser (pkg/parser/trace_parser.go)

type TraceParser struct {
    nrGnbRegex *regexp.Regexp
    nrUeRegex  *regexp.Regexp
}

func (p *TraceParser) ParsePIDFromLine(line string) (int, bool) {
    // Priority matching:
    // 1. TGID= (thread group ID)
    // 2. nr-gnb-<PID> / nr-ue-<PID>
    // 3. pid=<num> (procname)
    // 4. PID= field
}

2.2 JWT Auth Client (pkg/auth/client.go)

type Client struct {
    token       string
    tokenExpiry time.Time
    mu          sync.RWMutex
}

// Automatic token management:
// - Acquire on first request
// - Auto-refresh 5 minutes before expiry
// - Thread-safe

2.3 API Client (pkg/api/client.go)

type SchedulingStrategy struct {
    PID           int    `json:"pid"`
    Priority      bool   `json:"priority"`
    ExecutionTime uint64 `json:"execution_time"`  // nanoseconds
}

func (c *Client) SendStrategies(ctx context.Context,
                                pids map[int]bool,
                                priority bool,
                                executionTime uint64)

Workflow:

1. tail -f /sys/kernel/debug/tracing/trace_pipe
2. Regex matching to extract PIDs (nr-gnb, nr-ue)
3. POST to Gthulhu API every second
4. Periodically get JWT token authentication

3. Gthulhu Scheduler (eBPF-based Scheduler / sched_ext)

Function: Programmable scheduler based on Linux sched_ext

Key Features:

  • Receive strategy updates via API
  • Dynamically adjust process priority
  • Custom CPU time slice allocation

Strategy Parameters:

{
  "strategies": [
    {
      "pid": 365162,           // gNodeB main process
      "priority": true,        // Boost priority
      "execution_time": 20000000  // 20ms time slice
    }
  ]
}

Data Flow

To clearly demonstrate the data flow, I divide the process into three phases: Traffic Tracing, Analysis & Decision, and Scheduling Optimization.

%%{init: { 'themeVariables': { 'fontSize': '12px', 'fontFamily': 'Inter, Arial, sans-serif' } } }%%
flowchart TD
    subgraph Phase1["1. Traffic Tracing (Kernel Space)"]
        UE[UE Device] -->|GTP Packets| GTP[GTP5G Module]
        GTP -->|fentry Trigger| Tracer[eBPF Tracer]
        Tracer -->|Write Event| Pipe[trace_pipe]
    end

    subgraph Phase2["2. Analysis & Decision (User Space)"]
        Pipe -->|Read| Operator[gtp5g_operator]
        Operator -->|Parse PID| Operator
        Operator -->|HTTP POST| API[Gthulhu API]
    end

    subgraph Phase3["3. Scheduling Optimization (Scheduler)"]
        API -->|Update Map| Scheduler[Gthulhu Scheduler]
        Scheduler -->|Boost Priority| GTP
    end

    classDef phase fill:#f9f9f9,stroke:#333,stroke-width:1px;
    class Phase1,Phase2,Phase3 phase;

Process Detail:

  1. Traffic Generation: UE sends packets, processed by the GTP5G Module in the Kernel.
  2. Event Capture: gtp5g-tracer intercepts key functions via eBPF hooks and writes PID information to trace_pipe.
  3. Data Analysis: gtp5g_operator reads the pipe in real-time, filtering for key processes (nr-gnb/nr-ue).
  4. Strategy Dispatch: The Operator sends the identified PIDs to the Gthulhu API.
  5. Execution: Gthulhu Scheduler receives the strategy and immediately adjusts the CPU priority and time slice for that PID.

Implementation Details

Environment Setup

System Requirements

  • OS: Ubuntu 25.04 (kernel 6.12+)
  • Kubernetes: microk8s or other K8s distributions
  • free5GC: free5GC-helm v4.1.0
  • Go: v1.24.2
  • gtp5g: v0.9.15
  • gtp5g-tracer: x

Step 1: gtp5g-tracer (build & run)

1. Make gtp5g functions visible for fentry/fexit:

If functions are declared static inline the symbol may not be visible to the tracer. Convert to a visible symbol where needed (example):

// gtp5g/src/gtpu/gtpu.c
- static inline int gtp5g_encap_recv(struct sk_buff *skb, struct net_device *dev)
+ __visible noinline int gtp5g_encap_recv(struct sk_buff *skb, struct net_device *dev)
{
  // ... function body
}

2. Build & run the tracer

cp /sys/kernel/btf/vmlinux /usr/lib/modules/$(uname -r)/build/
cd <GTP5G>
make clean && make
sudo make install
cd <GTP5G-TRACER>
make dep
make

3. Quick verification (development, should have ue traffic):

sudo cat /sys/kernel/debug/tracing/trace_pipe | grep gtp5g
# example output:
# nr-gnb-365189 ... bpf_trace_printk: fentry/gtp5g_encap_recv: PID=365189, TGID=365162
# nr-ue-365012  ... bpf_trace_printk: stop: pid=365012 (nr-ue) cpu=4

Step 2: Build Gthulhu

cd ~/Gthulhu/gtp5g_operator
go build -o gtp5g_operator

The operator expects configuration for the API endpoint and the Kubernetes JWT public key; see ./start_operator.sh for example environment variables.

Deployment Guide

Host (Ubuntu 25.04)
├── gtp5g-tracer (running in background)
│   └── Output to /sys/kernel/debug/tracing/trace_pipe
│
├── Kubernetes Cluster (microk8s)
│   ├── gthulhu-api (Pod)
│   │   ├── :8080 (API Server)
│   │   └── /app/jwt_public_key.pem
│   │
│   └── gthulhu-scheduler (Pod)
│       └── eBPF-based Scheduler (sched_ext)
│
└── gtp5g_operator (running on host)
    ├── Read trace_pipe
    ├── Port-forward → :8081 → K8s :8080
    └── Send strategies to Gthulhu API

Startup Sequence

  1. Start free5GC-helm and UERANSIM

    # Install free5GC charts
cd free5gc-helm/charts
helm install -n free5gc free5gc-helm ./free5gc/

#Install UERANSIM chart
cd free5gc-helm/charts
helm install -n free5gc ueransim ./ueransim/

  2. Start gtp5g-tracer

    cd ~/gtp5g-tracer
sudo ./main

  3. Start Gthulhu (K8s)

    cd Gthulhu/chart
helm install gthulhu gthulhu

  4. Setup Port-Forward

    POD_NAME=gthulhu-api-xxxxx
sudo kubectl port-forward $POD_NAME 8081:8080

  5. Start gtp5g_operator

    cd ~/Gthulhu/gtp5g_operator/
sudo go run main.go

Performance Testing

Test Methodology

Baseline (Unoptimized)

  1. Stop gtp5g_operator
  2. Clear Gthulhu strategies
  3. UE ping test (Run a short host CPU stress, e.g. stress-ng -c 20 --timeout 120s --metrics-brief):
# Inside UE POD
ping -I uesimtun0 N6_IP -c 20

Optimized

  1. Start gtp5g_operator
  2. Confirm strategies are applied
  3. UE ping test (same command, same CPU stress)

Test Results

Metric Baseline Optimized Improvement
Avg Latency 88.98 ms 2.079 ms 97.66%
Min Latency 35.47 ms 0.679 ms 98.08%
Max Latency 130.95 ms 8.45 ms 93.55%

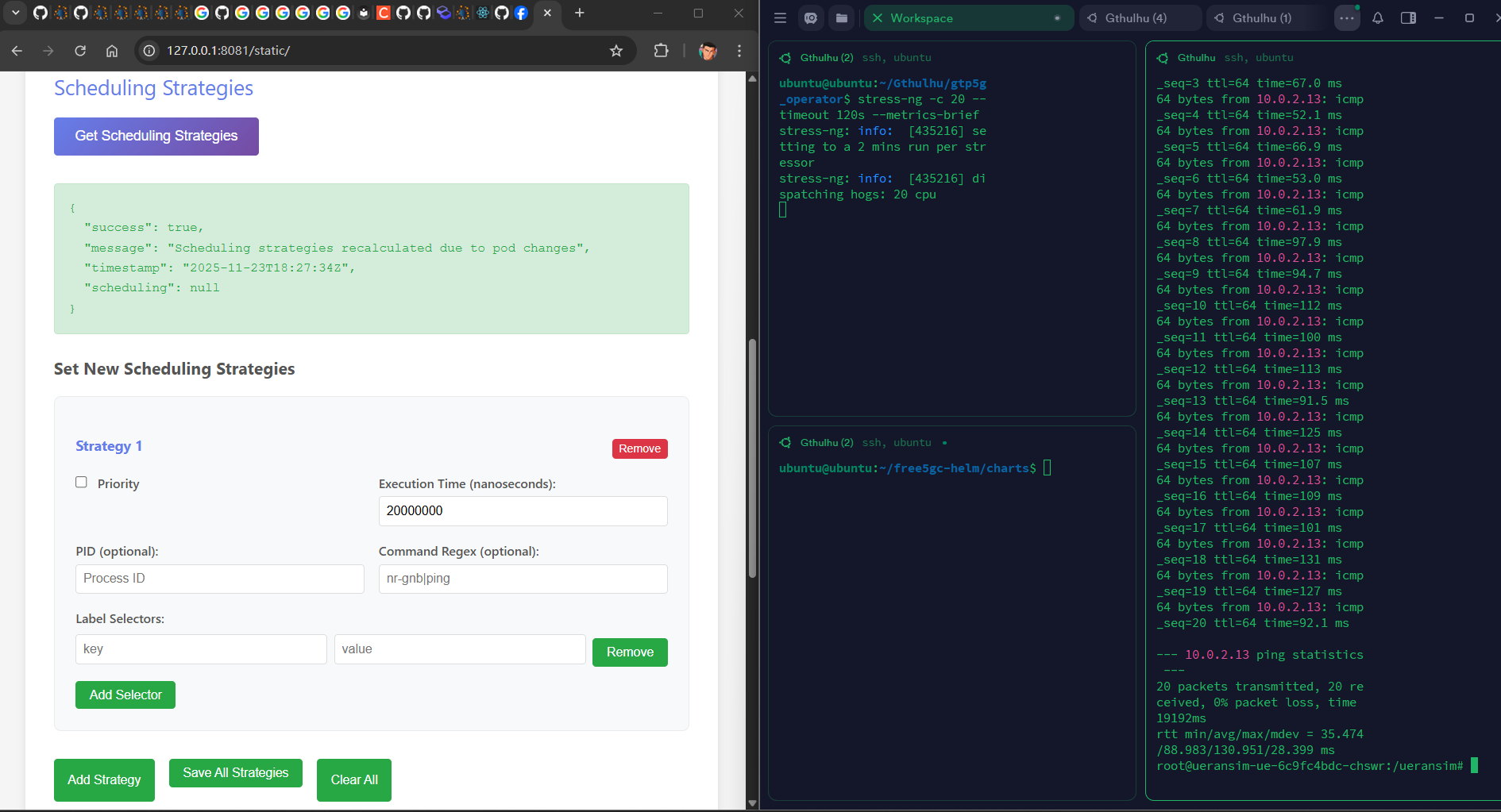

baseline
Figure 1: Baseline - without gtp5g-operator

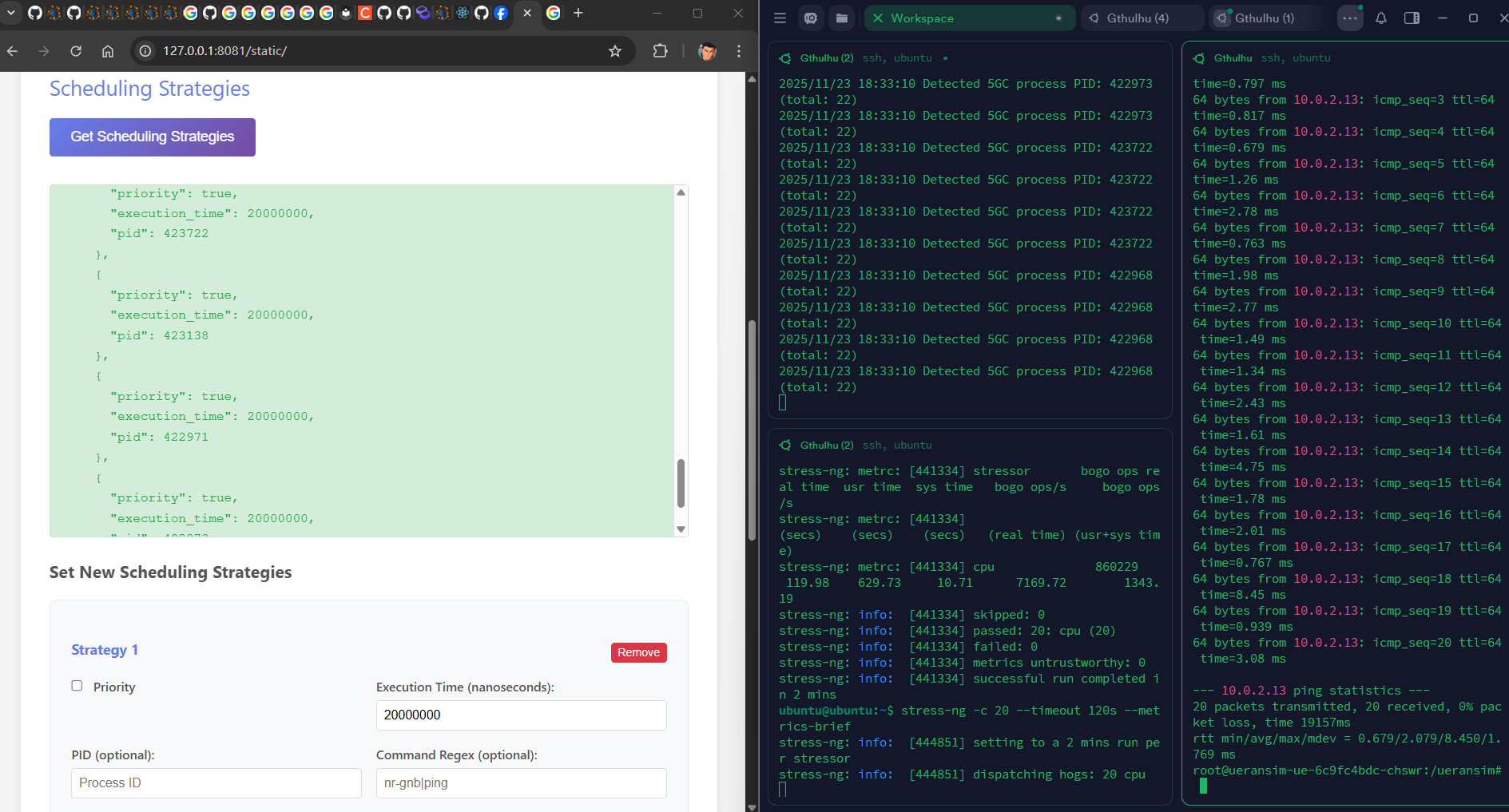

optimize
Figure 2: Optimized - automatic apply schduling strategies

Conclusion

Combining kernel-level eBPF tracing of gtp5g with an eBPF-based scheduler (Gthulhu) provides an efficient, non-invasive way to detect and prioritize critical 5GC processes — Reducing substantial UE latency under CPU contention. While this approach is promising, it requires BTF/function visibility and safe, well-tested strategies to avoid negative trade-offs.
