GTP5G Netlink Protocol Decoder: Implementation and Message Analysis

Note

Author: CHEN, KUAN-LIN
Date: 2025/12/10

1. Introduction

1.1 Overview

When debugging or analyzing the free5GC User Plane Function (UPF), understanding the communication between userspace applications and the kernel's GTP5G module is essential. This article explains the implementation of a Python protocol analyzer that decodes Generic Netlink messages exchanged between the UPF and the gtp5g kernel module.

The decoder intercepts strace output and translates raw hexadecimal data into human-readable GTP5G protocol information, enabling developers to observe PDR (Packet Detection Rule), FAR (Forwarding Action Rule), QER (QoS Enforcement Rule), and URR (Usage Reporting Rule) operations in real-time.

Netlink is Linux's mechanism for kernel-userspace communication. Unlike traditional system calls that are synchronous and limited in data size, Netlink provides:

  • Asynchronous message passing: Applications send requests and receive responses independently
  • Multicast capabilities: Kernel can notify multiple processes of events
  • Extensible protocol families: Each subsystem defines its own message types

Generic Netlink (genetlink) extends this by providing a dynamic registration mechanism. Instead of hardcoding protocol numbers, kernel modules register a "family name" (e.g., gtp5g) and receive a dynamically assigned family ID at load time.

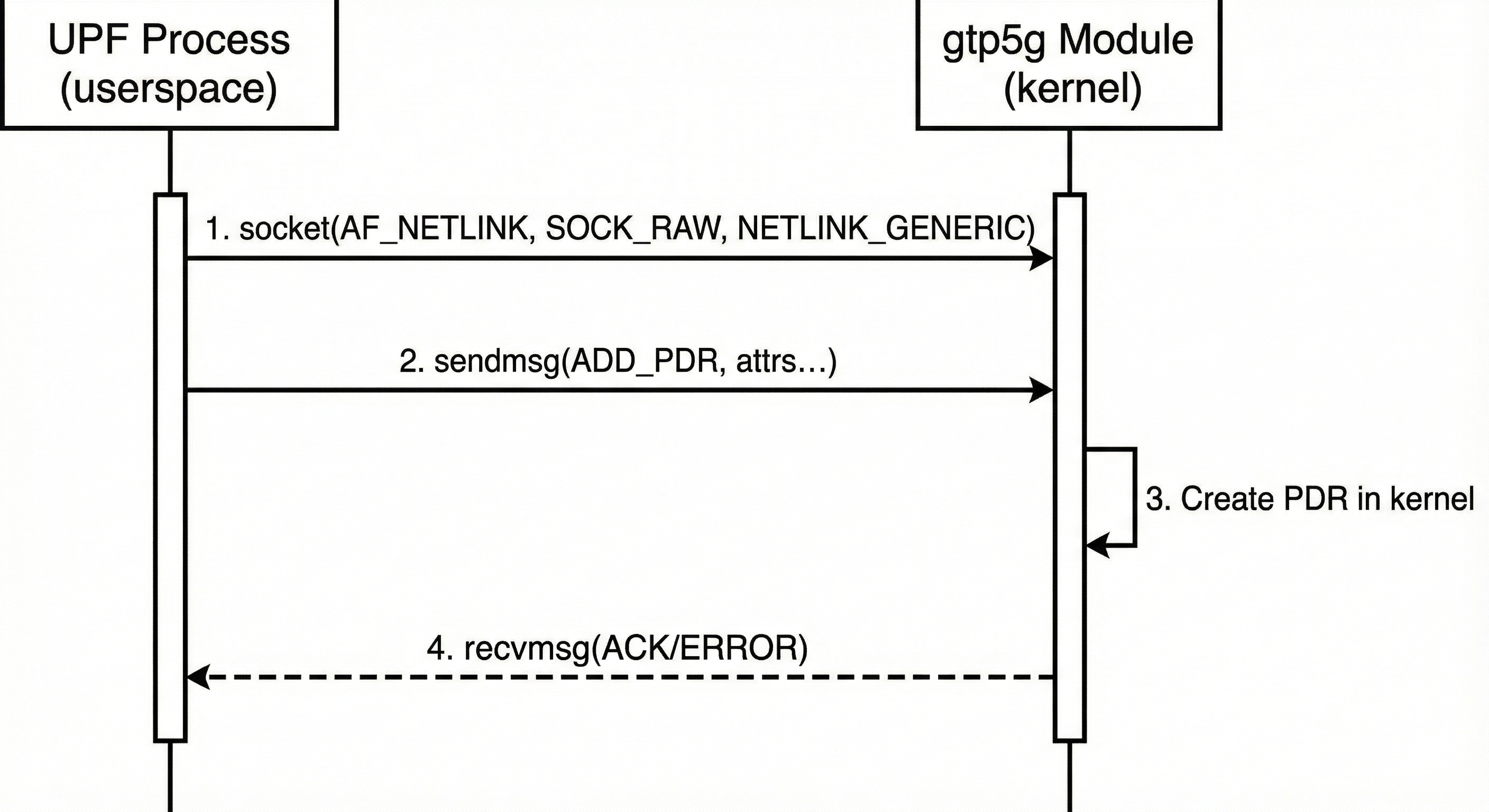

For the GTP5G module, the message flow works as follows:

1.3 Why Not Just Use strace?

While strace is an excellent tool for tracing system calls, it has significant limitations when analyzing GTP5G Netlink messages:

Limitations of Raw strace Output

  1. No Protocol Awareness: strace displays Netlink messages as raw hexadecimal bytes without understanding the GTP5G protocol semantics. You see \x05\x00\x00\x00 instead of Command: GTP5G_CMD_ADD_PDR.

  2. Dynamic Family ID: Generic Netlink assigns family IDs dynamically at module load time. strace shows type=gtp5g but cannot correlate the numeric type with the actual protocol family or decode the command codes.

  3. Fragmented I/O Vectors: strace splits sendmsg data across multiple iov_base entries. The first entry shows a structured Netlink header, while subsequent entries contain raw hex - making manual correlation extremely difficult.

  4. No Attribute Interpretation: TLV (Type-Length-Value) attributes are displayed as hex dumps. Understanding that \x0c\x00\x07\x00 means "12-byte attribute of type SEID" requires manual calculation.

  5. Context-Dependent Semantics: The same attribute type number has different meanings depending on the command (e.g., attribute 3 is PRECEDENCE for PDR but APPLY_ACTION for FAR). strace cannot provide this context.

Example: Raw strace vs. Decoded Output

Raw strace output:

sendmsg(13, {msg_iov=[{iov_base={len=48, type=gtp5g, flags=NLM_F_REQUEST|NLM_F_ACK,
seq=25, pid=0}, iov_len=16}, {iov_base="\x05\x00\x00\x00", iov_len=4},
{iov_base="\x0c\x00\x07\x00\x01\x00\x00\x00\x00\x00\x00\x00", iov_len=12}], ...}, 0)

Decoded output from python program:

=== GTP5G Message ===
Direction: SEND
Command: GTP5G_CMD_ADD_PDR (5)
Attributes:
  - SEID: 1

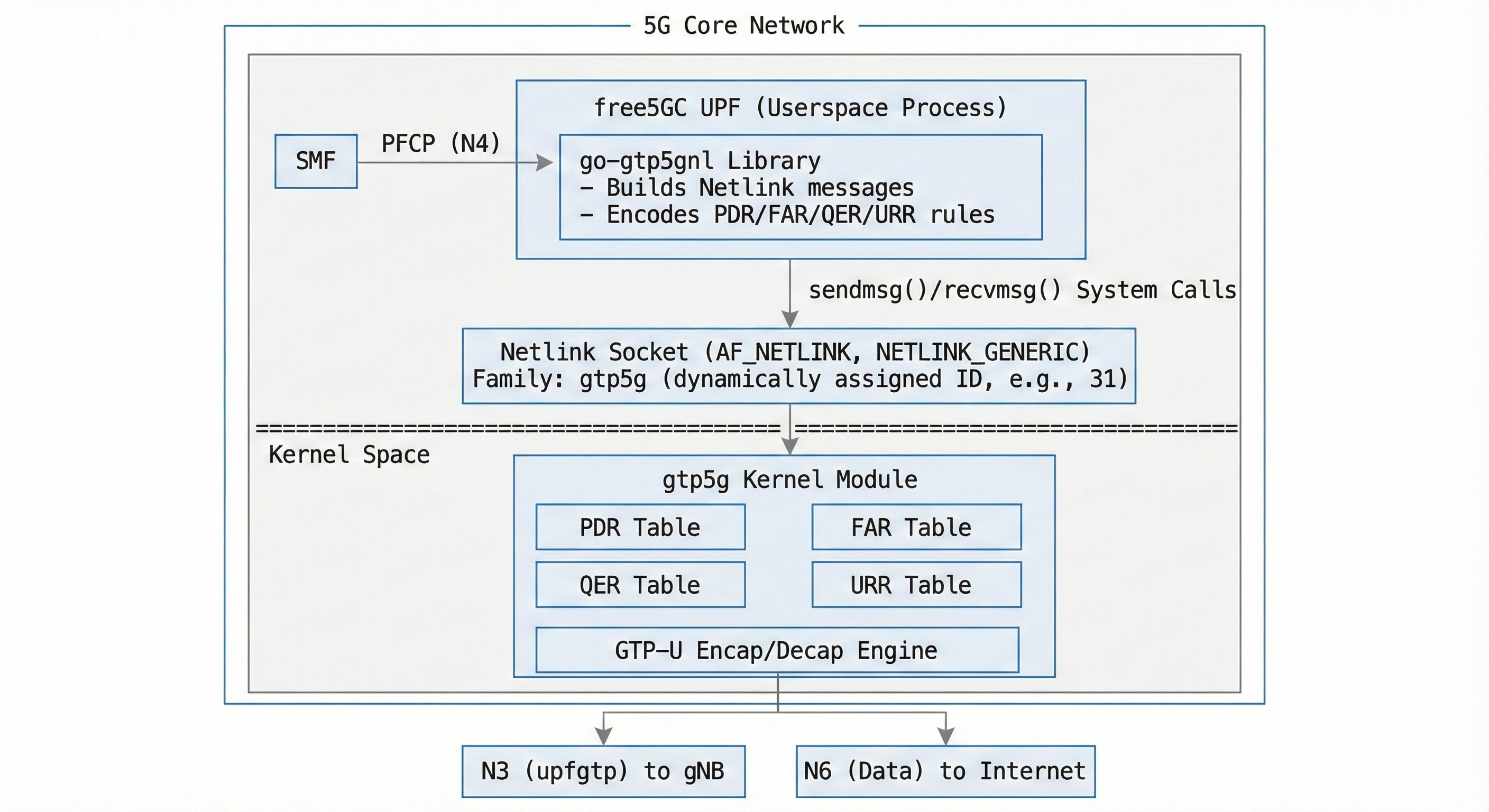

2. Architecture Overview

3. Implementation Details

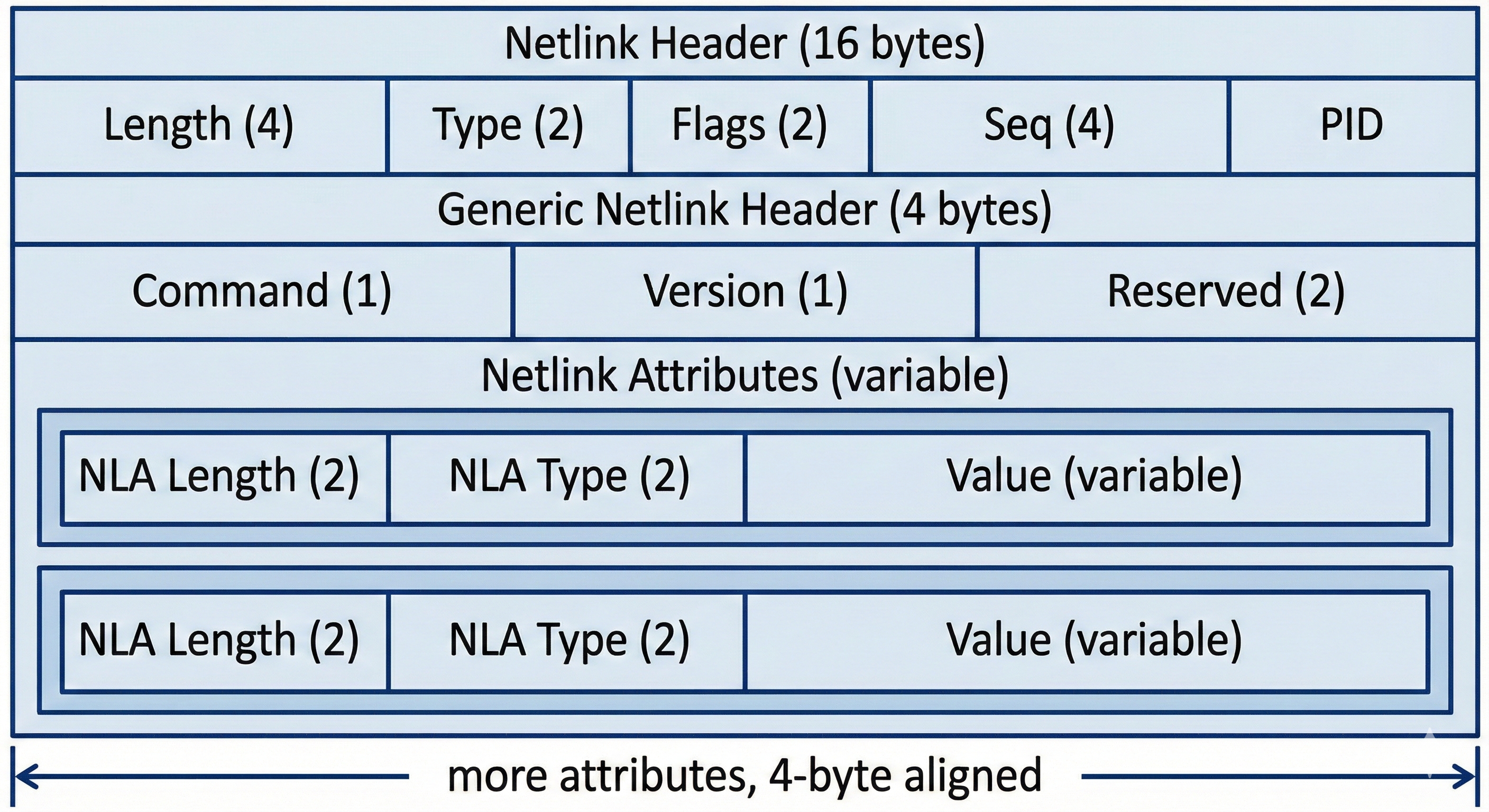

The GTP5G module uses Generic Netlink (genetlink) for kernel-userspace communication. Each message follows this structure:

3.2 GTP5G Family ID Detection

Generic Netlink families are dynamically assigned IDs at module load time. The decoder must discover the correct family ID:

def get_gtp5g_family_id():
    """Get gtp5g Generic Netlink family ID using 'genl' command."""
    try:
        result = subprocess.run(
            ["genl", "ctrl", "list", "name", "gtp5g"],
            capture_output=True,
            text=True
        )

        if result.returncode != 0:
            return None

        lines = result.stdout.split('\n')
        found_name = False
        for line in lines:
            if "Name: gtp5g" in line:
                found_name = True
            elif found_name and "ID:" in line:
                match = re.search(r'ID:\s+(0x[0-9a-fA-F]+)', line)
                if match:
                    hex_id = match.group(1)
                    fam_id = int(hex_id, 16)
                    print(f"[Init] Detected gtp5g Family ID: {fam_id} ({hex_id})")
                    return fam_id
            if found_name and "Name:" in line:
                break

        # Fallback: try single-line pattern
        match = re.search(r'Name:\s+gtp5g\s+ID:\s+(0x[0-9a-fA-F]+)', result.stdout)
        if match:
            hex_id = match.group(1)
            fam_id = int(hex_id, 16)
            print(f"[Init] Detected gtp5g Family ID: {fam_id} ({hex_id})")
            return fam_id

    except FileNotFoundError:
        print("[Init] Error: 'genl' command not found")
    except Exception as e:
        print(f"[Init] Warning: Could not detect gtp5g family: {e}")

    return None

This approach is more portable than using Python libraries like pyroute2, which may have version compatibility issues. The function handles multiple output formats from the genl command and provides graceful error handling.

3.3 Parsing strace Output

Parsing strace output is the most challenging part of the decoder. The strace utility displays sendmsg calls in a complex format with multiple I/O vectors, and understanding this format is essential for correct decoding.

The strace Output Format

When strace traces a sendmsg system call on a Netlink socket, it produces output like this:

sendmsg(13, {msg_name=..., msg_namelen=12, msg_iov=[
    {iov_base={len=48, type=gtp5g, flags=NLM_F_REQUEST|NLM_F_ACK, seq=25, pid=0}, iov_len=16},
    {iov_base="\x05\x00\x00\x00", iov_len=4},
    {iov_base="\x0c\x00\x07\x00\x01\x00\x00\x00\x00\x00\x00\x00", iov_len=12}
], msg_iovlen=3, ...}, 0) = 48

Key observations:

  1. First iov_base is structured: strace recognizes Netlink headers and displays them in a human-readable format {len=48, type=gtp5g, flags=..., seq=25, pid=0} instead of raw hex.

  2. Subsequent iov_base entries are hex: The Generic Netlink header (4 bytes) and attributes appear as escaped hex strings like "\x05\x00\x00\x00".

  3. Multiple fragments: The message is split across multiple iov_base entries that must be concatenated.

Step 1: Detect GTP5G Messages

First, we identify lines containing GTP5G Netlink messages:

def is_gtp5g_message(line):
    """Check if the line contains a GTP5G netlink message."""
    # Look for structured header with type=gtp5g
    if 'type=gtp5g' in line:
        return True
    # Also check for the numeric family ID (e.g., type=0x1f)
    if f'type=0x{gtp5g_family_id:x}' in line:
        return True
    return False

The structured header contains all fields of the 16-byte Netlink header. The decoder extracts these fields using regex pattern matching:

# Extract Netlink message header fields from strace output
header_match = re.search(
    r'iov_base=\{len=(\d+),\s*type=([^,]+),\s*flags=([^,]+),\s*seq=(\d+),\s*pid=(\d+)\}',
    line
)

if not header_match:
    return

msg_len = int(header_match.group(1))       # Total message length
msg_type_str = header_match.group(2).strip()  # "gtp5g" or numeric
flags_str = header_match.group(3).strip()     # "NLM_F_REQUEST|NLM_F_ACK"
seq = int(header_match.group(4))              # Sequence number
pid = int(header_match.group(5))              # Port ID (usually 0)

# Parse message type (Generic Netlink family ID)
if 'gtp5g' in msg_type_str:
    msg_type = CURRENT_GTP5G_FAMILY_ID if CURRENT_GTP5G_FAMILY_ID else 31
else:
    type_match = re.search(r'0x([0-9a-fA-F]+)', msg_type_str)
    msg_type = int(type_match.group(1), 16) if type_match else 0

# Filter out non-gtp5g messages
if CURRENT_GTP5G_FAMILY_ID and msg_type != CURRENT_GTP5G_FAMILY_ID:
    return

The flags field requires special handling to convert symbolic names to numeric values:

# Parse Netlink message flags from strace symbolic output
flags = 0
if 'NLM_F_REQUEST' in flags_str:
    flags |= 0x0001
if 'NLM_F_ACK' in flags_str:
    flags |= 0x0004
if '0x200' in flags_str:
    flags |= 0x0200
if '0x100' in flags_str:
    flags |= 0x0100

The decoder focuses on the most commonly used flags in GTP5G communication rather than maintaining a complete mapping.

Step 4: Extract Hex Payloads

The remaining iov_base entries contain raw hex data. The decoder handles multiple strace output formats:

# Extract payload data from iov_base fields in order of appearance
# strace may output iov data in different formats depending on content
iov_patterns = [
    # Pattern 1: Simple hex string iov_base="\x..."
    (r'iov_base="((?:\\x[0-9a-fA-F]{2})+)"', 'hex'),
    # Pattern 2: Nested structure where strace decoded first 16 bytes as nlmsghdr
    # Format: iov_base={{len=N, type=X, flags=N, seq=N, pid=N}, "\x..."}
    (r'iov_base=\{\{len=(\d+),\s*type=([^,]+),\s*flags=(\d+),\s*seq=(\d+),\s*pid=(\d+)\},\s*"((?:\\x[0-9a-fA-F]{2})+)"\}', 'nested_full'),
    # Pattern 3: Standalone decoded nlmsghdr without trailing hex data
    (r'iov_base=\{len=(\d+),\s*type=([^,]+),\s*flags=(\d+),\s*seq=(\d+),\s*pid=(\d+)\}(?!,\s*")', 'fake_header'),
]

# Collect all iov data segments with their positions
iov_items = []

for pattern, ptype in iov_patterns:
    for match in re.finditer(pattern, line):
        # Skip the real Netlink header (contains 'gtp5g' family name)
        if ptype in ('fake_header', 'nested_full') and 'gtp5g' in match.group(0):
            continue
        iov_items.append((match.start(), ptype, match))

# Sort by position to maintain correct byte order
iov_items.sort(key=lambda x: x[0])

This multi-pattern approach handles various strace output formats, including cases where strace partially decodes nested Netlink messages.

Step 5: Combine and Decode

Finally, assemble the payload from collected segments and parse:

# Assemble payload from collected iov segments
payload_bytes = b''
for pos, ptype, match in iov_items:
    try:
        if ptype == 'hex':
            hex_str = match.group(1)
            payload_bytes += bytes.fromhex(hex_str.replace('\\x', ''))
        elif ptype == 'nested_full':
            # Handle nested structure: rebuild the 16-byte header then append hex data
            len_val = int(match.group(1))
            type_str = match.group(2).strip()
            flags_val = int(match.group(3))
            seq_val = int(match.group(4))
            pid_val = int(match.group(5))
            hex_str = match.group(6)

            # Parse type value from type_str (e.g., "0x1f" or numeric)
            type_val = int(type_str, 0) if type_str.startswith('0x') else 0

            # Rebuild 16-byte nlmsghdr structure
            rebuilt = struct.pack("=I", len_val)
            rebuilt += struct.pack("=HH", type_val, flags_val)
            rebuilt += struct.pack("=I", seq_val)
            rebuilt += struct.pack("=I", pid_val)
            payload_bytes += rebuilt
            payload_bytes += bytes.fromhex(hex_str.replace('\\x', ''))
    except (ValueError, struct.error):
        continue

if len(payload_bytes) < 4:
    return

# Parse Generic Netlink header (4 bytes: cmd, version, reserved)
cmd, version, reserved = struct.unpack("=BBH", payload_bytes[:4])
cmd_str = GTP5G_CMDS.get(cmd, f"UNKNOWN_CMD_{cmd}")

# Select attribute mapping based on command type
attr_mappings = {
    1: GTP5G_PDR_ATTRS, 4: GTP5G_PDR_ATTRS, 7: GTP5G_PDR_ATTRS,
    2: GTP5G_FAR_ATTRS, 5: GTP5G_FAR_ATTRS, 8: GTP5G_FAR_ATTRS,
    3: GTP5G_QER_ATTRS, 6: GTP5G_QER_ATTRS, 9: GTP5G_QER_ATTRS,
    10: GTP5G_URR_ATTRS, 12: GTP5G_URR_ATTRS, 14: GTP5G_URR_ATTRS,
    11: GTP5G_BAR_ATTRS, 13: GTP5G_BAR_ATTRS, 15: GTP5G_BAR_ATTRS,
    17: GTP5G_URR_ATTRS,  # GET_REPORT uses URR attrs
    19: GTP5G_MULTI_REPORT_ATTRS,
    20: GTP5G_USAGE_STATISTIC_ATTRS,
}
attr_mapping = attr_mappings.get(cmd, GTP5G_COMMON_ATTRS)

# Parse attributes from payload (skip 4-byte GenL header)
attrs_data = payload_bytes[4:]
attributes = parse_attributes(attrs_data, attr_mapping)

Handling Edge Cases

The parser must handle several edge cases:

  1. Multi-line output: strace may split long lines; accumulate until ) = is seen
  2. Non-hex iov_base: Some entries may contain printable ASCII mixed with hex
  3. Truncated output: Use -s 65535 with strace to avoid truncation
  4. Multiple messages: A single sendmsg may contain batched requests

3.4 Command-Specific Attribute Mapping

A critical design decision is that attribute IDs are command-specific. The same attribute ID (e.g., 3) means different things for different commands:

Attribute ID PDR Command FAR Command QER Command URR Command
3 PDR_ID (U16) FAR_ID (U32) QER_ID (U32) URR_ID (U32)
4 PRECEDENCE APPLY_ACTION GATE MEASUREMENT_METHOD
5 PDI (nested) FORWARDING_PARAM MBR (nested) REPORTING_TRIGGER
... ... ... ... ...

The decoder selects the appropriate mapping based on the command:

cmd = genl_hdr['cmd']
if cmd in [1, 4, 7]:    # ADD_PDR, DEL_PDR, GET_PDR
    attr_mapping = GTP5G_PDR_ATTRS
elif cmd in [2, 5, 8]:  # ADD_FAR, DEL_FAR, GET_FAR
    attr_mapping = GTP5G_FAR_ATTRS
elif cmd in [3, 6, 9]:  # ADD_QER, DEL_QER, GET_QER
    attr_mapping = GTP5G_QER_ATTRS
# ... and so on

3.5 Attribute Value Decoding

Different attributes require different decoding strategies based on their data types:

def decode_value(attr_name, data):
    """Decode attribute value based on attribute name and data type.

    Returns the decoded value (int, string, or IP address).
    """
    try:
        # IPv4 addresses (network byte order / big-endian)
        if "IPV4" in attr_name or "ADDR_IPV4" in attr_name:
            if len(data) >= 4:
                return f"{data[0]}.{data[1]}.{data[2]}.{data[3]}"

        # SEID and timestamps (U64)
        if "SEID" in attr_name or "TIME" in attr_name:
            if len(data) >= 8:
                return struct.unpack("=Q", data[:8])[0]

        # U32 values (IDs, TEIDs, counters, etc.)
        if attr_name in ["GTP5G_LINK", "GTP5G_FAR_ID", "GTP5G_QER_ID",
                         "GTP5G_PDR_FAR_ID", "GTP5G_PDR_QER_ID", "GTP5G_PDR_URR_ID",
                         "GTP5G_URR_ID", "GTP5G_PDR_PRECEDENCE", "GTP5G_F_TEID_I_TEID",
                         "GTP5G_OUTER_HEADER_CREATION_O_TEID"]:
            if len(data) >= 4:
                return struct.unpack("=I", data[:4])[0]

        # PDR_ID (U16)
        if attr_name == "GTP5G_PDR_ID":
            if len(data) >= 2:
                return struct.unpack("=H", data[:2])[0]

        # U16 values (ports, action flags)
        if attr_name in ["GTP5G_FAR_APPLY_ACTION", "GTP5G_OUTER_HEADER_CREATION_PORT"]:
            if len(data) >= 2:
                return struct.unpack("=H", data[:2])[0]

        # U8 values (flags, QFI, gate status)
        if attr_name in ["GTP5G_PDI_SRC_INTF", "GTP5G_QER_GATE",
                         "GTP5G_QER_QFI", "GTP5G_OUTER_HEADER_REMOVAL"]:
            if len(data) >= 1:
                return struct.unpack("=B", data[:1])[0]

        # String values (paths, policies)
        if attr_name in ["GTP5G_PDR_UNIX_SOCKET_PATH",
                         "GTP5G_FORWARDING_PARAMETER_FORWARDING_POLICY"]:
            return data.decode('utf-8', errors='ignore').rstrip('\x00')

    except Exception:
        pass

    # Fallback: return hex string for unknown types
    return "0x" + data.hex() if data else "(empty)"

The decoder handles various data types including U8, U16, U32, U64, IPv4 addresses, and strings. Nested structures are handled separately in parse_attributes using the nested_mappings dictionary.

3.6 Nested Attribute Handling

GTP5G uses nested attributes for complex structures like PDI (Packet Detection Information):

GTP5G_PDR_PDI (nested)
├── GTP5G_PDI_UE_ADDR_IPV4 (IPv4)
├── GTP5G_PDI_F_TEID (nested)
│   ├── GTP5G_F_TEID_I_TEID (U32)
│   └── GTP5G_F_TEID_GTPU_ADDR_IPV4 (IPv4)
├── GTP5G_PDI_SDF_FILTER (nested)
│   ├── GTP5G_SDF_FILTER_FLOW_DESCRIPTION (nested or string)
│   └── GTP5G_SDF_FILTER_SDF_FILTER_ID (U32)
└── GTP5G_PDI_SRC_INTF (U8)

The decoder maintains a mapping of nested attribute types to their sub-mappings:

# Nested attribute type to sub-mapping lookup
nested_mappings = {
    "GTP5G_PDR_PDI": GTP5G_PDI_ATTRS,
    "GTP5G_PDI_F_TEID": GTP5G_F_TEID_ATTRS,
    "GTP5G_PDI_SDF_FILTER": GTP5G_SDF_FILTER_ATTRS,
    "GTP5G_SDF_FILTER_FLOW_DESCRIPTION": GTP5G_FLOW_DESCRIPTION_ATTRS,
    "GTP5G_FAR_FORWARDING_PARAMETER": GTP5G_FAR_FP_ATTRS,
    "GTP5G_FORWARDING_PARAMETER_OUTER_HEADER_CREATION": GTP5G_OHC_ATTRS,
    "GTP5G_QER_MBR": GTP5G_QER_MBR_ATTRS,
    "GTP5G_QER_GBR": GTP5G_QER_GBR_ATTRS,
    "GTP5G_URR_VOLUME_THRESHOLD": GTP5G_URR_VOLUME_THRESHOLD_ATTRS,
    "GTP5G_URR_VOLUME_QUOTA": GTP5G_URR_VOLUME_QUOTA_ATTRS,
    "GTP5G_UR_VOLUME_MEASUREMENT": GTP5G_UR_VOLUME_MEASUREMENT_ATTRS,
    "GTP5G_UR": GTP5G_REPORT_ATTRS,
    "GTP5G_URR_MULTI_SEID_URRID": GTP5G_URR_MULTI_SEID_URRID_ATTRS,
}

When a known nested attribute is encountered, the parser recursively processes its contents with the appropriate sub-mapping.

The parse_attributes Implementation

The core of TLV parsing is the parse_attributes function. It iterates through the raw bytes, extracting each attribute's length, type, and value while respecting 4-byte alignment:

def parse_attributes(data, mapping):
    """Parse Netlink attributes from binary data.

    Args:
        data: Raw bytes containing Netlink attributes
        mapping: Dictionary mapping attribute type IDs to names

    Returns:
        Dictionary of parsed attributes with decoded values
    """
    attrs = {}
    offset = 0
    length = len(data)

    # Nested attribute type to sub-mapping lookup
    nested_mappings = {
        "GTP5G_PDR_PDI": GTP5G_PDI_ATTRS,
        "GTP5G_PDI_F_TEID": GTP5G_F_TEID_ATTRS,
        "GTP5G_PDI_SDF_FILTER": GTP5G_SDF_FILTER_ATTRS,
        "GTP5G_SDF_FILTER_FLOW_DESCRIPTION": GTP5G_FLOW_DESCRIPTION_ATTRS,
        "GTP5G_FAR_FORWARDING_PARAMETER": GTP5G_FAR_FP_ATTRS,
        "GTP5G_FORWARDING_PARAMETER_OUTER_HEADER_CREATION": GTP5G_OHC_ATTRS,
        "GTP5G_QER_MBR": GTP5G_QER_MBR_ATTRS,
        "GTP5G_QER_GBR": GTP5G_QER_GBR_ATTRS,
        "GTP5G_URR_VOLUME_THRESHOLD": GTP5G_URR_VOLUME_THRESHOLD_ATTRS,
        "GTP5G_URR_VOLUME_QUOTA": GTP5G_URR_VOLUME_QUOTA_ATTRS,
        "GTP5G_UR_VOLUME_MEASUREMENT": GTP5G_UR_VOLUME_MEASUREMENT_ATTRS,
        "GTP5G_UR": GTP5G_REPORT_ATTRS,
        "GTP5G_URR_MULTI_SEID_URRID": GTP5G_URR_MULTI_SEID_URRID_ATTRS,
    }

    while offset < length:
        # Need at least 4 bytes for NLA header (len + type)
        if length - offset < 4:
            break

        nla_len, nla_type = struct.unpack("=HH", data[offset:offset+4])

        # Skip invalid attributes
        if nla_len == 0:
            offset += 4
            continue
        if nla_len < 4 or nla_len > length - offset:
            break

        # Extract type ID (mask out NLA_F_NESTED and NLA_F_NET_BYTEORDER flags)
        type_id = nla_type & 0x3FFF
        attr_name = mapping.get(type_id, f"UNKNOWN_ATTR_{type_id}")

        # Type 0 is a container: expand its contents with same mapping
        if type_id == 0:
            container_data = data[offset+4:offset+nla_len]
            nested_attrs = parse_attributes(container_data, mapping)
            attrs.update(nested_attrs)
            aligned_len = (nla_len + 3) & ~3
            offset += aligned_len
            continue

        # Known nested attributes: recursively parse with appropriate sub-mapping
        if attr_name in nested_mappings:
            nested_data = data[offset+4:offset+nla_len]
            sub_mapping = nested_mappings[attr_name]
            nested_attrs = parse_attributes(nested_data, sub_mapping)
            attrs[attr_name] = nested_attrs
            aligned_len = (nla_len + 3) & ~3
            offset += aligned_len
            continue

        # Regular attribute: decode value based on type
        val_data = data[offset+4:offset+nla_len]
        attrs[attr_name] = decode_value(attr_name, val_data)

        aligned_len = (nla_len + 3) & ~3
        offset += aligned_len

    return attrs

Key insights

  1. 4-Byte Alignment: Netlink requires all attributes to be aligned on 4-byte boundaries. The formula (nla_len + 3) & ~3 rounds up to the next multiple of 4.

  2. NLA Flag Masking: The type field may contain flags (NLA_F_NESTED = 0x8000, NLA_F_NET_BYTEORDER = 0x4000). We mask with 0x3FFF to get the actual type ID.

  3. Container Handling: Type 0 acts as a container that groups related attributes. Its contents are expanded into the parent dictionary.

  4. Recursive Parsing: When an attribute is in nested_mappings, the function calls itself recursively with the appropriate sub-mapping.

  5. Graceful Degradation: Unknown attribute types are labeled as UNKNOWN_ATTR_N rather than causing parse failures, allowing partial decoding of messages with new or unsupported attributes.

4. Command Reference

Based on the gtp5g kernel module source (include/genl.h):

Command ID Name Description
1 CMD_ADD_PDR Create Packet Detection Rule
2 CMD_ADD_FAR Create Forwarding Action Rule
3 CMD_ADD_QER Create QoS Enforcement Rule
4 CMD_DEL_PDR Delete PDR
5 CMD_DEL_FAR Delete FAR
6 CMD_DEL_QER Delete QER
7 CMD_GET_PDR Query PDR
8 CMD_GET_FAR Query FAR
9 CMD_GET_QER Query QER
10 CMD_ADD_URR Create Usage Reporting Rule
11 CMD_ADD_BAR Create Buffering Action Rule
12 CMD_DEL_URR Delete URR
13 CMD_DEL_BAR Delete BAR
14 CMD_GET_URR Query URR
15 CMD_GET_BAR Query BAR
16 CMD_GET_VERSION Get module version
17 CMD_GET_REPORT Get usage report
18 CMD_BUFFER_GTPU Buffer GTP-U packets
19 CMD_GET_MULTI_REPORTS Batch get reports
20 CMD_GET_USAGE_STATISTIC Get statistics

5. Analyzing Common GTP5G Messages

This section walks through real-world GTP5G messages captured during a UERANSIM UE registration and PDU session establishment. Understanding these message patterns helps debug 5G core network issues.

5.1 Message Flow Overview

When a UE connects and establishes a PDU session, the SMF instructs the UPF to create the following rules. The typical creation sequence is:

  1. Create FAR (Forwarding Action Rule) - defines how to forward packets
  2. Create QER (QoS Enforcement Rule) - defines QoS parameters
  3. Create URR (Usage Reporting Rule) - defines usage reporting
  4. Create PDR (Packet Detection Rule) - defines which packets to match and references FAR/QER/URR

Note: PDRs are created last because they reference the other rules by ID.

5.2 Creating a FAR (Forwarding Action Rule)

Decoded Output:

------------------------------------------------------------
GTP5G MESSAGE
Len: 56, FamilyID: 31, Seq: 84
Command: GTP5G_CMD_ADD_FAR (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_FAR_ID: 9
  GTP5G_FAR_SEID: 1
  GTP5G_FAR_APPLY_ACTION: 2
------------------------------------------------------------

Analysis:

  • Command: GTP5G_CMD_ADD_FAR (command ID 2) - Creates a new Forwarding Action Rule
  • LINK: 4 - Network interface index (the gtp5g tunnel device, e.g., upfgtp)
  • FAR_ID: 9 - Unique identifier for this FAR within the session
  • SEID: 1 - Session Endpoint Identifier linking this rule to a PFCP session

  • APPLY_ACTION: 2 - Bitmask defining the action:

    • Bit 0 (0x01): DROP
    • Bit 1 (0x02): FORW (Forward) ← This FAR forwards packets
    • Bit 2 (0x04): BUFF (Buffer)
    • Bit 3 (0x08): NOCP (Notify CP)
    • Bit 4 (0x10): DUPL (Duplicate)

5.3 Creating a PDR (Packet Detection Rule)

PDRs define which packets to match and what actions to apply. Modern PDRs often include SDF (Service Data Flow) filters for fine-grained traffic classification.

Decoded Output (Uplink PDR with SDF Filter):

------------------------------------------------------------
GTP5G MESSAGE
Len: 264, FamilyID: 31, Seq: 95
Command: GTP5G_CMD_ADD_PDR (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_PDR_ID: 9
  GTP5G_PDR_SEID: 1
  GTP5G_PDR_PRECEDENCE: 128
  GTP5G_PDR_PDI:
    GTP5G_PDI_SRC_INTF: 0
    GTP5G_PDI_F_TEID:
      GTP5G_F_TEID_I_TEID: 6
      GTP5G_F_TEID_GTPU_ADDR_IPV4: 192.168.11.130
    GTP5G_PDI_UE_ADDR_IPV4: 10.60.0.100
    GTP5G_PDI_SDF_FILTER:
      GTP5G_SDF_FILTER_FLOW_DESCRIPTION:
        GTP5G_FLOW_DESCRIPTION_ACTION: 1
        GTP5G_FLOW_DESCRIPTION_DIRECTION: 2
        GTP5G_FLOW_DESCRIPTION_PROTOCOL: 255
        GTP5G_FLOW_DESCRIPTION_SRC_IPV4: 0.0.0.0
        GTP5G_FLOW_DESCRIPTION_SRC_MASK: 0.0.0.0
        GTP5G_FLOW_DESCRIPTION_DEST_IPV4: 1.1.1.1
        GTP5G_FLOW_DESCRIPTION_DEST_MASK: 255.255.255.255
        GTP5G_FLOW_DESCRIPTION_SRC_PORT: (none)
        GTP5G_FLOW_DESCRIPTION_DEST_PORT: (none)
  GTP5G_OUTER_HEADER_REMOVAL: 0
  GTP5G_PDR_FAR_ID: 9
  GTP5G_PDR_URR_ID: 8
  GTP5G_PDR_QER_ID: 8
  GTP5G_PDR_UNIX_SOCKET_PATH: /
------------------------------------------------------------

Analysis:

  • Command: GTP5G_CMD_ADD_PDR (command ID 1) - Creates a Packet Detection Rule
  • PDR_ID: 9 - Unique identifier for this PDR
  • PRECEDENCE: 128 - Priority (lower = higher priority). When multiple PDRs match, the one with lowest precedence wins
  • PDI (Packet Detection Information): Nested structure defining match criteria:
    • SRC_INTF: 0 - Source interface (0=Access/N3, indicating uplink traffic)
    • F_TEID: Fully-qualified Tunnel Endpoint ID:
      • I_TEID: 6 - Local TEID allocated by UPF
      • GTPU_ADDR_IPV4: 192.168.11.130 - UPF's N3 interface IP
    • UE_ADDR_IPV4: 10.60.0.100 - Match packets from this UE IP
    • SDF_FILTER: Service Data Flow filter for traffic classification:
      • FLOW_DESCRIPTION: Defines the IP flow to match:
      • ACTION: 1 (permit)
      • DIRECTION: 2 (bidirectional)
      • PROTOCOL: 255 (any protocol)
      • DEST_IPV4/MASK: 1.1.1.1/255.255.255.255 - Match traffic to specific destination
  • OUTER_HEADER_REMOVAL: 0 - Remove GTP-U header (for uplink traffic)
  • FAR_ID: 9 - References the FAR to execute when this PDR matches
  • URR_ID: 8 - References the Usage Reporting Rule for traffic accounting
  • QER_ID: 8 - References the QoS Enforcement Rule

5.4 Creating a QER (QoS Enforcement Rule)

QERs define QoS parameters including gate status, QoS Flow Identifier (QFI), and Maximum Bit Rate (MBR) limits.

Decoded Output (QER with MBR):

------------------------------------------------------------
GTP5G MESSAGE
Len: 100, FamilyID: 31, Seq: 88
Command: GTP5G_CMD_ADD_QER (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_QER_ID: 7
  GTP5G_QER_SEID: 1
  GTP5G_QER_GATE: 0
  GTP5G_QER_MBR:
    GTP5G_QER_MBR_UL_HIGH32: 3906
    GTP5G_QER_MBR_UL_LOW8: 64
    GTP5G_QER_MBR_DL_HIGH32: 3906
    GTP5G_QER_MBR_DL_LOW8: 64
  GTP5G_QER_QFI: 1
------------------------------------------------------------

Analysis:

  • Command: GTP5G_CMD_ADD_QER (command ID 3) - Creates a QoS Enforcement Rule
  • QER_ID: 7 - Unique identifier for this QER
  • GATE: 0 - Gate status (0=OPEN, allowing traffic to pass; 1=CLOSED)
  • MBR (Maximum Bit Rate): Nested structure defining rate limits:
    • UL_HIGH32/LOW8: Uplink rate = (3906 << 8) | 64 = 999,488 kbps ≈ 1 Gbps
    • DL_HIGH32/LOW8: Downlink rate = (3906 << 8) | 64 = 999,488 kbps ≈ 1 Gbps
    • The bit rate is encoded as a 40-bit value split across HIGH32 and LOW8 fields
  • QFI: 1 - QoS Flow Identifier (values 1-63 map to different 5QI classes)
  • SEID: 1 - Links to the PFCP session

Decoded Output (Simple QER without MBR):

------------------------------------------------------------
GTP5G MESSAGE
Len: 64, FamilyID: 31, Seq: 90
Command: GTP5G_CMD_ADD_QER (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_QER_ID: 9
  GTP5G_QER_SEID: 1
  GTP5G_QER_GATE: 0
  GTP5G_QER_QFI: 1
------------------------------------------------------------

This simpler QER only sets the gate status and QFI without rate limiting.

5.5 Deleting Rules (Session Teardown)

When a PDU session ends or rules are updated, the UPF removes associated rules. The deletion sequence typically follows: FAR → QER → URR → PDR.

Decoded Output:

------------------------------------------------------------
GTP5G MESSAGE
Len: 48, FamilyID: 31, Seq: 65
Command: GTP5G_CMD_DEL_FAR (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_FAR_ID: 5
  GTP5G_FAR_SEID: 1
------------------------------------------------------------
GTP5G MESSAGE
Len: 48, FamilyID: 31, Seq: 69
Command: GTP5G_CMD_DEL_QER (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_QER_ID: 5
  GTP5G_QER_SEID: 1
------------------------------------------------------------
GTP5G MESSAGE
Len: 48, FamilyID: 31, Seq: 72
Command: GTP5G_CMD_DEL_URR (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_URR_ID: 8
  GTP5G_URR_SEID: 1
------------------------------------------------------------
GTP5G MESSAGE
Len: 48, FamilyID: 31, Seq: 76
Command: GTP5G_CMD_DEL_PDR (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_PDR_ID: 7
  GTP5G_PDR_SEID: 1
------------------------------------------------------------

Analysis:

  • Delete commands identify specific rules by their ID and SEID
  • FAR deletion: Removes forwarding rule FAR_ID=5 from session SEID=1
  • QER deletion: Removes QoS rule QER_ID=5
  • URR deletion: Removes usage reporting rule URR_ID=8
  • PDR deletion: Removes packet detection rule PDR_ID=7
  • The sequence matters: forwarding rules should be deleted before detection rules to prevent packet loss

Uplink PDR (N3 → N6, packets from UE to internet):

GTP5G_PDR_PDI:
  GTP5G_PDI_SRC_INTF: 0              # Source = Access (N3)
  GTP5G_PDI_F_TEID:                  # Match on incoming GTP-U tunnel
    GTP5G_F_TEID_I_TEID: 6
    GTP5G_F_TEID_GTPU_ADDR_IPV4: 192.168.11.130
  GTP5G_PDI_UE_ADDR_IPV4: 10.60.0.100
GTP5G_OUTER_HEADER_REMOVAL: 0        # Remove GTP-U header

Downlink PDR (N6 → N3, packets from internet to UE):

GTP5G_PDR_PDI:
  GTP5G_PDI_SRC_INTF: 1              # Source = Core (N6)
  GTP5G_PDI_UE_ADDR_IPV4: 10.60.0.100  # Match on UE destination IP
  GTP5G_PDI_SDF_FILTER:              # Optional: filter specific traffic
    GTP5G_SDF_FILTER_FLOW_DESCRIPTION:
      GTP5G_FLOW_DESCRIPTION_SRC_IPV4: 1.1.1.1
      GTP5G_FLOW_DESCRIPTION_SRC_MASK: 255.255.255.255
# No OUTER_HEADER_REMOVAL (FAR will add GTP-U header)

The key differences:

  • Uplink uses SRC_INTF: 0 (Access) and includes F_TEID for tunnel matching
  • Downlink uses SRC_INTF: 1 (Core) and matches on UE_ADDR_IPV4
  • Uplink includes OUTER_HEADER_REMOVAL to decapsulate GTP-U
  • Downlink FAR will include OUTER_HEADER_CREATION for encapsulation

5.7 FAR with Forwarding Parameters (GTP-U Encapsulation)

For downlink traffic, the FAR includes GTP-U encapsulation parameters:

Decoded Output:

------------------------------------------------------------
GTP5G MESSAGE
Len: 96, FamilyID: 31, Seq: 156
Command: GTP5G_CMD_ADD_FAR (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_FAR_ID: 2
  GTP5G_FAR_SEID: 1
  GTP5G_FAR_APPLY_ACTION: 2
  GTP5G_FAR_FORWARDING_PARAMETER:
    GTP5G_FORWARDING_PARAMETER_OUTER_HEADER_CREATION:
      GTP5G_OUTER_HEADER_CREATION_O_TEID: 1
      GTP5G_OUTER_HEADER_CREATION_PEER_ADDR_IPV4: 10.200.200.1
------------------------------------------------------------

Analysis:

  • FORWARDING_PARAMETER: Nested structure for packet encapsulation
  • OUTER_HEADER_CREATION: Defines GTP-U tunnel parameters for outgoing packets:
    • O_TEID: 1 - Outgoing TEID assigned by the gNB
    • PEER_ADDR_IPV4: 10.200.200.1 - gNB's N3 interface IP address

5.8 Usage Reporting (GET_REPORT)

The UPF can query usage reports from URRs to collect traffic statistics:

Decoded Output:

------------------------------------------------------------
GTP5G MESSAGE
Len: 48, FamilyID: 31, Seq: 78
Command: GTP5G_CMD_GET_REPORT (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_URR_ID: 8
  GTP5G_URR_SEID: 1
------------------------------------------------------------
GTP5G MESSAGE
Len: 48, FamilyID: 31, Seq: 81
Command: GTP5G_CMD_GET_REPORT (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_URR_ID: 7
  GTP5G_URR_SEID: 1
------------------------------------------------------------

Analysis:

  • Command: GTP5G_CMD_GET_REPORT (command ID 17) - Queries usage statistics
  • URR_ID: Identifies which Usage Reporting Rule to query
  • SEID: Session Endpoint Identifier
  • The kernel module responds with volume measurements (bytes/packets sent/received)
  • GET_REPORT is typically called before deleting URRs to collect final statistics

5.9 Querying Existing Rules (GET_FAR)

The UPF can query existing rules to verify their state:

Decoded Output:

------------------------------------------------------------
GTP5G MESSAGE
Len: 48, FamilyID: 31, Seq: 99
Command: GTP5G_CMD_GET_FAR (v0)
Attributes:
  GTP5G_LINK: 4
  GTP5G_FAR_ID: 10
  GTP5G_FAR_SEID: 1
------------------------------------------------------------

Analysis:

  • Command: GTP5G_CMD_GET_FAR (command ID 8) - Queries an existing FAR
  • This is often used to check if a FAR exists before updating or to verify rule installation
  • Similar GET commands exist for PDR, QER, URR, and BAR

5.10 Common Debugging Scenarios

Symptom What to Check
UE cannot reach internet Check uplink PDR exists with correct F_TEID and SRC_INTF=0
Internet cannot reach UE Check downlink PDR exists with UE_ADDR_IPV4 and SRC_INTF=1
Packets dropped silently Verify FAR APPLY_ACTION is FORW (0x02), not DROP (0x01)
Wrong destination Check FAR OUTER_HDR_CREATION has correct O_TEID and PEER_ADDR
QoS not applied Verify QER exists, check GATE=0 (OPEN), and PDR has correct QER_ID
Rate limiting not working Check QER MBR values (UL_HIGH32/LOW8, DL_HIGH32/LOW8)
Traffic not matching PDR Verify SDF_FILTER FLOW_DESCRIPTION matches expected traffic pattern
Usage stats missing Ensure URR exists and PDR references correct URR_ID
Session cleanup issues Ensure DEL commands include correct ID and SEID
Rule update failures Use GET commands to verify rule state before modification

6. Conclusion

This deep dive into GTP5G Netlink message decoding illustrates how to bridge the gap between low-level kernel communication and high-level protocol understanding. By leveraging strace output and a custom decoder, developers can gain real-time insights into the 5G User Plane's behavior.

From a protocol analysis perspective, Generic Netlink provides a structured, extensible mechanism for kernel-userspace IPC. The key insight is that Netlink is essentially a message-passing system with typed payloads. Once you understand the 16-byte header structure and 4-byte aligned TLV attributes, any Netlink-based protocol becomes parseable.

For GTP5G specifically, the message flow reveals how the 5G User Plane operates: the SMF orchestrates session rules via PFCP, which the UPF translates into kernel-level PDR/FAR/QER rules through Netlink. By intercepting these messages, we gain visibility into the exact packet matching and forwarding logic installed in the data plane. This visibility is invaluable for understanding and debugging complex 5G core network issues.

References

About Me

My name is Chen, Kuan-Lin. I've recently started diving into the world of 5G Core Networks and contributing to the free5GC project. My future research direction is focused on Network Slicing. I hope this article was helpful to you! If you have any questions or just want to chat about this topic, feel free to reach out and connect with our lab team.
