Optimizing free5GC Through Local UE Traffic and Dedicated UPF: A Multi-Node Helm Deployment Approach

Note

Author: Fang-Kai Ting
Date: 2025/04/16

This guide walks through the steps for deploying and end-to-end testing the free5GC-Helm project. It demonstrates the deployment of two nodes (Core and UPF) within a single Kubernetes cluster, along with a locally deployed UE used for ping-based connectivity testing.

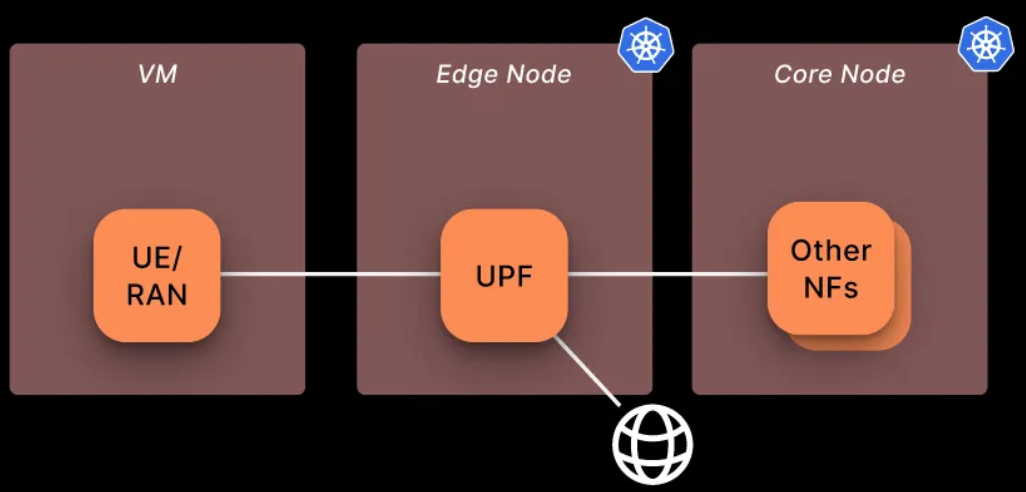

Architecture

Using a local UE, as opposed to deploying the UE and RAN together with the UPF on the same node via Helm, offers greater stability and consistency when establishing PDU sessions.

The architecture is as follows:

  1. The control plane of the 5G core and the MongoDB database are deployed on the vm1 node.
  2. The user plane (UPF) is deployed on the vm2 node within the same Kubernetes cluster.

  3. The UE (User Equipment) and gNodeB simulator, UERANSIM, are deployed locally on a separate vm3 node.


The specifications for each virtualbox VM shown below:

vm name CPU RAM Network Adapter 1 (enp0s3) Network Adapter 2 (enp0s8) OS
vm1(free5GC control plane) ns 8 16G NAT(10.0.2.15) Host-only(192.168.56.119) Ubuntu 20.04 LTS
vm2(free5GC UPF pod) ns2 8 16G NAT(10.0.2.15) Host-only(192.168.56.120) Ubuntu 20.04 LTS
vm3(UE + gNB) ns3 8 16G NAT(10.0.2.15) Host-only(192.168.56.118) Ubuntu 20.04 LTS

Cluster nodes setup(VM1, VM2)

gtp5g install

git clone https://github.com/free5gc/gtp5g.git
cd gtp5g
bash <<EOF
sudo apt -y update
sudo apt -y install gcc g++ cmake autoconf libtool pkg-config libmnl-dev libyaml-dev
make clean && make
sudo make install
EOF

Microk8s install & setup

MicroK8s is used with containerd as the container runtime. MicroK8s automatically installs containerd during its setup. For installation instructions, refer to MicroK8s - Get started

All VMs are configured within the CIDR range 192.168.56.0/24, using the enp0s3 network adapter for internet access.

sudo snap install microk8s --classic --channel=1.32
sudo vim ~/.bash_aliases
alias kubectl='microk8s kubectl'
sudo usermod -a -G microk8s $USER
mkdir -p ~/.kube
chmod 0700 ~/.kube
su - $USER

bash <<EOF
microk8s config > .kube/config
microk8s status --wait-ready
microk8s kubectl get nodes
microk8s enable dns
microk8s enable hostpath-storage
EOF

k8s configuration

  • VM ipv4 forwarding

    cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

Add below in /var/snap/microk8s/current/args/kubelet

  1. The default internal IP for each node is 10.0.2.15, which can hinder inter-node communication. To ensure proper connectivity, update the internal IPs accordingly—for example: vm1 = 192.168.56.119, vm2 = 192.168.56.120.

    --node-ip=<host-only ip>

  2. Ipv4 forwarding

    --allowed-unsafe-sysctls "net.ipv4.ip_forward"

CNI Plugin Configuration

MicroK8s clusters use the Calico CNI by default

  • To enable IP forwarding on UPF, Calico CNI needs some necessary configurations.
  • Some CNI plugin, like Flannel, kube-ovn, allow this funtionality by default

  • Setup Calico CNI for IP Forwarding

    1. /var/snap/microk8s/current/args/cni-network/cni.yaml

      kind: ConfigMap
data:
    cni_network_config: |-
        {
            # ...
            "plugins": [
                {
                    # Append IP forwarding settings
                    "container_settings": {
                        "allow_ip_forwarding": true
                    },
                }
            ]
        }

      kubectl apply -f /var/snap/microk8s/current/args/cni-network/cni.yaml

    2. Restart MicroK8s

      sudo microk8s stop && sudo microk8s start

Multus

Multus is a CNI (Container Network Interface) plugin for Kubernetes that enables pods to have multiple network interfaces. A clear example of this is the UPF, which has the N3, N4, N6 interfaces and optionally the N9. Multus has the capability to “call” other CNI plugins for this purpose.

kubectl apply -f [https://raw.githubusercontent.com/k8snetworkplumbingwg/multus-cni/master/deployments/multus-daemonset.yml](https://raw.githubusercontent.com/k8snetworkplumbingwg/multus-cni/master/deployments/multus-daemonset.yml)

Multi-node microk8s setup

After completing the above MicroK8s configuration, the two nodes can be joined into a single cluster using the following command: MicroK8s - Create a MicroK8s cluster

  • vm1:
    microk8s add-node
    • output example:
      microk8s join 192.168.56.119:25000/92b2db236428470dc4fcfc4ebbd9dc81/2c0cb5284b05
  • vm2:
    • paste output(—worker is optional)

Result:


Helm

Helm is a package manager for Kubernetes that simplifies the deployment and management of applications. It uses Helm charts, which are pre-configured templates that define Kubernetes resources like pods, services, and deployments. Helm enables developers and operators to install, upgrade, or roll back applications with a single command, making Kubernetes workflows more efficient and reproducible. It supports versioning and configuration overrides, allowing teams to maintain consistency across environments. Helm is often compared to tools like apt or yum, but for Kubernetes, making it an essential tool for managing complex, cloud-native applications at scale.

Install

bash <<EOF
curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
chmod 700 get_helm.sh
./get_helm.sh
EOF

Configuration

For a multi-cluster deployment with the UE/gNB hosted on a separate VM, the following modifications should be applied to the values.yaml files of each chart:

Each NF has its own values.yaml file along with a shared global values.yaml; ensure that changes are applied to both configuration files.

  • Ex: free5gc-helm/charts/free5gc/values.yaml and free5gc-helm/charts/free5gc/charts/free5gc-amf/values.yaml …

Notice:

  1. The UPF N3 interface is the most challenging aspect. Since the UE sends packets only to port 2152, the NodePort method is not suitable, and LoadBalancer is designed for HTTP, not UDP traffic. The simplest solution is to configure the UPF's N3 interface to use the host-only subnet, allowing the UE to send packets directly to the N3 interface via that subnet. Alternatively, you can modify only the SMF to advertise the gNB N3 interface as the VM2 host-only IP and use a kube-proxy service to forward packets to the pod IP. This can also be addressed using MACVLAN or IPVLAN CNI plugins to bridge the UPF pod directly onto the host network.For detailed configuration and result, refer to the appendix.
  2. We demonstrate the UPF ULCL configuration here; for a single UPF setup, refer to the section above.
NF parameter current value new value
AMF global.n2network.masterIf eth0 enp0s8
AMF global.amf.service.ngap.enabled false true
SMF global.n4network.masterIf eth0 enp0s8
SMF interfaceType: N3 endpoints 10.100.50.233 192.168.56.19
UPF global.n4network.masterIf eth0 enp0s8
UPF global.n3network.masterIf eth0 enp0s8
UPF global.n3network.subnetIP 10.100.50.232 192.168.56.0
UPF global.n3network.cidr 29 24
UPF global.n3network.gatewayIP 10.100.50.238 empty
UPF global.n3network.excludeIP 10.100.50.238 192.168.56.254
UPF global.n6network.masterIf eth1 enp0s3
UPF global.n6network.subnetIP 10.100.100.0 10.0.2.0
UPF global.n6network.gatewayIP 10.100.100.1 10.0.2.2
UPF global.n6network.excludeIP 10.100.100.254 10.0.2.254
UPF global.n9network.masterIf eth0 enp0s8
UPF upf1.n6if.ipAddress 10.100.100.13 10.0.2.13
UPF upf2.n6if.ipAddress 10.100.100.14 10.0.2.14
UPF upfb.n3if.ipAddress 10.100.50.233 192.168.56.19
UPF upfb.n6if.ipAddress 10.100.100.12 10.0.2.15
ulcl-enabled-values.yaml N3 endpoints 10.100.50.233 192.168.56.19

Persistent Volume for mongoDB

A Persistent Volume (PV) in Kubernetes is a storage resource provisioned independently of pods, enabling data persistence across pod restarts. It decouples storage from containers for stable, reusable storage.

apiVersion: v1
kind: PersistentVolume
metadata:
  name: free5gc-pv-mongo
  labels:
    project: free5gc
spec:
  capacity:
    storage: 8Gi
  accessModes:
  - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  local:
    path: /home/vagrant/kubedata
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          # modify value to your hostname
          - ns

Persistent Volume Claim for mongoDB

A Persistent Volume Claim (PVC) in Kubernetes is a user’s request for storage, specifying size and access mode. It binds to a Persistent Volume, enabling pods to use persistent storage seamlessly.

apiVersion: v1
kind: PersistentVolume
metadata:
  name: free5gc-pv-cert
  labels:
    project: free5gc  # Must match the selector in PVC
spec:
  capacity:
    storage: 1Mi  # Must match the PVC request exactly
  accessModes:
    - ReadOnlyMany  # Must match the PVC access mode
  persistentVolumeReclaimPolicy: Retain
  local:
    path: /home/vagrant/certdata  # Ensure this directory exists on the correct node
  volumeMode: Filesystem
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - ns  # Ensure this is the correct node name

Multi-node configuration

Change the nodeSelector field in each NF's values.yaml file. For example, update the UPF nodeSelector to correspond to ns2, and set the nodeSelector for other NFs to ns

Before
nodeSelecotr: {}
After
nodeSelector:
  # your desired node's host name
  kubernetes.io/hostname: ns

Run

After above configuration, we can build core and upf now.

  1. Run Core & UPF

    kubectl create ns free5gc
kubectl apply -f persistent-vol-for-mongodb.yaml
kubectl apply -f persistent-vol-for-cert.yaml
helm -n free5gc install free5gc-v1 ./free5gc/

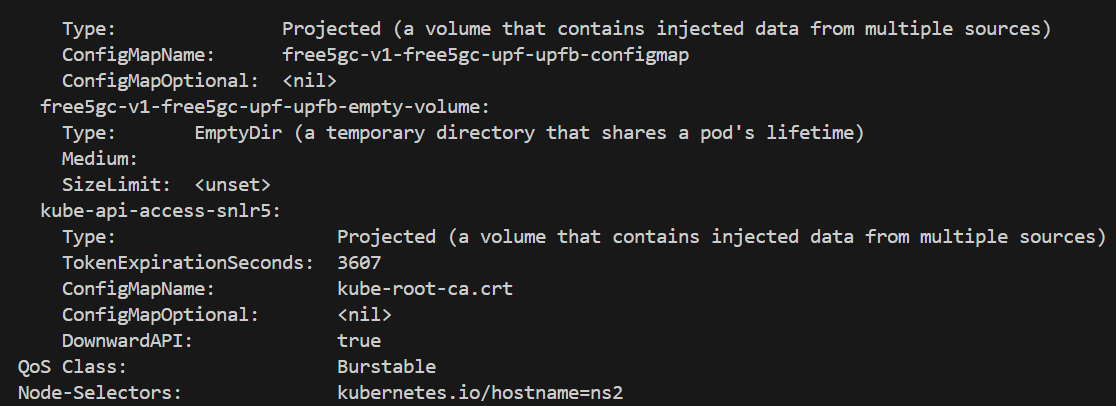

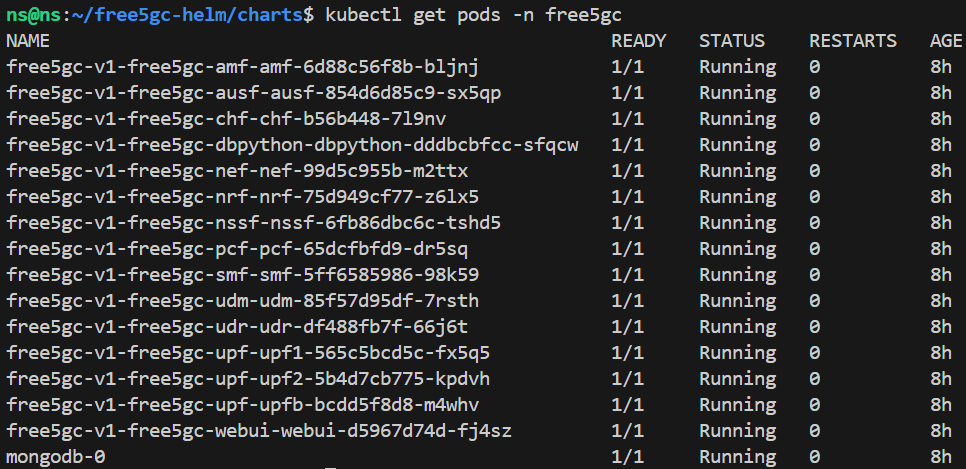

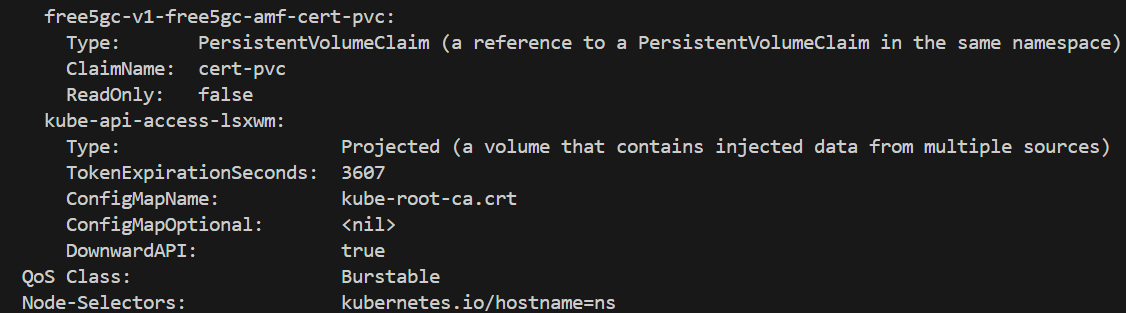

  2. Check NF deployment node

    1. UPF in ns2


    2. Other NF in ns


  3. Test the UPF forwarding by checking the output, which should be "1". If the output is different, ensure that the CNI and OS ipv4_forwarding configurations are correctly set.You can also refer to the appendix, under the Security Pod section, for more details.

    kubectl exec -it -n free5gc <upf-pod-name-above> \
-- cat /proc/sys/net/ipv4/ip_forward

  4. Check UPF N4 connection

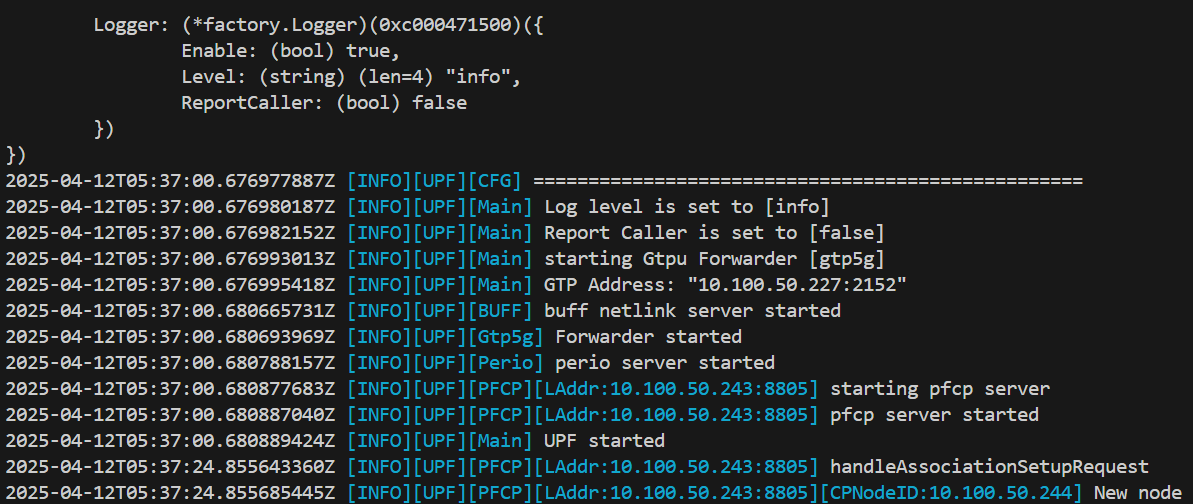

    kubectl logs <upf-pod-name> -n free5gc


Local UE VM3 deployment

Install UERANSIM

https://github.com/aligungr/UERANSIM

cd UERANSIM
bash <<EOF
sudo apt install make -y
sudo apt install gcc -y
sudo apt install g++ -y
sudo apt install libsctp-dev lksctp-tools -y
sudo apt install iproute2 -y
sudo snap install cmake --classic
EOF
# Be sure to use snap install cmake --classic for suitable cmake version
make

AMF service expose

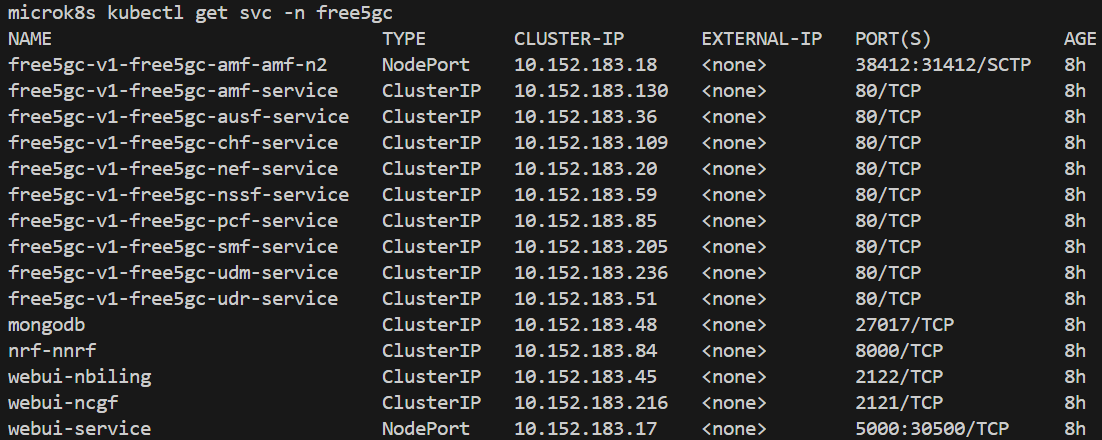

free5GC has the AMF N2 service configured as a ClusterIP by default, which prevents direct access to the pod on port 38412. To allow the local UE to connect, you need to change the service type to NodePort.

kubectl patch svc free5gc-v1-free5gc-amf-amf-n2 -n free5gc -p '{"spec": {"type": "NodePort"}}'

You can see 31412 is the port exposed.


Configuration

UERANSIM/config/free5gc-gnb.yaml

current value new value notes
ngapIp 127.0.0.1 192.168.56.118 VM3 host-only ip
gtpIP 127.0.0.1 192.168.56.118 VM3 host-only ip
amfConfig.address 127.0.0.1 192.168.56.119 VM1 host-only ip
amfConfig.port 38412 31412 above exposed port

End-to-end test

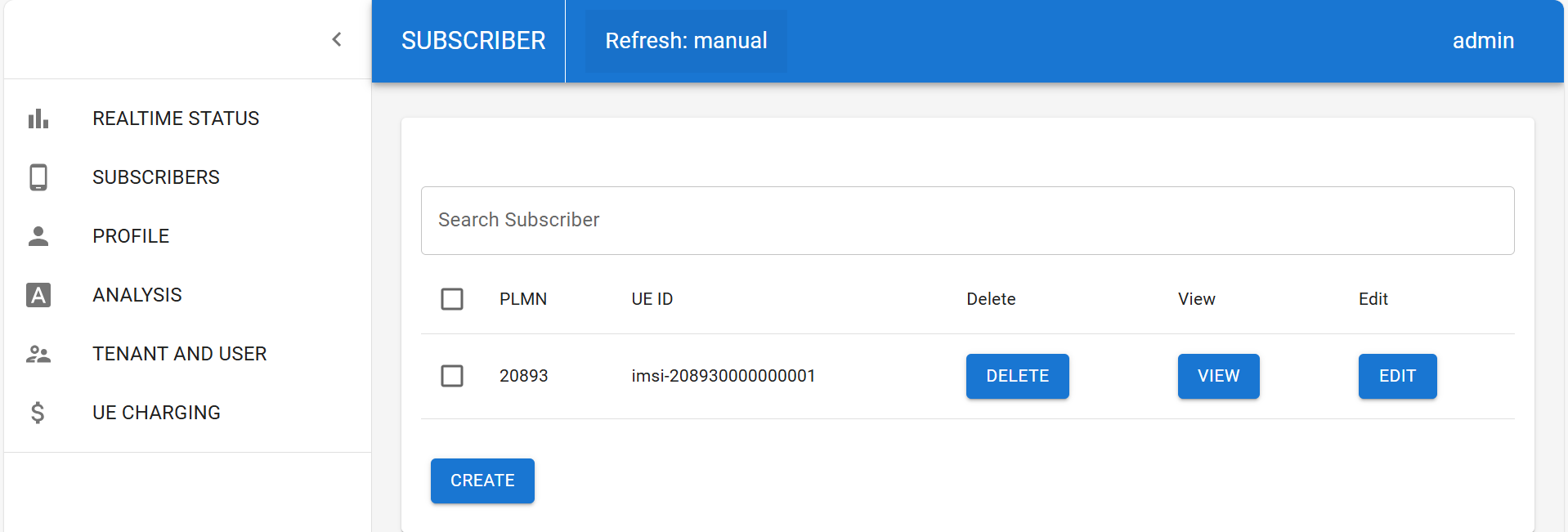

  1. Subscribe UE in webconsole

    1. In VM1, expose the service for subscription

      kubectl port-forward --address 192.168.56.119 --namespace free5gc svc/webui-service 5000:5000

    2. Login to 192.168.56.119:5000 using the credentials (admin, free5gc), and create a subscriber using the default settings.


  2. You need three terminal

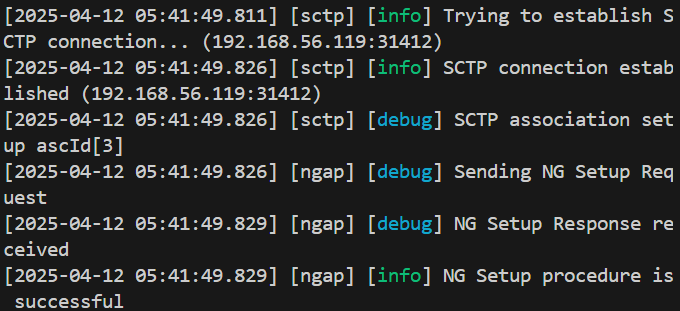

    1. terminal 1: create gNB

      ./build/nr-gnb -c config/free5gc-gnb.yaml

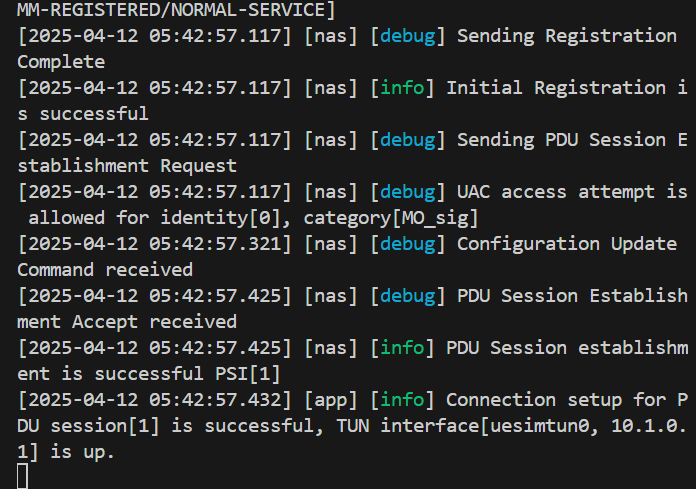

    2. terminal 2: create UE

      sudo ./build/nr-ue -c config/free5gc-ue.yaml

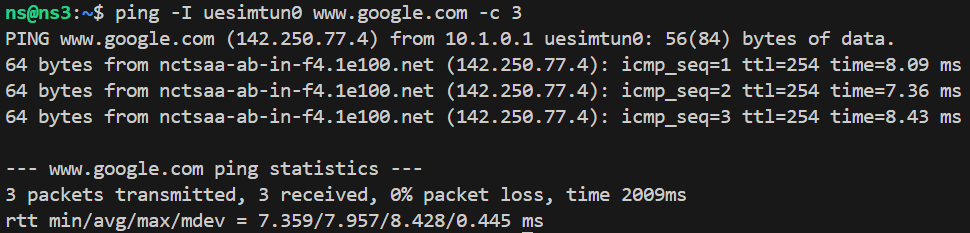

    3. terminal 3: ping test


  3. Check

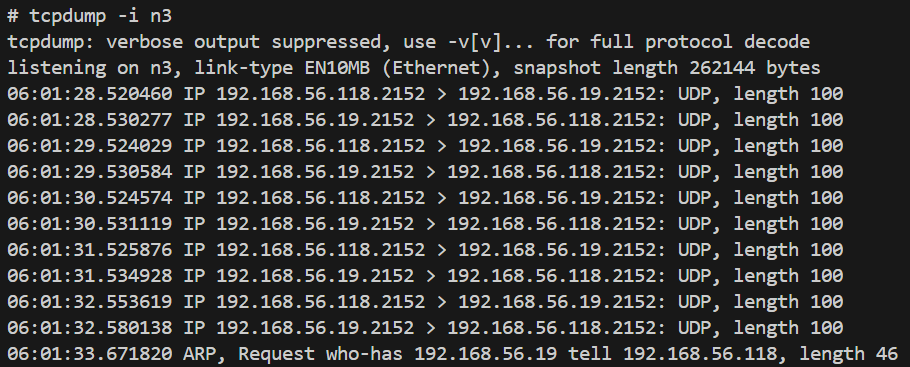

    1. In the UPF pod, install tcpdump (ensure a nameserver is configured, as the current UPF pod lacks DNS resolution).

      echo "nameserver 8.8.8.8" >> /etc/resolv.conf & apt install tcpdump -y

      1. N3 if

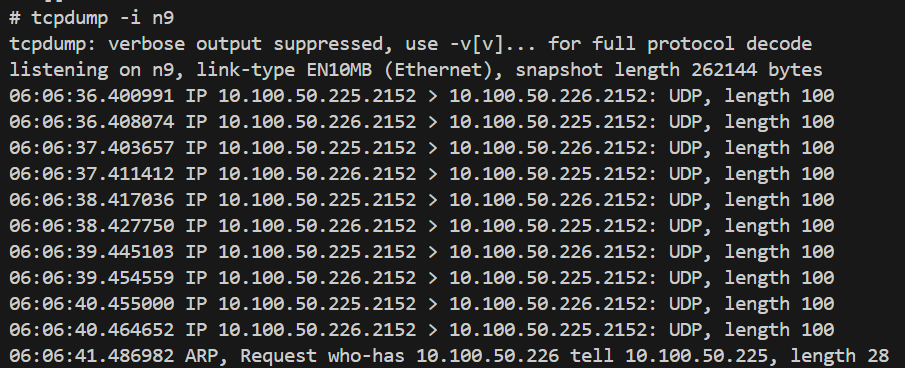

      2. N9 if


    2. In upf1, install tcpdump too

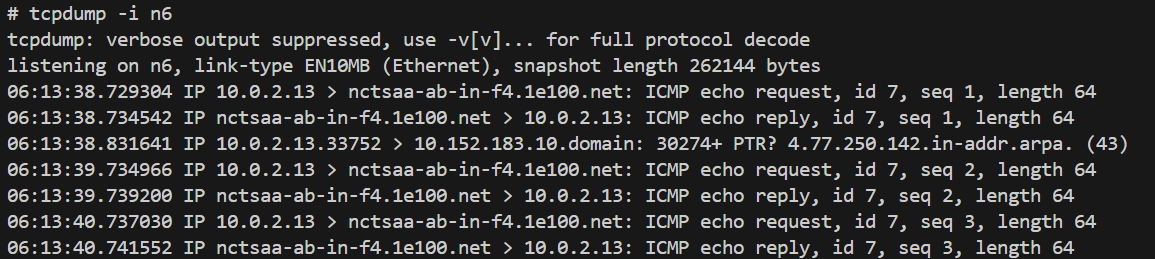

      1. N6 if

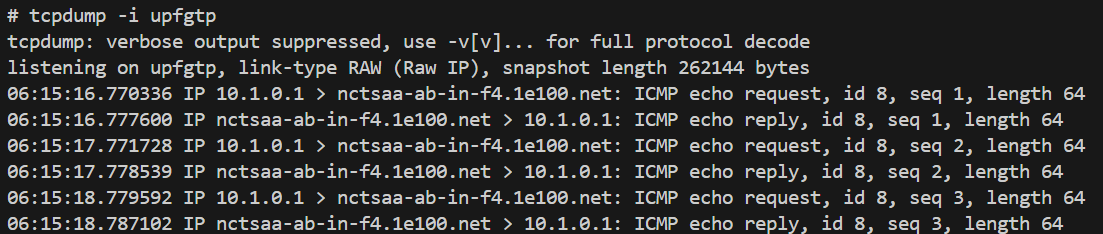

      2. upfgtp


Appendix

ClusterIP service & kube-proxy

I attempted to use a ClusterIP service with kube-proxy to forward UE packets from the VM2 host-only IP to the UPF pod IP, but the packets are being lost after being forwarded to the pod IP. This issue remains unresolved.

  1. kube-proxy service

    apiVersion: v1
kind: Service
metadata:
  name: free5gc-upf-n3-externalip-service
  namespace: free5gc
spec:
  type: ClusterIP
  selector:
    app.kubernetes.io/instance: free5gc-v1
    app.kubernetes.io/name: free5gc-upf
    nf: upfb
    project: free5gc
  ports:
    - name: n3-gtpu
      protocol: UDP
      port: 2152          # Service 在叢集內部以及外部監聽的埠
      targetPort: 2152    # UPF Pod 容器實際監聽的 GTP-U 埠
  externalIPs:
    - 192.168.56.120     # 指定 Service 監聽 vm2 的 IP 地址

  2. add --masquerade-all=true in /var/snap/microk8s/current/args/kube-proxy

Can see src=10.1.4.159, mean flow-in DNAT success, but something went wrong after packet go inside upfb pod.


Local registry

Docker Hub may throttle the UPF pod due to excessive image pull requests (affecting only the UPF pod, for reasons unclear). To avoid this, set up a local registry and use a locally built UPF image.

sudo microk8s enable registry
docker pull free5gc/upf:v4.0.0
docker tag free5gc/upf:v4.0.0 localhost:32000/free5gc/upf:v4.0.0
docker push localhost:32000/free5gc/upf:v4.0.0

Update all UPF image names from name: localhost:32000/free5gc/upf to name: free5gc/upf.
You can also refer to my Git commit for further details.
- https://github.com/qawl987/free5gc-helm/commit/7d82f68060596954cc0139f5a5a160f235e53f3a

Security pod

Some VMs require the following additional setting for UPF. If you've already configured all ipv4_forwarding options, add the configuration below to all UPF pods as well.

free5gc-upf:
  upf1:
    podSecurityContext:
      sysctls:
        - name: net.ipv4.ip_forward
          value: "1"

Conclusion

This guide walks through the steps for deploying and end-to-end testing the free5GC-Helm project. It demonstrates the deployment of two nodes (Core and UPF) within a single Kubernetes cluster, along with a locally deployed UE used for ping-based connectivity testing.
