A Practical Guide to Network Slicing and Traffic Steering with free5GC and OAI-MEC

Note

Author: Fang-Kai Ting
Date: 2025/07/03

This guide provides a step-by-step walkthrough for implementing advanced 5G features on a free5GC deployment. It demonstrates how to configure OAI-MEC, create multiple network slices, and manage data paths using traffic steering with an Application Function (AF), culminating in a multi-slice, multi-MEC application architecture.

Acknowledgements

Special thanks to wilson30139 for providing many of the configuration files used in this lab. This article would not have been possible without his contributions.

Intro

In a previous article, we described an architecture where the UPF is deployed on an edge node, with the rest of the core network functions residing on a central core node. We then ran a ping test using a local UE to validate the setup.

This time, we will build upon that foundation by using the network slicing and traffic steering capabilities of the free5GC core. We will deploy a cluster containing two network slices. Each slice will have its own dedicated UPF and a simple Multi-access Edge Computing (MEC) application on the edge node. The main core network will host the other NFs and an identical application. This setup simulates a scenario where users in each network slice have a dedicated data plane and a specialized MEC application.

For the detailed VM configuration, please refer to the previous article. All VM and cluster settings for this tutorial will remain the same.

Optimizing free5GC Through Local UE Traffic and Dedicated UPF: A Multi-Node Helm Deployment Approach - free5GC

It's important to note that we are using free5GC v3.4.5, because v4.0.0 does not support traffic steering for the NEF (Network Exposure Function).

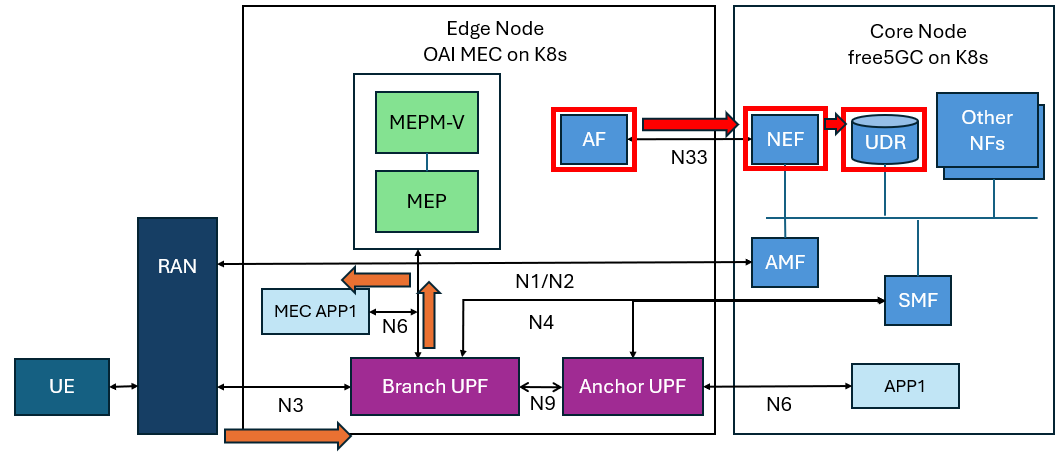

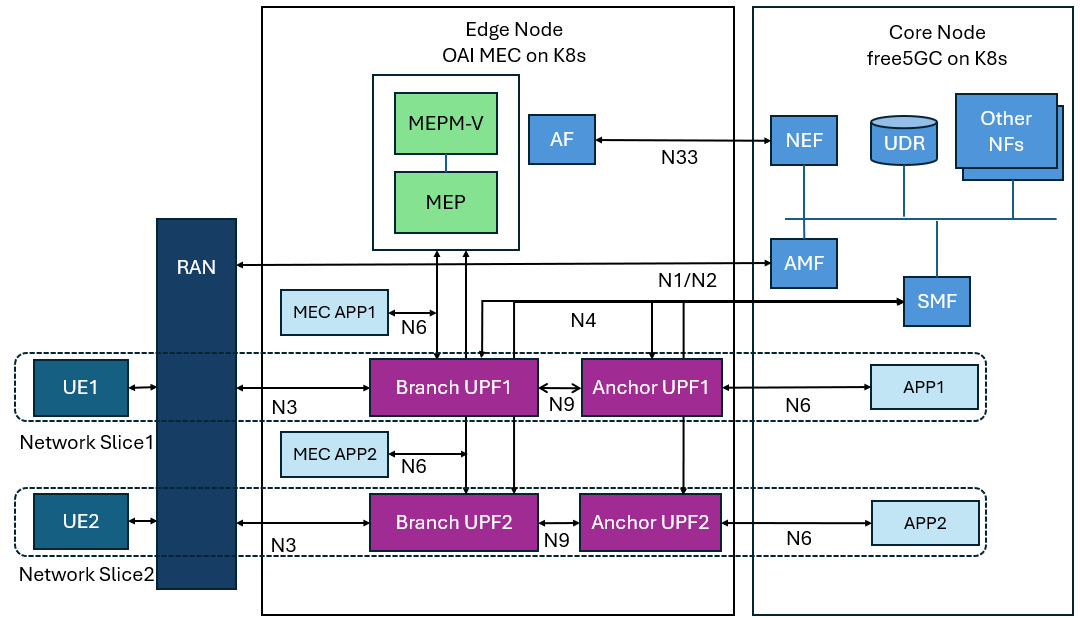

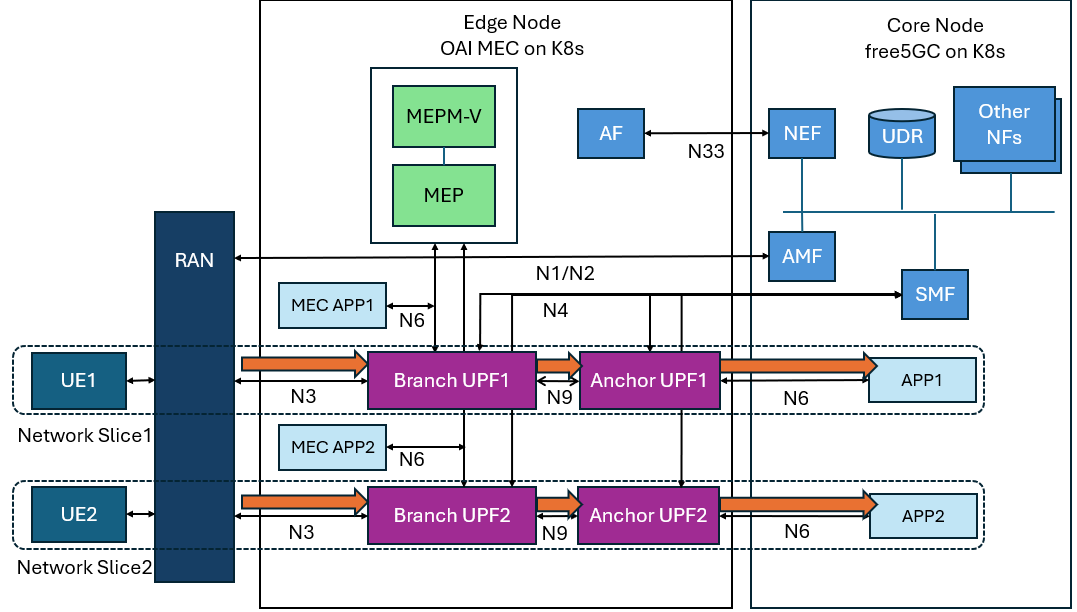

The diagram below illustrates the final architecture. This article will guide you through three experiments to build this setup step-by-step.

Lab outline

Part 1: OAI-MEC Installation
Base on previous article structure, add the MEC Platform (MEP) and a MEC application, and then complete a basic ping test to verify the setup.

Part 2: OAI-MEC App with Traffic Steering
Integrate the OpenNESS Application Function (AF). Then, use the AF and the Network Exposure Function (NEF) to send new packet routing rules to the network.

Part 3: Two Slices with Two MEC Apps and Traffic Steering
Create and deploy two network slices. Next, use the MEP's gateway and registry mechanisms to enable service discovery for the MEC applications. Finally, apply traffic steering to achieve independent traffic control for each of the two slices.

Each of the three experiments will cover the following sections:

Architecture
Tools Introduction
Implementation and Configuration
Execution Commands and Results

Lab 1: Installing the OAI-MEC Platform

Architecture

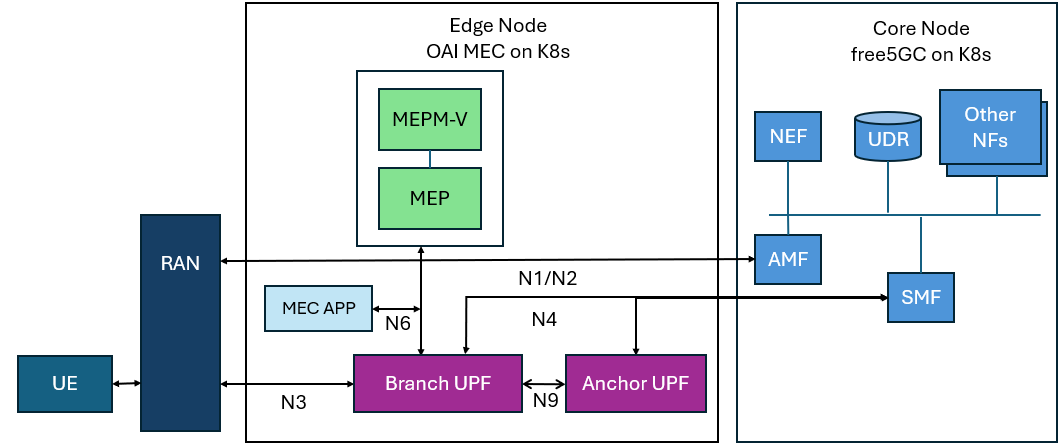

Lab 1 will begin by deploying a MEC application on the edge node. We will then modify the UPF configuration to allow the UE (User Equipment) to route traffic to the external network via the uesimtun0 interface, and also to direct traffic to the MEC application.
We will use the OAI-MEC platform, available at OAI MEP repo. In the diagram, the green component represents the MEP (Multi-access Edge Computing Platform), which manages the entire lifecycle of the MEC application.

Tools Introduction

OAI-MEC

OAI-MEC is a project under the OpenAirInterface (OAI) banner that focuses on developing an open-source Multi-access Edge Computing (MEC) platform. It is designed to be compliant with the European Telecommunications Standards Institute (ETSI) MEC standards.

The project provides key components like the MEC Platform (MEP) and a Radio Network Information Service (RNIS), enabling the deployment and management of edge applications. By integrating with OAI's 5G core and Radio Access Network (RAN), OAI-MEC allows developers and researchers to explore, test, and innovate on low-latency applications and services at the network edge, which is crucial for 5G use cases.

OAI MEP registry
This component tells the OAI MEP gateway where to find registered MEC applications and services.
OAI MEP registry DB
This database stores the service information that the OAI MEP registry relies on to function.
OAI MEP gateway
It receives API requests, asks the OAI MEP registry for the correct service location, and then forwards the request accordingly. It reads its own rules from the OAI MEP gateway DB.
OAI MEP gateway DB
This database holds the configuration rules that the OAI MEP gateway uses to manage and route traffic.
OAI kong migration
This is a process used to update the configuration data within the OAI MEP gateway DB, which in turn changes the behavior of the OAI MEP gateway.

Implementation and Configuration

Place oai-mec and oai-mep under the free5GC-helm/charts directory as shown in the diagram.

The oai-mep and oai-mec-app are configuration files provided by wilson30139, which are modified from the original files at OAI GitLab.

The original files can be found at this commit: MEP and MEC app file. You can copy and modify them as needed.

For detailed reference on IP address modifications and other changes, see this commit: MEP and MEC app modification.

├── charts
│   ├── app
│   ├── free5gc-amf
...
│   ├── free5gc-webui
│   ├── oai-mec-app
                ├── charts
                ├── Chart.yaml
                ├── templates
                │   ├── _helpers.tpl
                │   ├── mec-app-1
                │   │   ├── mec-app-1-configmap.yaml
                │   │   ├── mec-app-1-deployment.yaml
                │   │   ├── mec-app-1-nad.yaml
                │   │   └── mec-app-1-service.yaml
                │   └── NOTES.txt
                └── values.yaml
│   ├── oai-mep
                ├── charts
                ├── Chart.yaml
                ├── templates
                │   ├── _helpers.tpl
                │   ├── kong-migration
                │   │   ├── kong-migration-job.yaml
                │   │   └── kong-migration-nad.yaml
                │   ├── mep-gateway
                │   │   ├── mep-gateway-deployment.yaml
                │   │   ├── mep-gateway-nad.yaml
                │   │   └── mep-gateway-service.yaml
                │   ├── mep-gateway-db
                │   │   ├── mep-gateway-db-deployment.yaml
                │   │   ├── mep-gateway-db-nad.yaml
                │   │   └── mep-gateway-db-service.yaml
                │   ├── mep-registry
                │   │   ├── mep-registry-deployment.yaml
                │   │   ├── mep-registry-nad.yaml
                │   │   └── mep-registry-service.yaml
                │   ├── mep-registry-db
                │   │   ├── mep-registry-db-deployment.yaml
                │   │   ├── mep-registry-db-nad.yaml
                │   │   └── mep-registry-db-service.yaml
                │   └── NOTES.txt
                └── values.yaml
│   └── openness-af

Modify all YAML configuration files for the MEP and MEC app.

This includes, but is not limited to, updating the settings for the following components within the MEP:

MEP gateway DB IP address
MEP registry DB IP address
kong-migration service
MEP gateway IP address
MEP registry IP address
MEC app IP address
Edge node name
NAT network interface card name
NAT network interface card

An example of the required IP address modifications is shown in the figure below.

Name	IP Address
OAI MEP Gateway DB	10.0.2.3
OAI MEP Registry DB	10.0.2.4
OAI Kong Migration	10.0.2.5
OAI MEP Gateway	10.0.2.6
OAI MEP Registry	10.0.2.7
OAI MEC App 1	10.0.2.105
2. Modify the UPFb and UPF1 configurations.

# file path: charts/free5gc/charts/free5gc-upf/templates/upf1/upf1-configmap.yaml
iptables -A FORWARD -j ACCEPT
iptables -t nat -A POSTROUTING -s {{ $.Values.global.uesubnet }} -o n6 -j MASQUERADE
echo "1200 n6if" >> /etc/iproute2/rt_tables
ip rule add from {{ $.Values.global.uesubnet }} to 10.0.2.0/24 lookup main prio 20000
ip rule add from {{ $.Values.global.uesubnet }} table n6if prio 25000
ip route add default via {{ $.Values.global.n6network.gatewayIP }} dev n6 table n6if

# file path: charts/free5gc/charts/free5gc-upf/templates/upfb/upfb-configmap.yaml
iptables -A FORWARD -j ACCEPT
iptables -t nat -A POSTROUTING -s {{ $.Values.global.uesubnet }} -o n6 -j MASQUERADE  # Allow routing traffic comming from the UE SUBNET to the interface N6
iptables -t nat -A POSTROUTING -o n9 -j MASQUERADE
iptables -t nat -A POSTROUTING -o n3 -j MASQUERADE
ip rule add from {{ $.Values.global.uesubnet }} to 10.0.2.0/24 lookup main prio 20000

When a UE pings the MEC app, the default UPF rule inspects the routing table of the N6 interface. However, the n6if routing table only contains a default route: default via 10.0.2.2 dev n6.

Therefore, a new rule must be added. This rule will ensure that when an IP packet originates from the uesubnet and is destined for the 10.0.2.0/24 network, the system will use the main routing tables of upfb and upf1 to find the correct forwarding path to the mec-app.

ip rule add from {{ $.Values.global.uesubnet }} to 10.0.2.0/24 lookup main prio 20000
ip rule add from {{ $.Values.global.uesubnet }} table n6if prio 25000

Execution Commands and Results

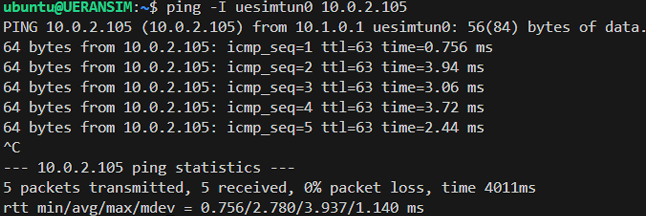

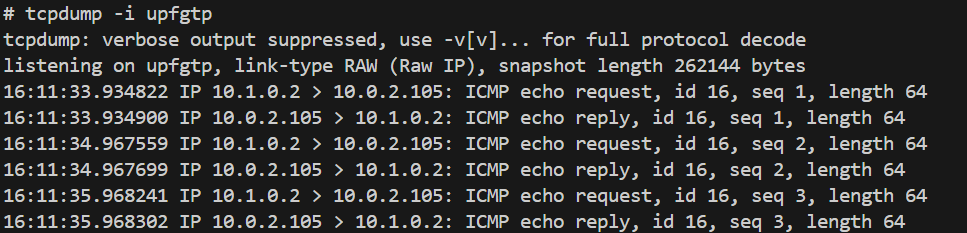

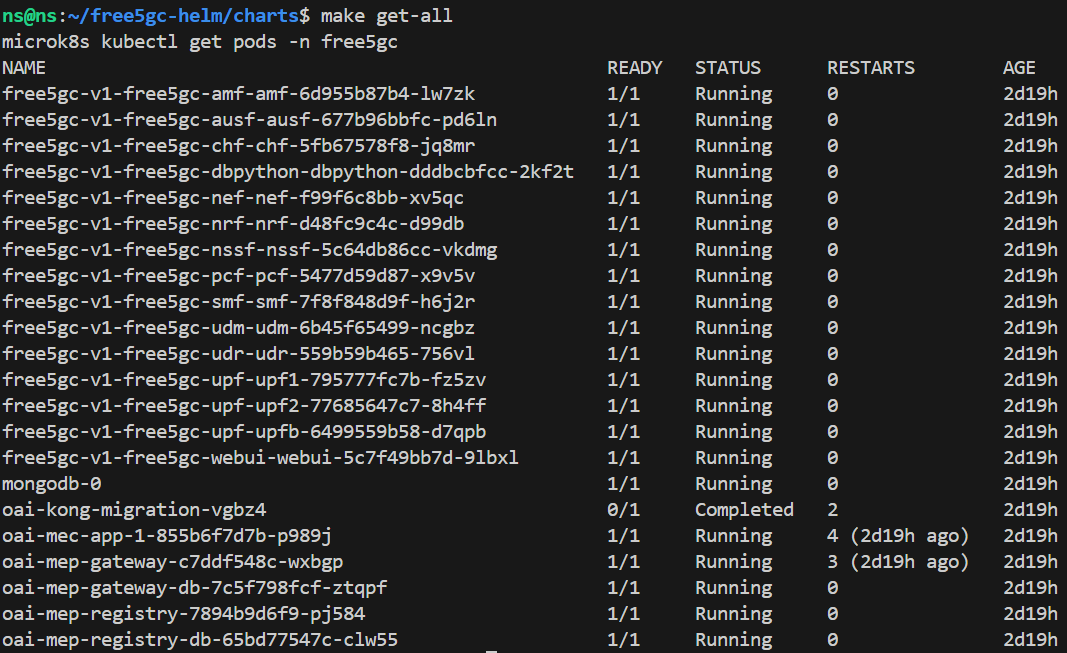

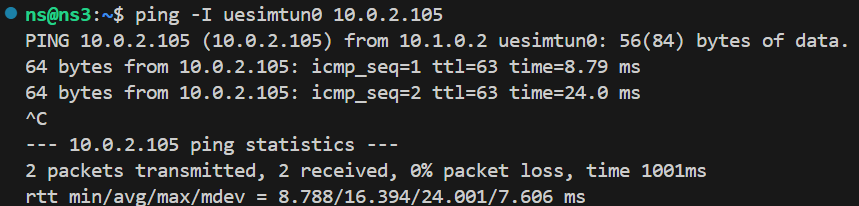

After the deployment is complete, you can ping the MEC app from the uesimtun0 interface. The traffic will be routed through upfb and upf1.

Lab 2: Traffic Steering

Architecture

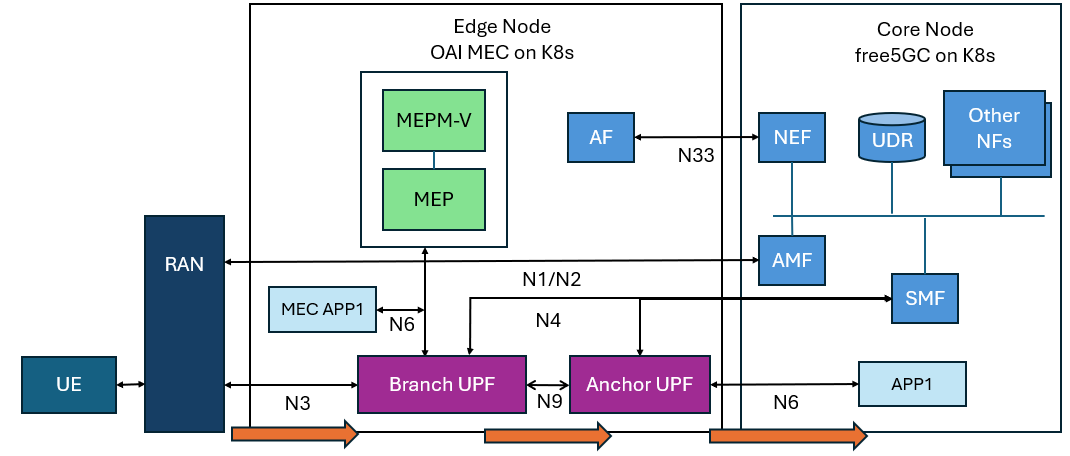

In lab1, add a new app to the core network that is identical to the MEC app. Then, configure traffic steering to redirect traffic, which would normally be routed to this new core application, to the MEC app instead.

Since both the ping command and traffic steering rules operate based on the destination IP address, the core application and the MEC app must be assigned the same IP address. As a result, they can share the same Network Attachment Definition (NAD).

After traffic steering: Branch UPF → Anchor UPF→app1
After traffic steering: Branch UPF → mec-app1

Tools Introduction

AF

The Application Function (AF) is a crucial element in the 5G architecture that allows external applications to interact with the 5G core network. Its primary role is to influence network behavior based on application-specific requirements.

The AF provides information to the Policy Control Function (PCF) via the Network Exposure Function (NEF), enabling it to make informed decisions about Quality of Service (QoS) and traffic routing.

This allows the network to dynamically create and manage PDU sessions.

Implementation and Configuration

AF

This is not part of the official free5GC project, so you need to add the AF (Application Function) Image to the Edge Node separately.

git clone [https://github.com/danielh1204/opennessAF.git](https://github.com/danielh1204/opennessAF.git)
cd opennessAF/af
docker build -t af .
docker save af:latest -o af.tar
docker tag af:latest localhost:32000/af:latest
docker push localhost:32000/af:latest
1. This step uses the local registry feature of MicroK8s.
2. microk8s enable registry

The charts for openness-af are available in this commit: OpenNESS af file, and are also provided by wilson30139. You can download and modify them.

For detailed configuration changes, please refer to this commit: OpenNESS af modification.

App

Copy the MEC app folder and rename it to app. This will be the application deployed on the core network, serving as the initial target for traffic steering.

ti_data.json

This is the configuration file for traffic steering, which can be modified according to your specific requirements.

dnn
dnai

flowdescription

{
    "afServiceId": "Service1",
    "dnn": "internet",
    "snssai": {
        "sst": 1,
        "sd": "010203"
    },
    "anyUeInd": true,
    "notificationDestination": "http://af:8000/test123",
    "trafficFilters": [
        {
            "flowId": 1,
            "flowDescriptions": [
                "permit out ip from 10.0.2.105 to [uesubnetip](ex:10.1.0.0/24)"
            ]
        }
    ],
    "trafficRoutes": [
        {
            "dnai": "mec"
        }
    ]
}

Execution Commands and Results

AF request (Below command all run inside AF pod)

kubectl exec -it [AF Pod Name] -n free5gc -- sh
vim ti_data.json
1. Paste the ti_data.json configuration from above. If needed, modify the uesubnet section to 10.1.0.0/24.
2. If you cannot use curl or vim within the AF pod, simply add them to the installation command in the AF Dockerfile.
curl -X POST -H "Content-Type: application/json" --data @./[File Name] http://[NEF Service IP Address]/3gpp-traffic- influence/v1/af001/subscriptions
1. ex: curl -X POST -H "Content-Type: application/json" --data @./ti_data.json [http://10.152.183.217:80/3gpp-traffic-influence/v1/af001/subscriptions](http://10.152.183.217/3gpp-traffic-influence/v1/af001/subscriptions)

Ping test

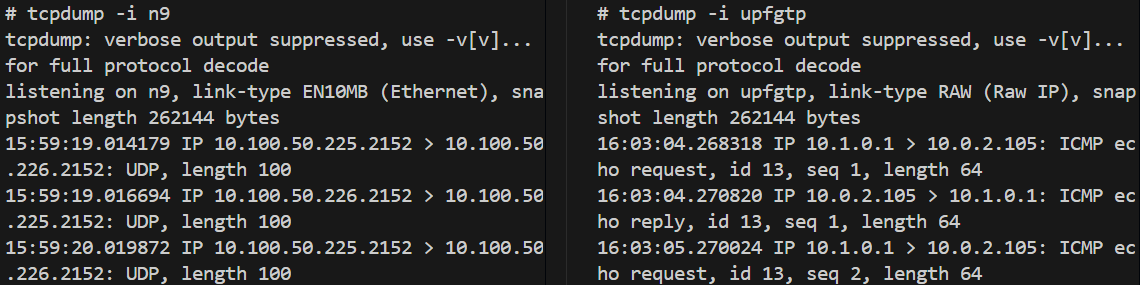

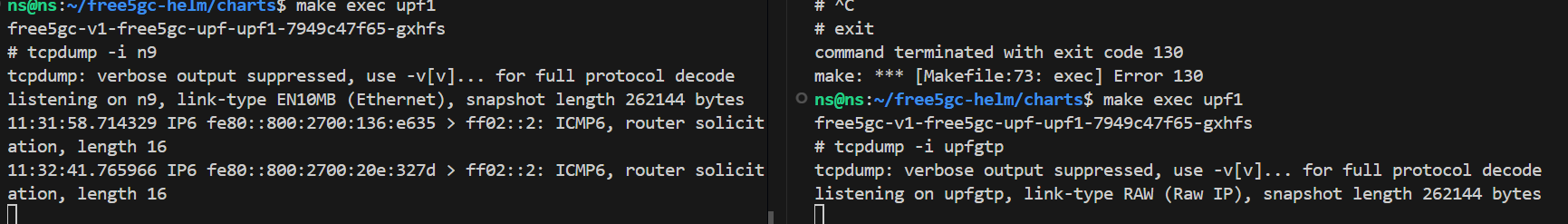

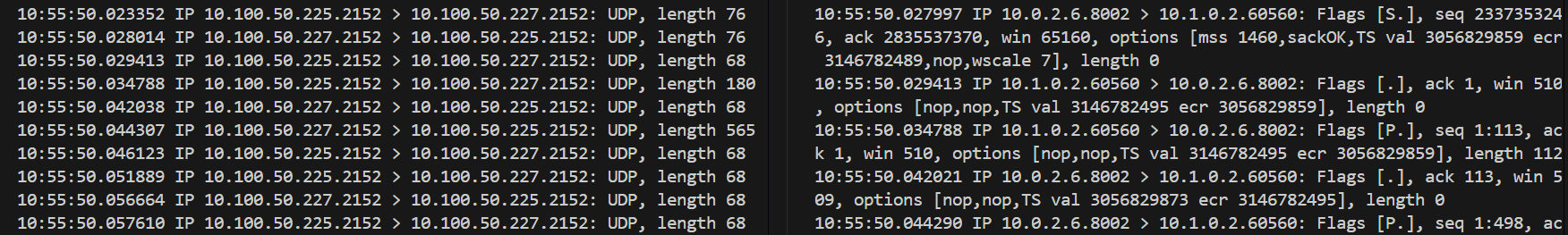

Before traffic steering:
- Left side: upfb.n9 | Right side: upf1.upfgtp
- upfb.n9 → upf1.upfgtp

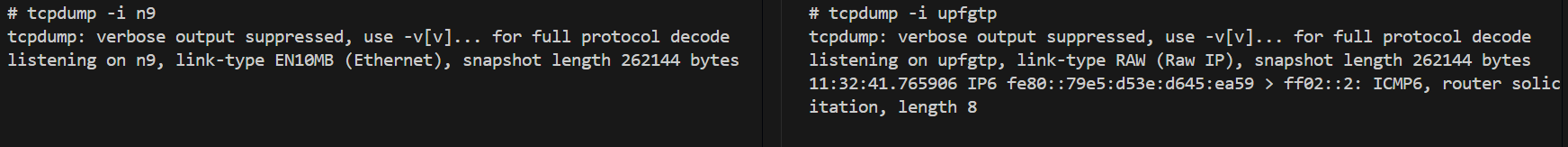

After traffic steering:
- upfb.upfgtp

Lab 3: Two slice with two MEC-app with traffic steering

Architecture
Tools Introduction
Implementation and Configuration
Execution Commands and Results

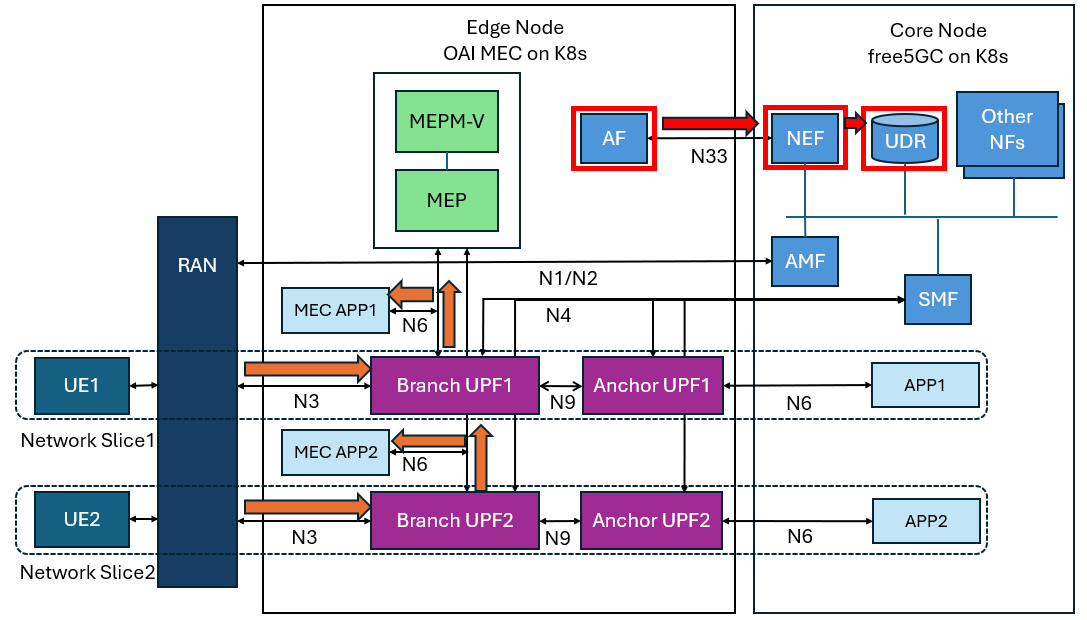

Architecture

In Lab 3, you will need to use the web console to create two network slices. In the SMF and UPF configurations, you will then set up the traffic to route through its dedicated network slice. Finally, you will use traffic steering to control the traffic flow to the MEC app.

First network slice (dedicated resources):

Branch UPF1
OAI MEC app 1
Anchor UPF1
app 1

Second network slice (dedicated resources):

Branch UPF2
OAI MEC app 2
Anchor UPF2
app 2

Shared Resources:

Core Network NFs
OAI-MEP
AF

Tools Introduction

Network Slicing

In free5GC, different network slices are distinguished using identifiers such as the S-NSSAI (Single Network Slice Selection Assistance Information) and DNN (Data Network Name).

This allows each slice to be configured with its own dedicated UPF, making it possible to provide specialized services and guarantee specific QoS levels for each slice.

Implementation and Configuration

AMF, SMF, UPF config

Referring to the architecture diagram above, here are the UPF names and their corresponding interface IP addresses.

branch upf1: upfb

branch upf2: upfb2

anchor upf1: upf1

anchor upf2: upf2

	upfb	upfb2	upf1	upf2
N3	192.168.56.19	192.168.56.38	X	X
N4	10.100.50.241	10.100.50.242	10.100.50.243	10.100.50.245
N6	10.0.2.15	10.0.2.16	10.0.2.13	10.0.2.14
N9	10.100.50.225	10.100.50.226	10.100.50.227	10.100.50.228

The detailed configuration file for the following can be found in AMF, SMF, UPF modification

AMF

Add internet2 to the supportDnnList.

SMF

Addition to snssaiInfos

- sNssai:Add commentMore actions
      sst: 1
      sd: 112233
    dnnInfos: # DNN information list
      - dnn: internet2 # Data Network Name
        dnaiList:
          - mec2
        dns: # the IP address of DNS
          ipv4: 8.8.8.8
          ipv6: 2001:4860:4860::8888

You need to configure userplaneInformation and ueRoutingInfo with the corresponding IP addresses and specify the specific paths for the two UEs.

UPF

First, add a new UPF instance named upfb2.

Then, modify the Helm template file at free5gc-upf/templates/_helpers.tpl to update the configurations for all relevant UPF instances: upf1, upf2, upfb, and the new upfb2.

Create a new network slice

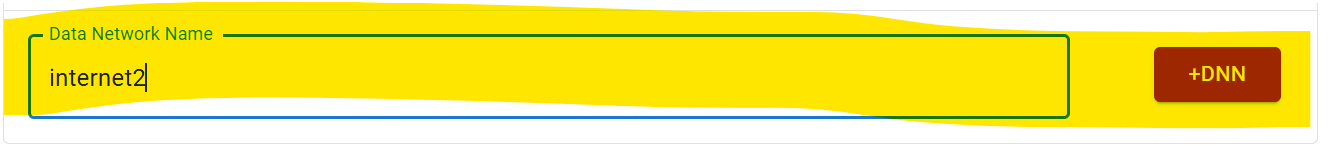

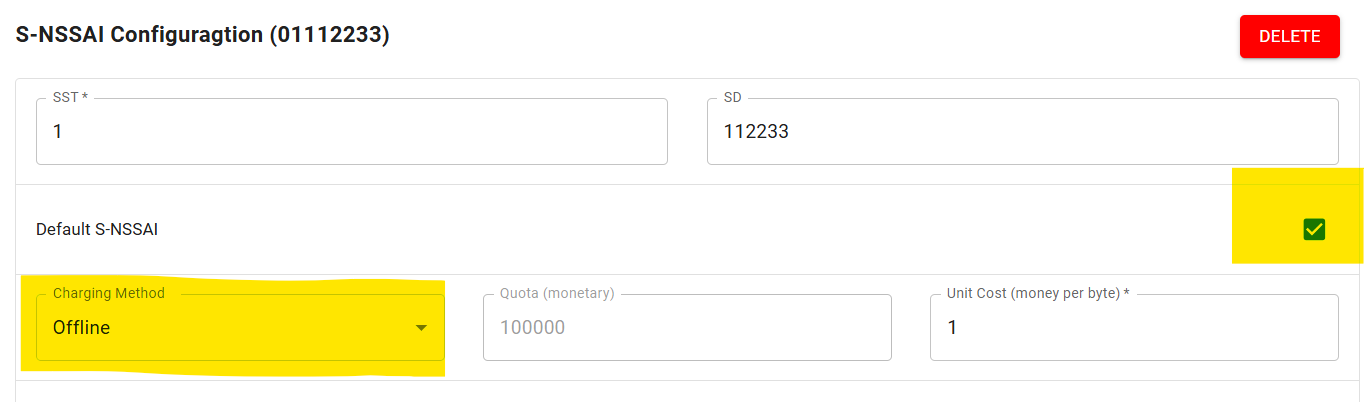

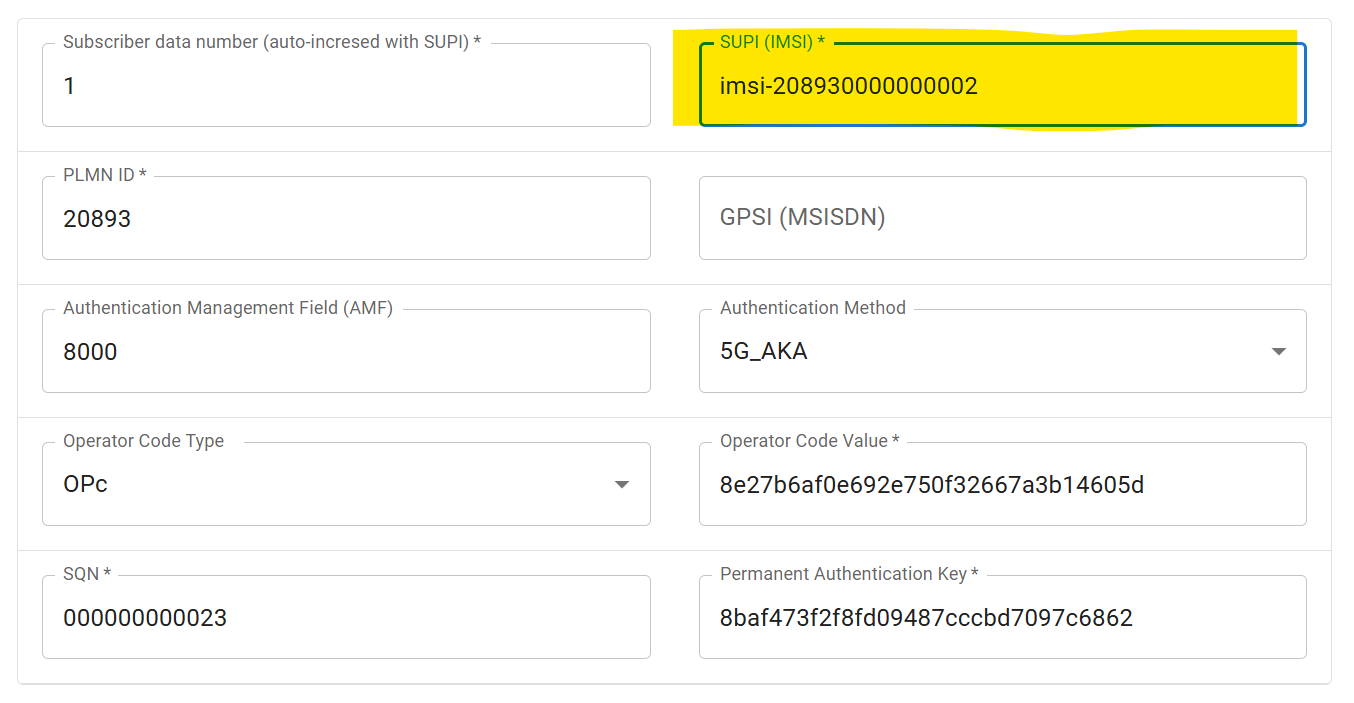

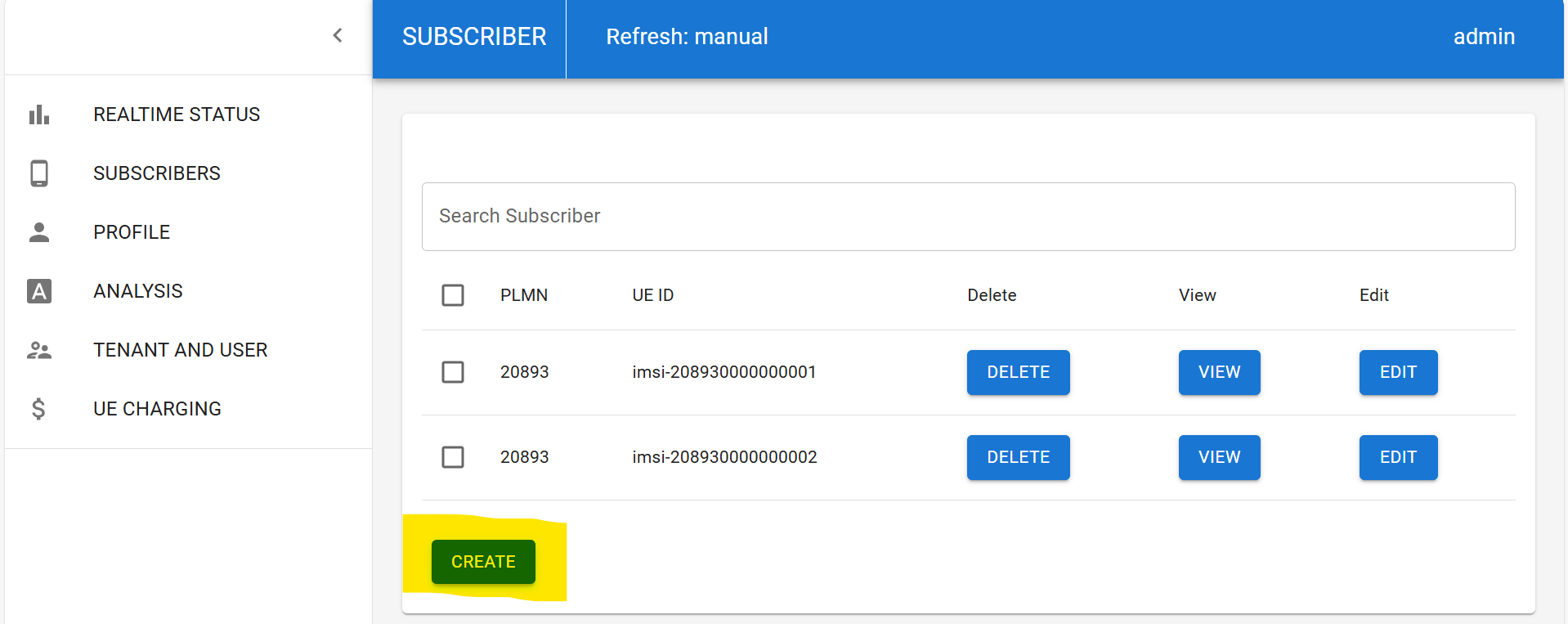

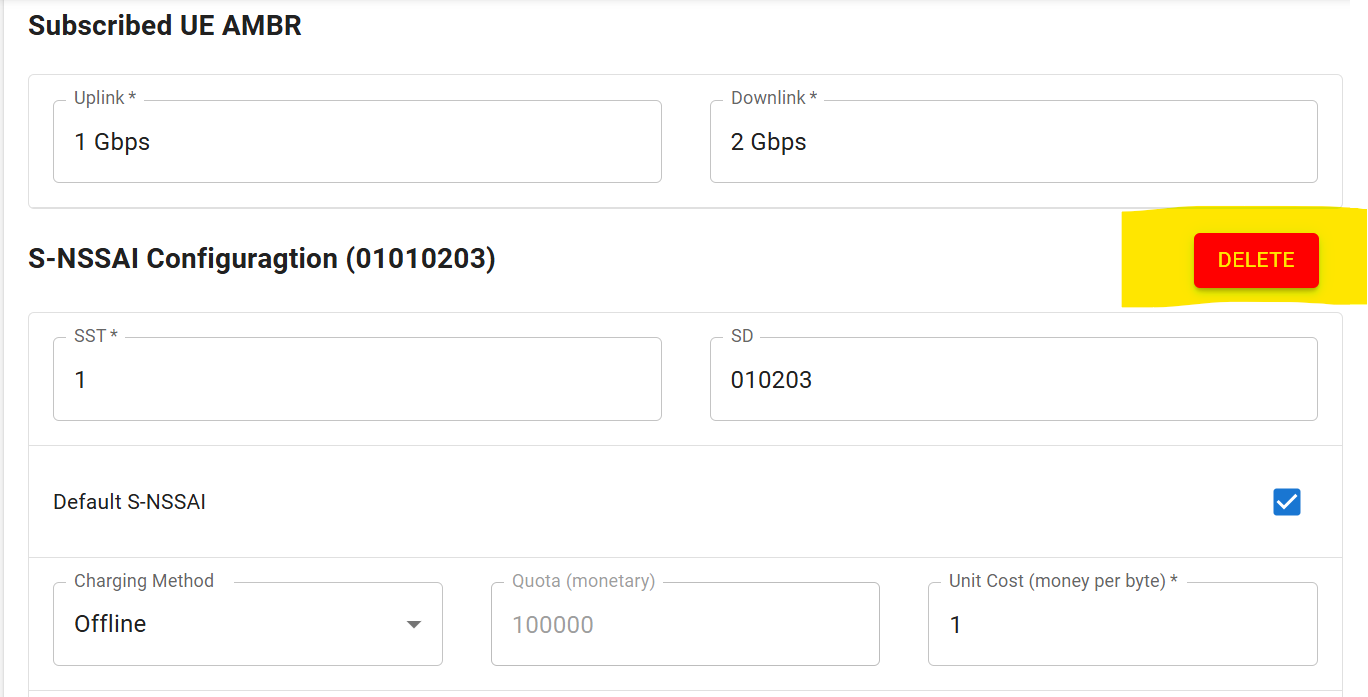

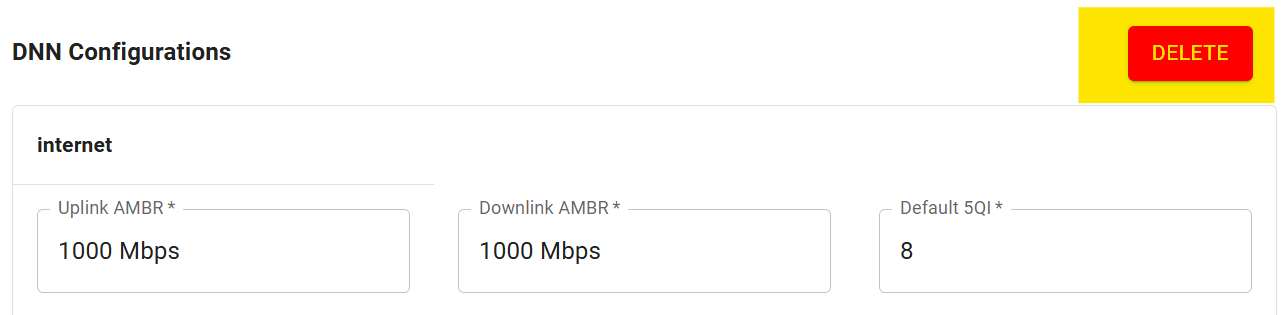

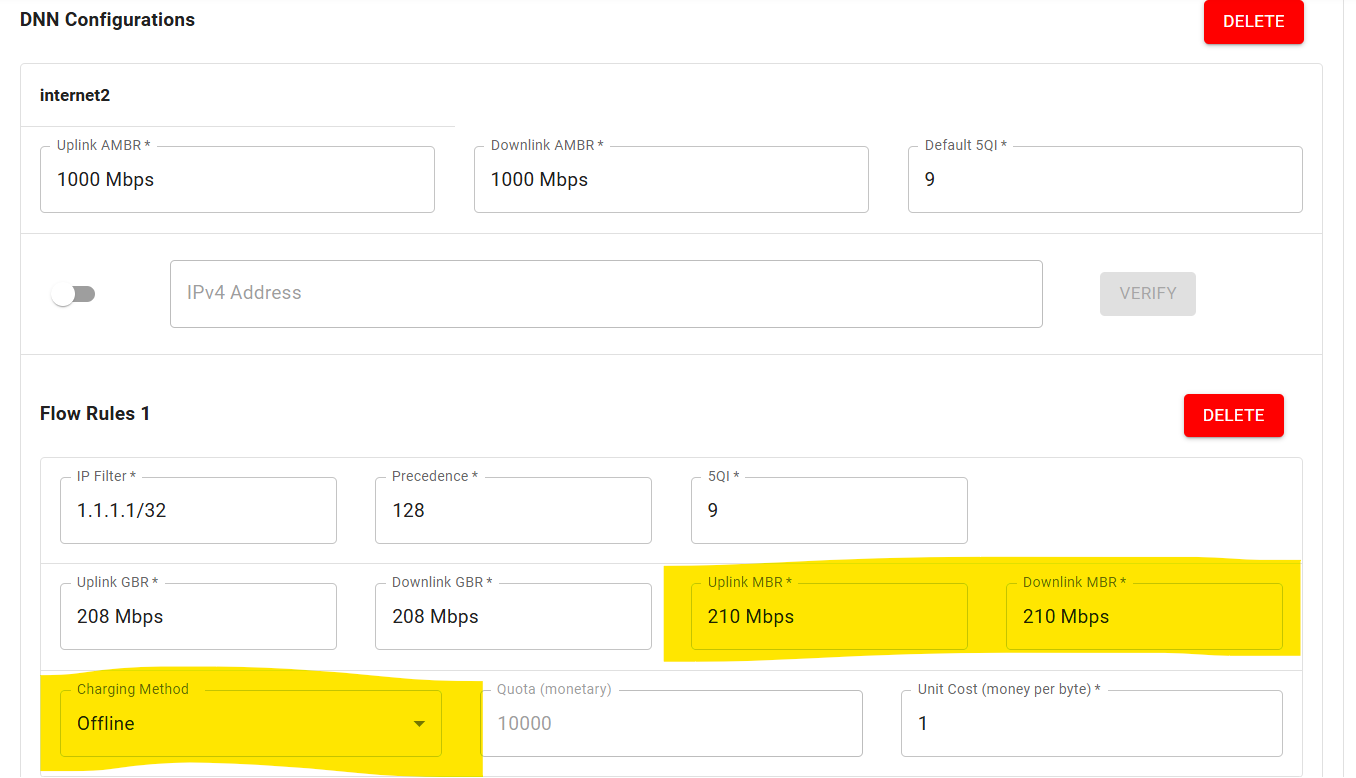

Based on the screenshots from the free5GC v3.4.5 web console below, we will create a network slice named internet2.

When a UE uses the OAI MEC App Service

In the UE VM, edit the /etc/hosts file (e.g., vim /etc/hosts) and add the following line:

[OAI MEP Gateway IP Address] oai-mep.org

Use the local `MEC app` image

The MEC app image often exceeds Docker's pull rate limits, causing the deployment to fail. Therefore, you need to build the image locally and push it to the MicroK8s local registry. You can find a reference for the Dockerfile at this commit: MEC app dockerfile.

Modify the mec-app-1-deployment.yaml to use the image: localhost:32000/mec-app1:v1.

ti_data2.json

The JSON file for UE2 traffic steering.

{
    "afServiceId": "Service2",
    "dnn": "internet2",
    "snssai": {
        "sst": 1,
        "sd": "112233"
    },
    "anyUeInd": true,
    "notificationDestination": "http://af:8000/test123",
    "trafficFilters": [
        {
            "flowId": 2,
            "flowDescriptions": [
                "permit out ip from 10.0.2.107 to [uesubnetip]"
            ]
        }
    ],
    "trafficRoutes": [
        {
            "dnai": "mec2"
        }
    ]
}

Execution Commands and Results

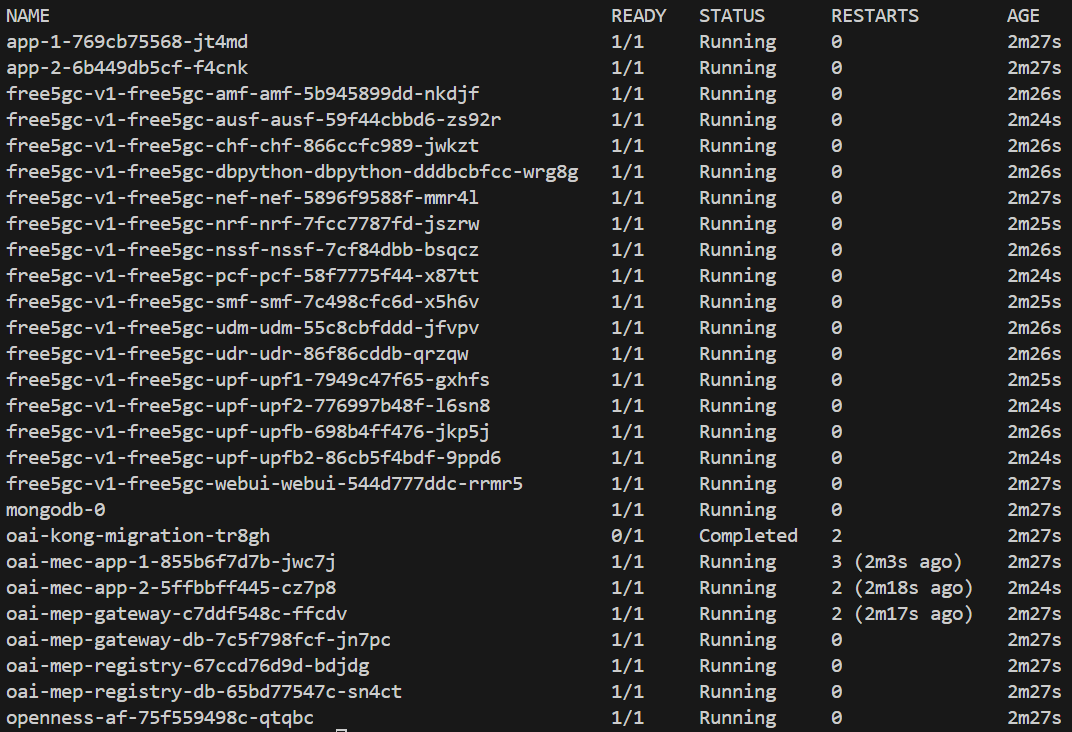

Deployment example

The MEC app should have a 'Running' status. If it restarts repeatedly or gets stuck in a loop, it indicates a problem with the application.

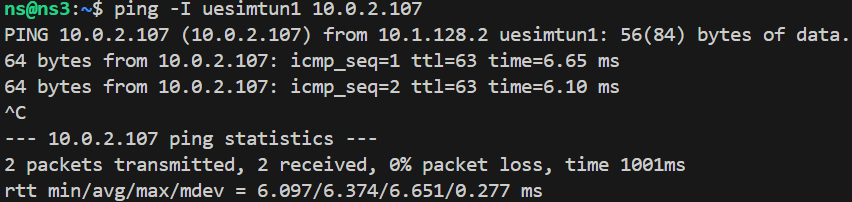

Ping test

curl --interface uesimtun0 [http://oai-mep.org:8002/first_mec_app/v1/second_web_page](http://oai-mep.org:8002/first_mec_app/v1/second_web_page)

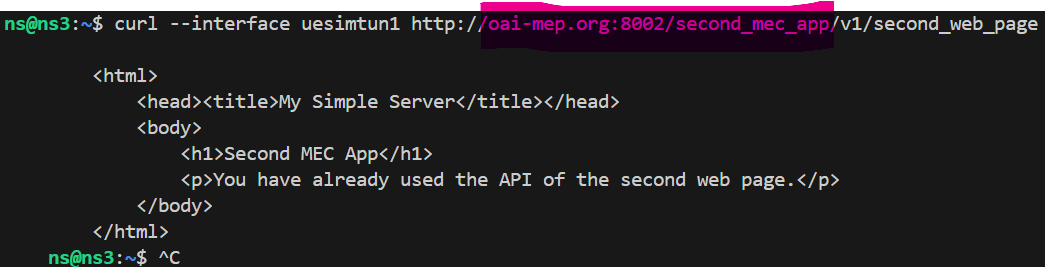

curl --interface uesimtun1 [http://oai-mep.org:8002/second_mec_app/v1/second_web_page](http://oai-mep.org:8002/second_mec_app/v1/second_web_page)

Mec-app E2E test

Before traffic steering
1. Using the MEP's gateway registry system to retrieve the MEC app content.

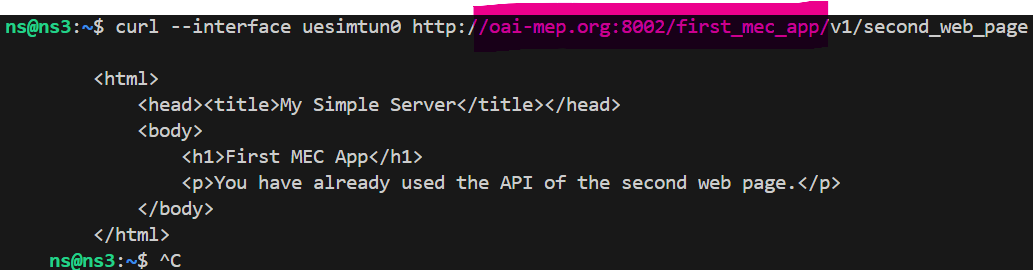

2. curl --interface uesimtun0 [http://oai-mep.org:8002/first_mec_app/v1/second_web_page](http://oai-mep.org:8002/first_mec_app/v1/second_web_page)
3. curl --interface uesimtun1 [http://oai-mep.org:8002/second_mec_app/v1/second_web_page](http://oai-mep.org:8002/second_mec_app/v1/second_web_page)

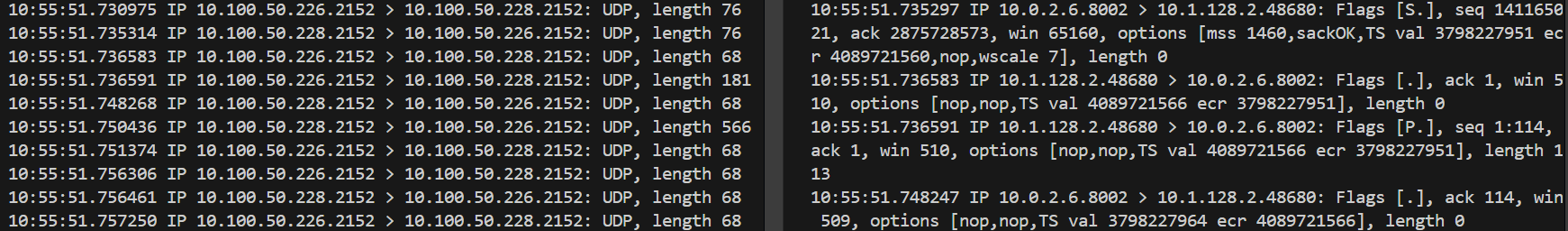

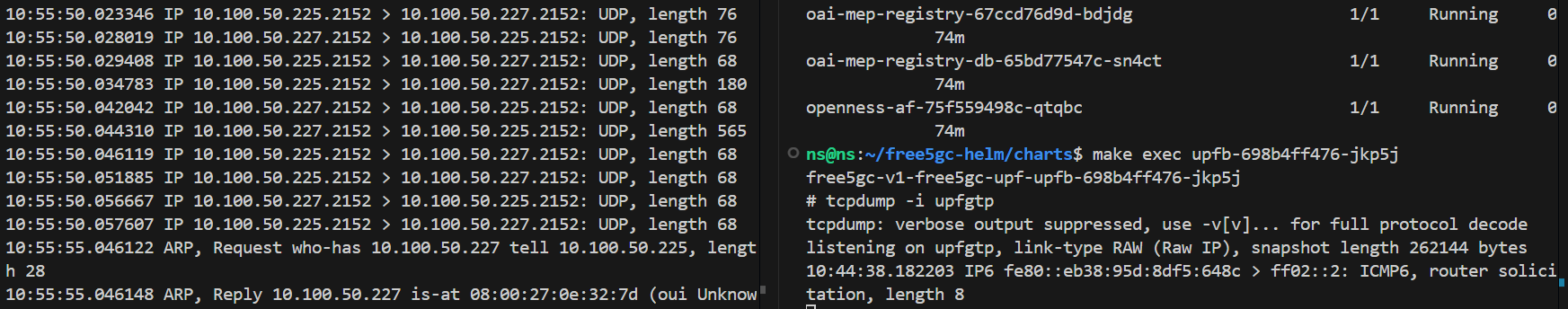

4. The following are the tcpdump results from each UPF. The N9 interface is on the left, and the upfgtp interface is on the right. As you can see, the traffic is still being routed from the branch UPF to the anchor UPF.
  1. upf1
  2. upf2
  3. upfb
  4. upfb2
Traffic steering command
1. curl -X POST -H "Content-Type: application/json" --data @./ti_data.json [http://10.152.183.217:80/3gpp-traffic-influence/v1/af001/subscriptions](http://10.152.183.217/3gpp-traffic-influence/v1/af001/subscriptions)

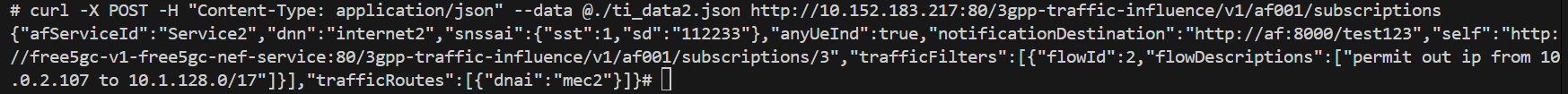

2. curl -X POST -H "Content-Type: application/json" --data @./ti_data2.json [http://10.152.183.217:80/3gpp-traffic-influence/v1/af001/subscriptions](http://10.152.183.217/3gpp-traffic-influence/v1/af001/subscriptions)
After traffic steering
1. curl --interface uesimtun0 [http://10.0.2.105/v1/second_web_page](http://10.0.2.105/v1/second_web_page)

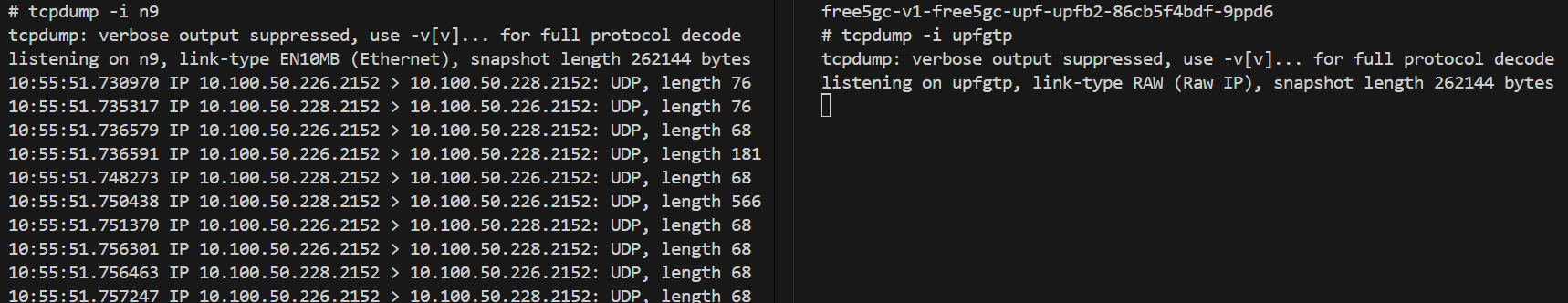

2. The left side corresponds to the N9 interface, and the right side corresponds to the upfgtp interface.

  After traffic steering is applied, the traffic is sent directly out from the upfgtp interface of the branch UPF.
  1. upf1

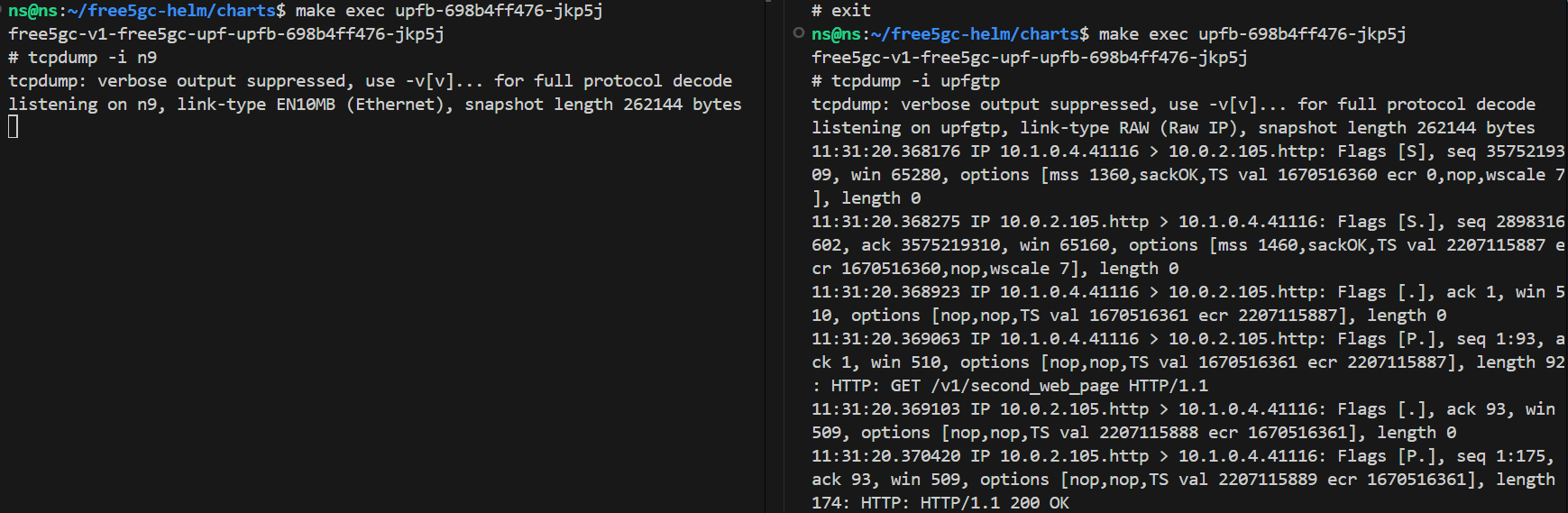

  2. upfb
3. curl --interface uesimtun1 [http://10.0.2.107/v1/second_web_page](http://10.0.2.107/v1/second_web_page)
  1. upf2

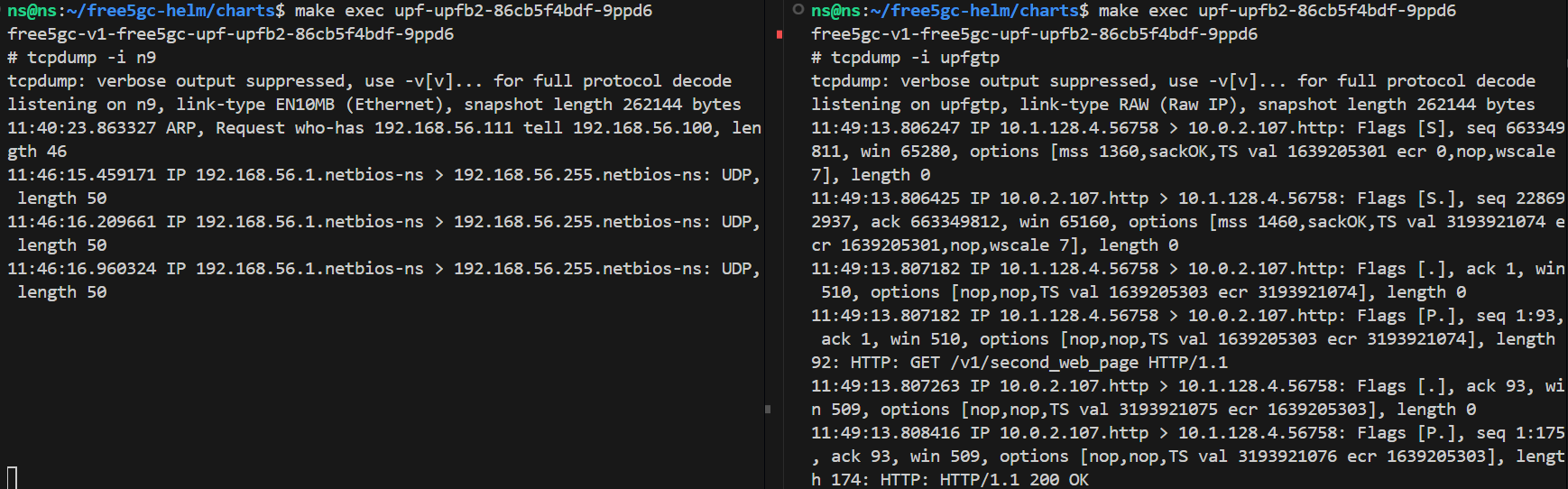

  2. upfb2

Appendix

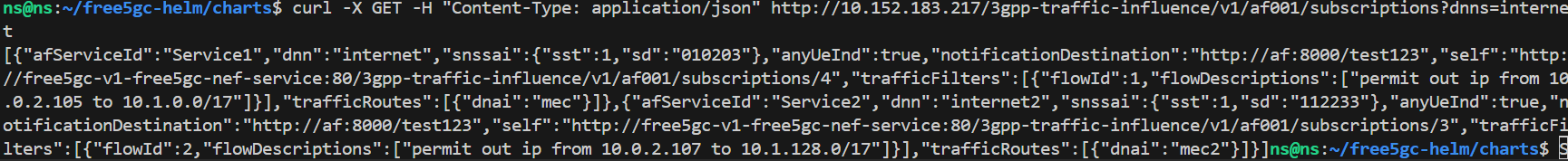

Here are some additional commands you can use to verify if the traffic steering was successful.

UDR

curl -X GET -H "Content-Type: application/json" [http://10.152.183.38/nudr-dr/v1/application-data/influenceData?dnns=internet](http://10.152.183.38/nudr-dr/v1/application-data/influenceData?dnns=internet)

NEF

query command
1. curl -X GET -H "Content-Type: application/json" [http://10.152.183.217/3gpp-traffic-influence/v1/af001/subscriptions?dnns=internet](http://10.152.183.217/3gpp-traffic-influence/v1/af001/subscriptions?dnns=internet)

  self: The final number is the ID you will use for the delete operation.
delete command
1. curl -X DELETE -H "Content-Type: application/json" [http://10.152.183.217/3gpp-traffic-influence/v1/af001/subscriptions/2](http://10.152.183.217/3gpp-traffic-influence/v1/af001/subscriptions/2)

Conclusion

This guide provides a step-by-step walkthrough for implementing advanced 5G features on a free5GC deployment. It demonstrates how to configure OAI-MEC, create multiple network slices, and manage data paths using traffic steering with an Application Function (AF), culminating in a multi-slice, multi-MEC application architecture.

Reference

Files · master · oai / orchestration / oai-mec / oai-mep · GitLab

https://github.com/qawl987/free5gc-helm

About me

Hi, I’m Fang-Kai Ting, a newcomer to 5G and free5GC, and currently conducting research on Network Slicing. Let me know without hesitation if there is any mistake in the article.

Connect with Me

Github: qawl987

Linkedin: www.linkedin.com/in/方凱-丁-a26a7925a

A Practical Guide to Network Slicing and Traffic Steering with free5GC and OAI-MEC

Intro

Lab outline

Lab 1: Installing the OAI-MEC Platform

Architecture

Tools Introduction

OAI-MEC

Implementation and Configuration

Execution Commands and Results

Lab 2: Traffic Steering

Architecture

Tools Introduction

AF

Implementation and Configuration

AF

App

ti_data.json

Execution Commands and Results

AF request (Below command all run inside AF pod)

Ping test

Lab 3: Two slice with two MEC-app with traffic steering

Architecture

Tools Introduction

Network Slicing

Implementation and Configuration

AMF, SMF, UPF config

AMF

SMF

UPF

Create a new network slice

When a UE uses the OAI MEC App Service

Use the local MEC app image

ti_data2.json

Execution Commands and Results

Deployment example

Ping test

Mec-app E2E test

Appendix

Conclusion

Reference

About me

Connect with Me

Use the local `MEC app` image
