NR-DC(New Radio-Dual Connectivity)

Note

Author: Alonza Tu
Date: 2025/06/05

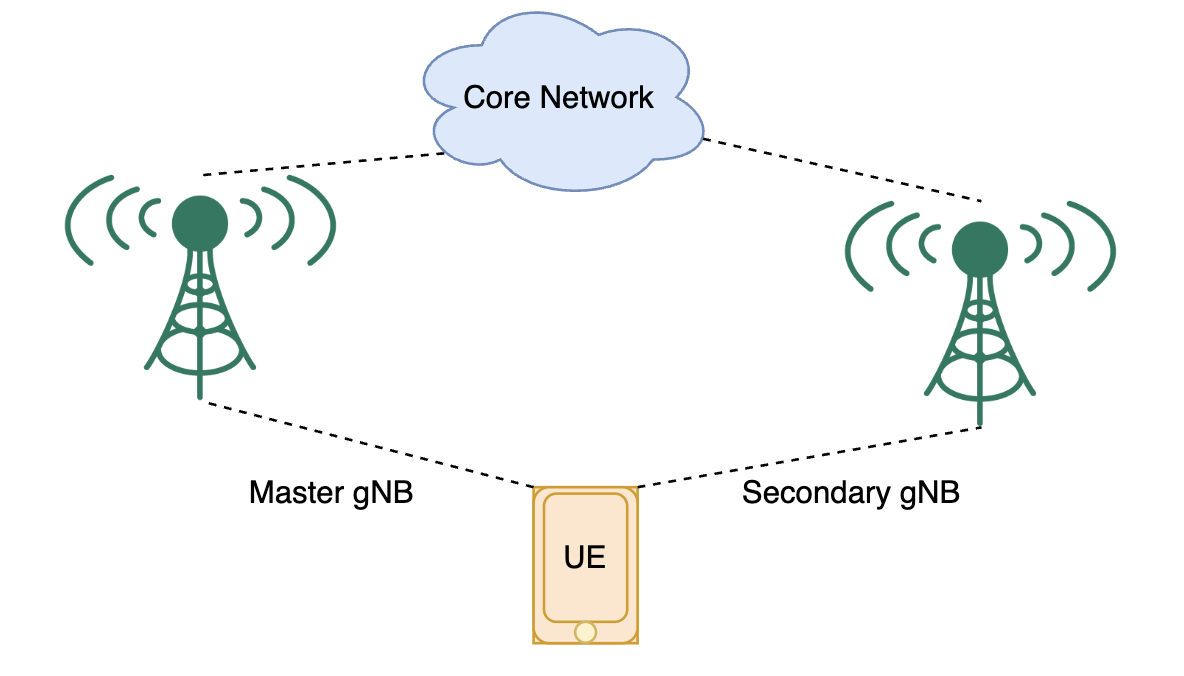

DC

Introduction

Introduction for NR-DC, please refer to: Introducing NR-DC: Dual Connectivity for Next-Gen 5G Capabilities

In the design document, it only concerns the core network side. For RAN and UE, there will prensent where to append the additional tunnel information but without real implementation for actual using.

Types

In real 5G networks, the NR-DC feature can be implemented in two ways:

  1. Static Approach: Two tunnels are established when the gNB and UE's PDU session starts.
  2. Dynamic Approach: After the PDU session is established, the gNB can dynamically offload QoS traffic to the secondary gNB or retrieve the traffic at any time.

Basic Setup

Before discussing the approach methods, we have to do some modification in SMF.

In the current system, there will only be one TUNNEL record in SMContext:

type SMContext struct {
    ...
    LocalULTeid uint32
    LocalDLTeid uint32
    ...
    Tunnel   *UPTunnel
    ...
}

To support the second tunnel creation, there are three new items in SMContext:

type SMContext struct {
    ...
    LocalULTeid uint32
    LocalDLTeid uint32
=>  LocalULTeidForSplitPDUSession uint32
=>  LocalDLTeidForSplitPDUSession uint32
    ...
    Tunnel   *UPTunnel
=>  DCTunnel *UPTunnel
    ...
}

Static Approach

In static approach, TWO TUNNELs will be created during PDU session established.

So, in the procedure of PDU session establishment, we need to do some modification:

According to TS 23.502 4.3.2.2, the steps 11 to 16 will be the PDU session's tunnels configuration procedure:

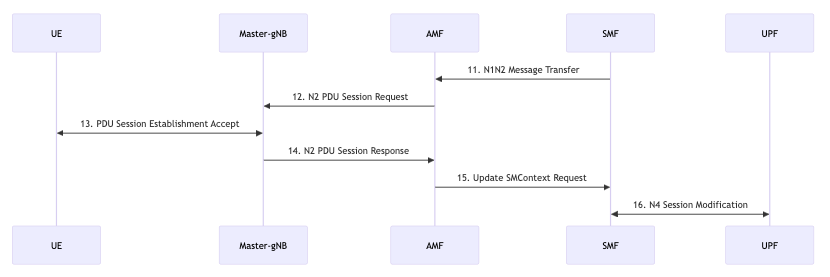

procedure

In the general case, step 11 (N1N2 Message Transfer) contains a single UPLINK TEID and related information, allowing the gNB to determine where to forward the packet.
However, in NR-DC, the SMF should generate TWO UPLINK TEIDs for the two tunnels. Both are stored as ngapType.PDUSessionResourceSetupRequestTransferIEs: one under ngapType.ProtocolIEIDULNGUUPTNLInformation, and the other under ngapType.ProtocolIEIDAdditionalULNGUUPTNLInformation.

These informations will be encapsulated as N2 PDU Session Request by AMF and sent to Master-gNB.

Note

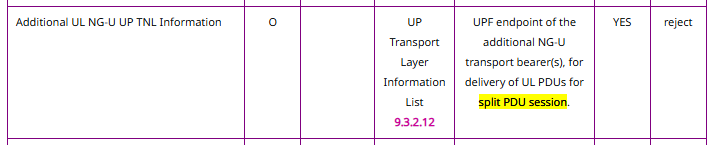

According to TS 38.413 9.4.3.1, AdditionalULNGUUPTNLInformation can carry the secondary UPLINK TEID for the second tunnel using.
38413-9.3.4.1

After receiving these two UPLINK TEIDs, if the Master-gNB is configured as turning on the DC function, it should save the first UPLINK TEID for itself using and send the additional(second) UPLINK TEID to the Secondary-gNB via Xn-interface. Once the Secondary-gNB get the UPLINK TEID, it returns its DOWNLINK TEID back to the Master-gNB.

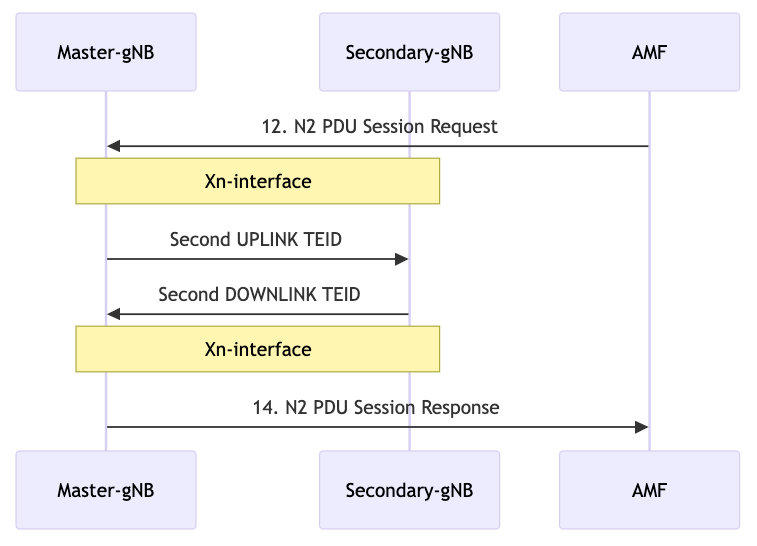

Xn-interface

Finally, Master-gNB will encapsolate these TWO DOWNLINK TEIDs into the data type of ngapType.PDUSessionResourceSetupResponseTransfer, the first one is under DLQosFlowPerTNLInformation and the other is under AdditionalDLQosFlowPerTNLInformation. Then, these IEs will be send back to core network as N2 PDU Session Response in step 14.

Note

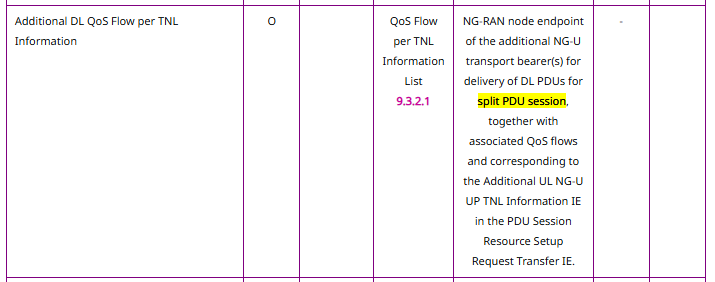

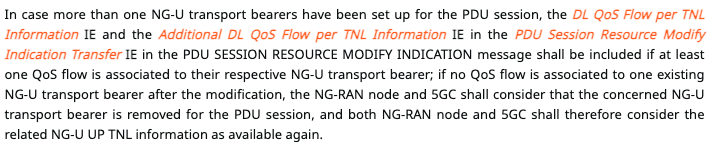

Accordint to TS 38.413 9.3.4.2, AdditionalDLQosFlowPerTNLInformation can carry the secondary DOWNLINK TEID for the second tunnel using.
38413-9.3.4.2

Once SMF get TWO DOWNLINK TEIDs in N2 message, it will set a flag HasNRDCSupport as true in SMContext and store the addition downlink tunnel information. Then, the second tunnel, DCTunnel will be create in the PDU session update procedure. The tunnel's rules will be sent to UPF via step 16(N4Session Modification).

Warning

In current implementation, the Master-gNB will process the default traffics and the Secondary-gNB will process all the specified QoS traffics which are configured through webconsole.

Finally, you can use these tunnel to transfer traffics in efficient.

Dynamic Approach

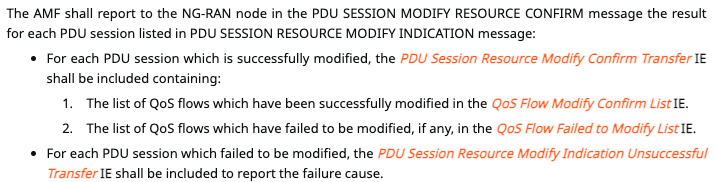

Under development, expected to support dynamic traffic offloading in future SMF releases.
