Deployment of free5GC and free-ran-ue

Note

Author: Che Wei Lin
Date: 2026/09/02

In this demo we will practice:

  • Installing free5GC and free-ran-ue
  • Configuring free5GC, the gNB, and the UE
  • Running free-ran-ue against free5GC

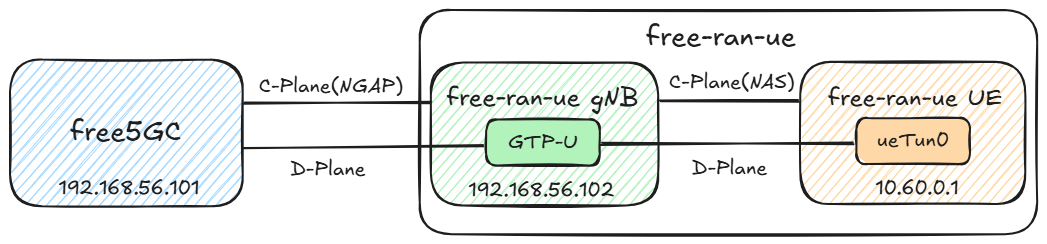

Topology:

1. Install free-ran-ue VM

Repeat the steps of cloning free5gc VM from the base VM, create a new VM for the free-ran-ue simulator:

  • Name the VM free-ran-ue, and create new MAC addresses for all network cards.
  • Make sure the VM has internet access and can log in using SSH.
  • Change the hostname to free-ran-ue.
  • Make the Host-only network interface have static IP address 192.168.56.102.
  • Reboot the free-ran-ue VM, as well as the free5gc VM.
    You can ping 192.168.56.101 from the free-ran-ue VM, and also ping 192.168.56.102 from the free5gc VM.

2. Install free-ran-ue

Perform the following installation steps on the free-ran-ue VM.

Install Go and Required Tools

The version of free-ran-ue used in this guide requires Go 1.26.2. First install the required tools:

sudo apt update
sudo apt install -y git make iproute2 wget

If go version does not show go1.26.2 linux/amd64, install Go 1.26.2:

cd /tmp
wget https://dl.google.com/go/go1.26.2.linux-amd64.tar.gz
sudo rm -rf /usr/local/go
sudo tar -C /usr/local -xzf go1.26.2.linux-amd64.tar.gz

echo 'export GOPATH=$HOME/go' >> ~/.bashrc
echo 'export GOROOT=/usr/local/go' >> ~/.bashrc
echo 'export PATH=$PATH:$GOPATH/bin:$GOROOT/bin' >> ~/.bashrc
source ~/.bashrc

go version

Clone and Build free-ran-ue

  • Clone

    git clone https://github.com/free-ran-ue/free-ran-ue.git

  • Build

    cd free-ran-ue
make

The executable is ~/free-ran-ue/build/free-ran-ue

3. Install free5GC WebConsole

free5GC provides a simple web tool WebConsole to help creating and managing UE registrations to be used by various 5G network functions (NF).

If WebConsole isn't installed yet, please, SSH into free5gc's VM and follow the instructions contained on this section here.

4. Use WebConsole to Add an UE

First activate free5GC then start up the webconsole server at another terminal:

cd ~/free5gc/webconsole
go run server.go

The screen shows the port number :5000 at the end. Open your web browser from your host machine, and enter the URL http://192.168.56.101:5000

  • On the login page, enter username admin and password free5gc.
  • Once logged in, widen the page until you see “Subscribers” on the left-hand side column.
  • Click on the Subscribers tab and then on the Create button
  • Scroll all the way down and click Create again
  • You can view more tutorials through this link.

Note

You have to make sure that the parameters on the webconsole are consistent with the UE settings at free-ran-ue's ue.yaml.

5. Configure free5GC and free-ran-ue

Configure free5GC

In free5gc VM, we need to edit three files:

  • ~/free5gc/config/amfcfg.yaml
  • ~/free5gc/config/smfcfg.yaml
  • ~/free5gc/config/upfcfg.yaml

First SSH into free5gc VM, and change ~/free5gc/config/amfcfg.yaml:

Replace ngapIpList IP from 127.0.0.1 to 192.168.56.101, namely from:

...
  ngapIpList:  # the IP list of N2 interfaces on this AMF
  - 127.0.0.1

into:
...
  ngapIpList:  # the IP list of N2 interfaces on this AMF
  - 192.168.56.101  # 127.0.0.1

Next edit ~/free5gc/config/smfcfg.yaml:

In the entry inside userplaneInformation / upNodes / UPF / interfaces / endpoints, change the IP from 127.0.0.8 to 192.168.56.101, namely from:

...
  interfaces: # Interface list for this UPF
   - interfaceType: N3 # the type of the interface (N3 or N9)
     endpoints: # the IP address of this N3/N9 interface on this UPF
       - 127.0.0.8

into:
...
  interfaces: # Interface list for this UPF
   - interfaceType: N3 # the type of the interface (N3 or N9)
     endpoints: # the IP address of this N3/N9 interface on this UPF
       - 192.168.56.101  # 127.0.0.8

Finally, edit ~/free5gc/config/upfcfg.yaml，and change gtpu IP from 127.0.0.8 into 192.168.56.101, namely from:
...
  gtpu:
    forwarder: gtp5g
    # The IP list of the N3/N9 interfaces on this UPF
    # If there are multiple connection, set addr to 0.0.0.0 or list all the addresses
    ifList:
      - addr: 127.0.0.8
        type: N3

into:
...
  gtpu:
    forwarder: gtp5g
    # The IP list of the N3/N9 interfaces on this UPF
    # If there are multiple connection, set addr to 0.0.0.0 or list all the addresses
    ifList:
      - addr: 192.168.56.101  # 127.0.0.8
        type: N3

Configure the free-ran-ue

In free-ran-ue VM, we need to edit two files:

First edit ~/free-ran-ue/config/gnb.yaml with the following changes, from:

gnb:
  amfN2Ip: "10.0.1.1"
  ranN2Ip: "10.0.1.2"
  upfN3Ip: "10.0.1.1"
  ranN3Ip: "10.0.1.2"

  ranControlPlaneIp: "10.0.2.1"
  ranDataPlaneIp: "10.0.2.1"

...

  api:
    ip: "10.0.1.2"
    port: 40104

into:

gnb:
  amfN2Ip: "192.168.56.101"  # 10.0.1.1
  ranN2Ip: "192.168.56.102"  # 10.0.1.2
  upfN3Ip: "192.168.56.101"  # 10.0.1.1
  ranN3Ip: "192.168.56.102"  # 10.0.1.2

  ranControlPlaneIp: "192.168.56.102"  # 10.0.2.1
  ranDataPlaneIp: "192.168.56.102"  # 10.0.2.1

...

  api:
    ip: "192.168.56.102"  # 10.0.1.2
    port: 40104

Then modify ~/free-ran-ue/config/ue.yaml with the following changes, from:

ue:
  ranControlPlaneIp: "10.0.2.1"
  ranDataPlaneIp: "10.0.2.1"

into:

ue:
  ranControlPlaneIp: "192.168.56.102"  # 10.0.2.1
  ranDataPlaneIp: "192.168.56.102"  # 10.0.2.1

7. Start free5GC and free-ran-ue

Use the following startup order:

free5GC Core -> free-ran-ue gNB -> free-ran-ue UE

  1. SSH into free5gc. If you have rebooted free5gc, remember to run:

    sudo sysctl -w net.ipv4.ip_forward=1
sudo iptables -t nat -A POSTROUTING -o <dn_interface> -j MASQUERADE
sudo iptables -A FORWARD -p tcp -m tcp --tcp-flags SYN,RST SYN -j TCPMSS --set-mss 1400
sudo systemctl stop ufw
sudo systemctl disable ufw # prevents the firewall to wake up after a OS reboot

    Or use reload_host_config.sh from free5GC
    sudo ./<PATH-TO-free5GC>/reload_host_config.sh <dn_interface>
# Example
sudo ./free5gc/reload_host_config.sh enp0s3

  2. Then start the gNB in the first terminal on the free-ran-ue VM:

cd ~/free-ran-ue
./build/free-ran-ue gnb -c config/gnb.yaml
  1. Keep the gNB terminal running. Open a second terminal on the free-ran-ue VM, then start the UE:
cd ~/free-ran-ue
sudo ./build/free-ran-ue ue -c config/ue.yaml

8. Run the Ping Test

On the free-ran-ue VM, send ICMP traffic through ueTun0:

ping -I ueTun0 8.8.8.8 -c 5

If the test succeeds, the source address is from the free5GC 10.60.0.0/16 pool:

PING 8.8.8.8 (8.8.8.8) from 10.60.0.1 ueTun0: 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=116 time=4.01 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=116 time=3.92 ms
...
5 packets transmitted, 5 received, 0% packet loss
